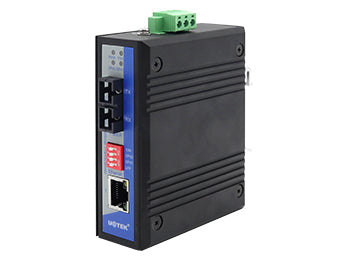

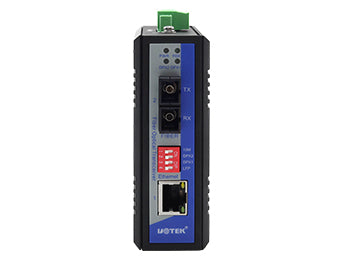

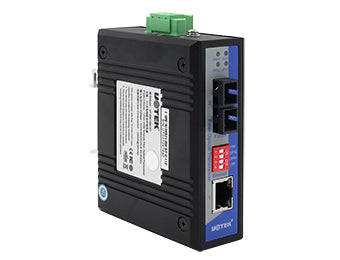

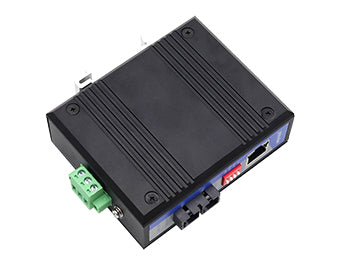

UOTEK UT-2601SM-SC 10/100M 1 Fiber 1 RJ-45 Port Industrial Switch

Regular price $71.87 Sale price $82.00 Unit price per
Tax included. Shipping calculated at checkout.

>>Standards
IEEE 802.3

IEEE 802.3u

 >>Ports

Fiber port: 1x100Base-FX port(with optional SC, ST, FC)
RJ45 port:1x10/100Base-T(X) port, auto negotiation

Dial-up switch: 10M/100M transmission rate option switch, DPX2 optic fiber port working status option switch, DPX1 Ethernet working status option switch, LFP optic fiber and Ethernet port connection status detection switch

LED indicators: PWR, FDX, ACT, LINK, DPX1, DPX2

 >>Power requirement
Input voltage: DC12/24/48V

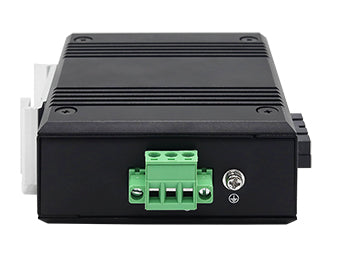

Terminal block: 1 pluggable 3-pin terminal block

Overload protection: Yes

Reverse polarity protection: Yes



>>Mechanical Characteristics
IP rating: IP40

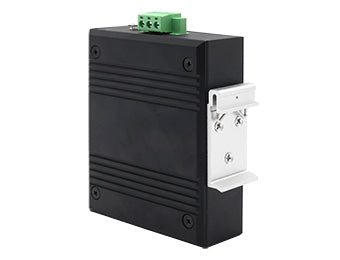

Installation: DIN-Rail
Dimension: 100×80×35mm



>>Environment
Operating temperature: -40~85℃
Storage temperature: -40~85℃
Relative humidity:5~95% (non-condensing)



>>Industrial standards
EMI: FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
