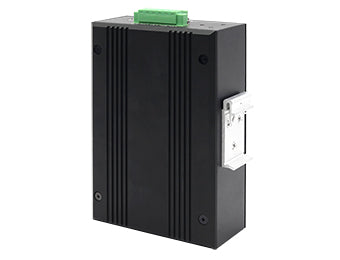

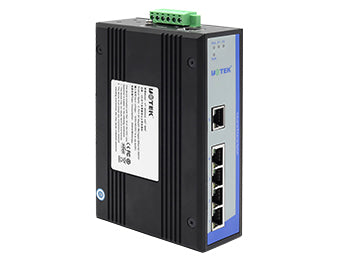

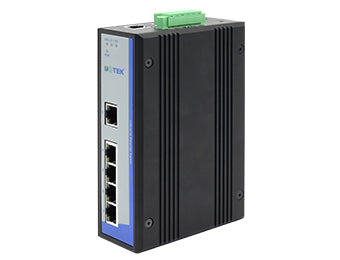

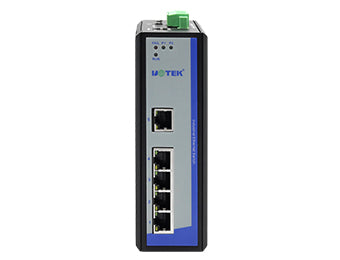

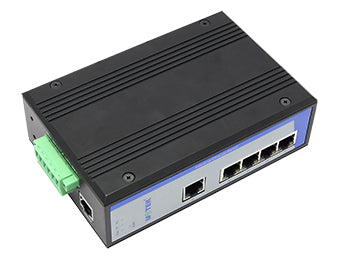

UOTEK UT-62005G Series 5-Port Full Gigabit Managed Ethernet Switch

$239.99 ~~$342.00~~

Tax included. Shipping calculated at checkout.

>>Protocol Standards

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D,IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x.

Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/ MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, RMON, Syslog. RMON, Syslog，Flow control: IEEE802.3x flow control, backpressure flow control

>>Switching Performance

Forwarding rate: 1,488,095pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 1Mb

Backplane bandwidth: 12G

Max. frame length: 10KB

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1,310nm 20/40/60Km

1,550nm 80/100/120Km

Multi-mode: 1,310nm 2Km

>>Interfaces

Fiber port: 1000Base-X(SC/ST/FC/SFP slot)

RJ-45 port: 10/100/1000Base-T

LED indicator :Power indicator, optical port indicator, RJ-45 indicator, alarm indicator, operation indicator.

>>Power Requirement

Voltage input:

with optional 12/24/48VDC(10.8~52.8VDC) Redundant inputs support reverse connection protection

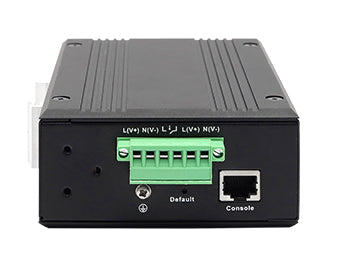

1 pluggable 6-pin terminal block

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail / Wall Mounted

>>Operating Environment

Operating temperature: -40 ~ 85 °C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)

>>Power consumption

Max. input power consumption 250mA@24Vmax

>>Industrial Standards

EMI ：

FCC Part 15，CISPR (EN55022) class A

EMS：

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
