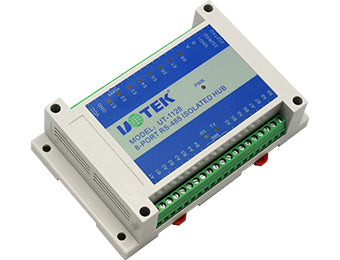

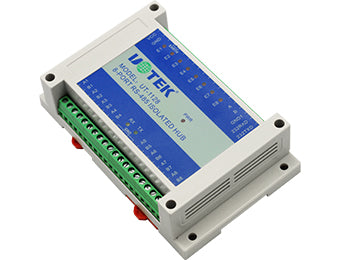

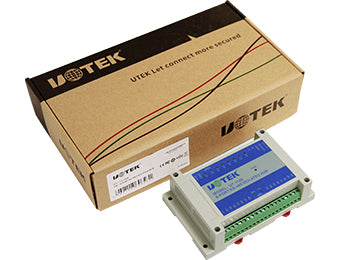

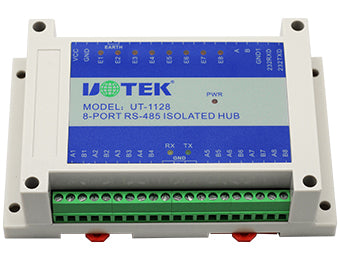

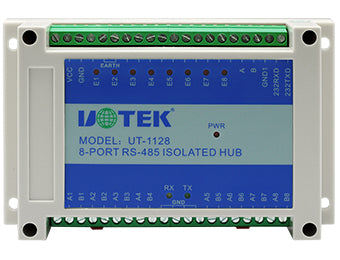

UOTEK UT-1128 8-Port RS-485 Isolated Hub
Regular price
$117.31
Sale price
$134.00
Tax included.
Shipping calculated at checkout.
- Standards: RS-232C, RS-485 EIA/TIA
- Voltage input: DC12-48V 350Ma
- Transmission media: Twisted pair or shielded cable
- Working mode: Asynchronous half-duplex
- Indicators: signal, PWR, TX, RX, E1-E8
- Isolation: non-stop isolated voltage 2,500VRMS 500VDC, DC/DC isolated module
- Transmission rate: 300bps-115.2Kbps
- Each wire 15KV ESD protection for RS-232 ports
- 1,500W lightning and surge protection for RS-485 ports
- 2,000V lightning and surge protection for power supply
- Transmission distance: 0-1.2km (115,200-300bps)
- Dimension: 145x90x40mm
- Working environment: -40 -85℃, relative humidity5%-95%
