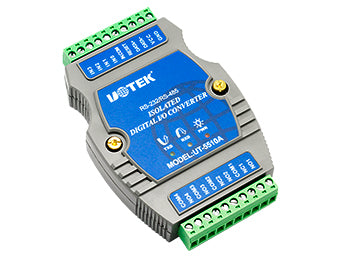

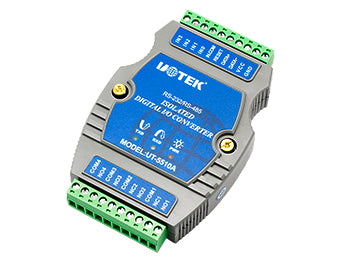

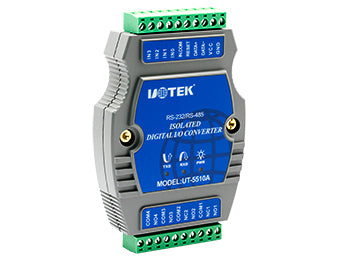

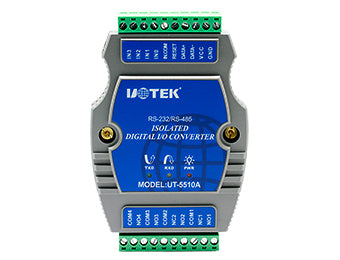

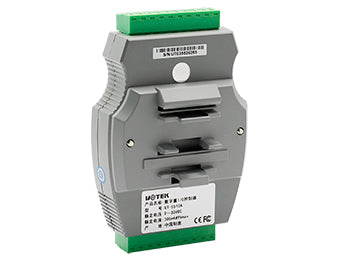

UOTEK UT-5510A Digital 4-channel opto-electronic isolation input, 4-channel relay output I/O controller

$52.12 $60.00
Tax included. Shipping calculated at checkout.

● Four-channel opto-electronic isolation voltage input & four-channel opto- isolated relay output

● Operating power: 9-30VDC/350mA

● Isolated voltage: 2500V rms

● Isolated voltage input：0 ~ 24V

● Max. contact capacity (DC): 110VDC 0.3A 30VDC 1A

● Max. contact capacity (AC): 5-250VAC(47-63Hz)

● Interface: 10-bits terminal block

● Dimension: 120mm×80mm×25mm

● Operating temperature: -40℃ to +85℃,

● Relative Humidity：5% ~ 95%RH，non-condensation

● Work with all communication software, plug-and-play

● Support DOS/WIN95/WIN98/WIN2000/NT/XP
