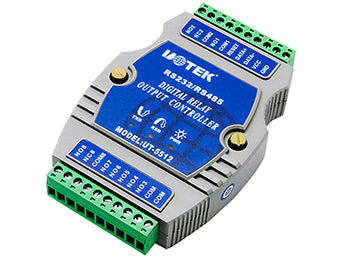

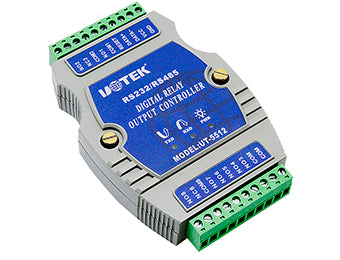

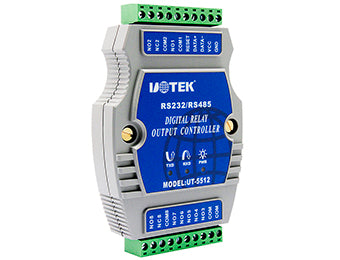

UOTEK UT-5512 Digital 8-channel relay output controller
Regular price
$58.85
Sale price
$67.00
Tax included.
Shipping calculated at checkout.
- GND: Common ground
- VCC: DC9--30V power input operating current: 350mA
- DATA-: communication interface (RS232: data receiving; RS485: RS485-)
- DATA+: communication interface (RS232: data transmission; RS485: RS485+)
- RESET: reset
- NO1, NO2, NO3, NO4, NO5, NO6, NO7, NO8, : relay normally open terminal
- NC2, NC8: relay normally closed terminal
- COM, COM1, COM2: Relay common terminal
- Relay contact AC voltage max:125V; current max:500mA
- Relay contact DC voltage max:30V; current max:1A
