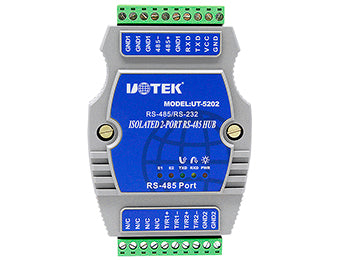

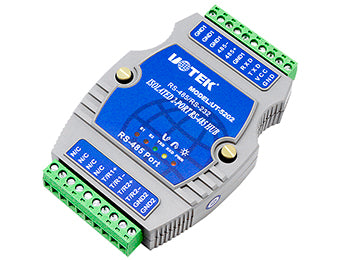

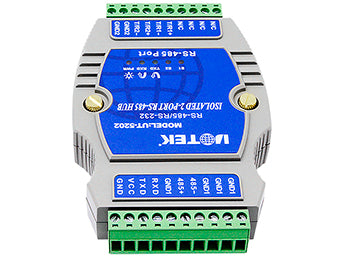

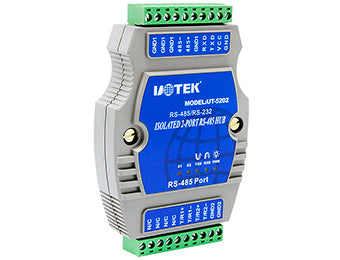

UOTEK UT-5202 DIN-Rail Industrial RS-232/RS-485 to 2 Ports RS-485 Hub
Regular price
$46.98
Sale price
$54.00
Tax included.
Shipping calculated at checkout.
● Standards: RS-232C、RS-485 EIA/TIA
● Interface: RS-232C: 10-pin terminal block
RS-485: 10-pin terminal block
● Transmission media: Twisted-pair or shielded wire
● Working mode: Asynchronous half-duplex
● Operating power: 9-30VDC/150mA
● LEDs for indicating PWR TXD, RXD, and E1-E2 activity
● Isolation: 2,500VRMS 500 DC continuous isolated vlotage, DC/DC module
● Baud rate: 300bps-115.2kbps
● Protection: RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection
● Transmission distance: 0-5,000m (115,200-300bps)
● Dimension: 120×80×25mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Interface: RS-232C: 10-pin terminal block
RS-485: 10-pin terminal block
● Transmission media: Twisted-pair or shielded wire
● Working mode: Asynchronous half-duplex
● Operating power: 9-30VDC/150mA
● LEDs for indicating PWR TXD, RXD, and E1-E2 activity
● Isolation: 2,500VRMS 500 DC continuous isolated vlotage, DC/DC module
● Baud rate: 300bps-115.2kbps
● Protection: RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection
● Transmission distance: 0-5,000m (115,200-300bps)
● Dimension: 120×80×25mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
