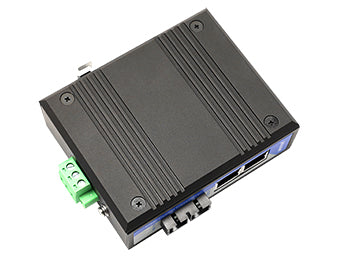

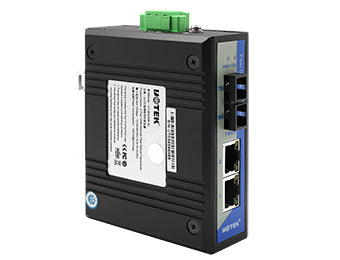

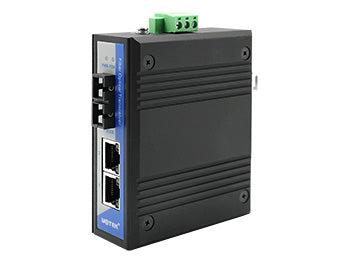

UOTEK UT-2602 Series Industrial 10/100M 2 Ethernet Ports 1 Optic Fiber Port Switch
>>Standards
IEEE 802.3
IEEE 802.3u
>>Ports

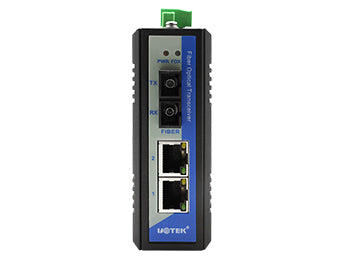

Fiber port: 1x 100Base-FX port(with optional SC, ST, FC & LC)
RJ45 port: 2x 10/100Base-T(X) port, auto detection, full/half-duplex, auto MDI/MDI-X
LED indicators: PWR, FDX
>>Power requirement
Input voltage: DC12/24/48V

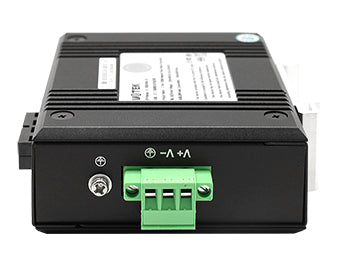

Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Yes
Reverse polarity protection: Yes
>>Mechanical characteristics
IP rating: IP40

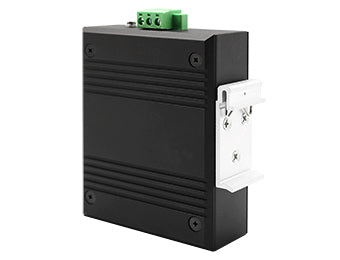

Installation: DIN-Rail
Dimension(W x H x D): 100mm×35mm×80.5mm
>>Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity: 5~95% (non-condensing)
>>Industrial standards
EMI: FCC Part 15 Subpart B classA,EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
