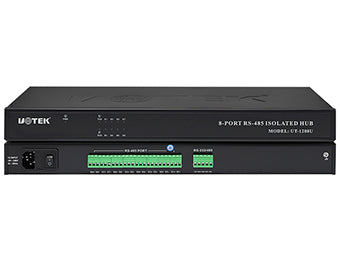

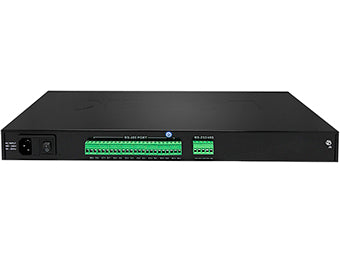

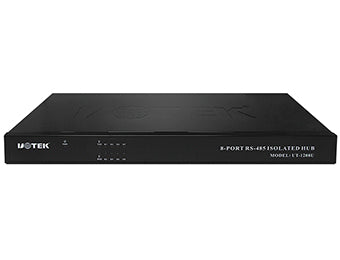

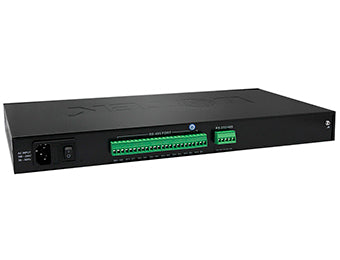

UOTEK UT-1208U Industrial Rackmount RS-232/RS-485 to 8 Ports RS-485 Hub
Regular price
$151.00
Sale price
$172.00
Tax included.
Shipping calculated at checkout.
● Standards: RS-232/485 EIA/TIA
● Interface: RS-232C 5-pin terminal block,(1-3 pin) RS-485 5-pin terminal block(4-5pin)
● Transmission media: Twisted-pair or shielded wire
● Operating mode: asynchronous half-duplex
● Power: AC100-240V 50/60Hz
● LED for indicating PWR, TXD, RXD, E1-E8 activity
● Isolation: 2,500VRMS 500VDC continuous isolated voltage, DC/DC isolated module
● Baud rate: 300-115.2Kbps
● Protection: RS-232 port ±15KV ESD protection, RS-485 each port 1,500W lightning surge protection
● Transmission distance: 0-5KM(115,200-300bps)
● Dimension: 440mm×201mm×44mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Interface: RS-232C 5-pin terminal block,(1-3 pin) RS-485 5-pin terminal block(4-5pin)
● Transmission media: Twisted-pair or shielded wire
● Operating mode: asynchronous half-duplex
● Power: AC100-240V 50/60Hz
● LED for indicating PWR, TXD, RXD, E1-E8 activity
● Isolation: 2,500VRMS 500VDC continuous isolated voltage, DC/DC isolated module
● Baud rate: 300-115.2Kbps
● Protection: RS-232 port ±15KV ESD protection, RS-485 each port 1,500W lightning surge protection
● Transmission distance: 0-5KM(115,200-300bps)
● Dimension: 440mm×201mm×44mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
