UTEK Technology

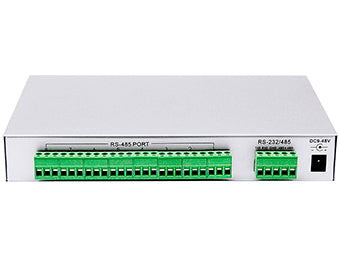

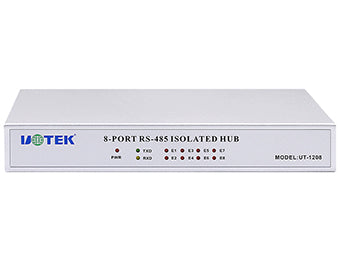

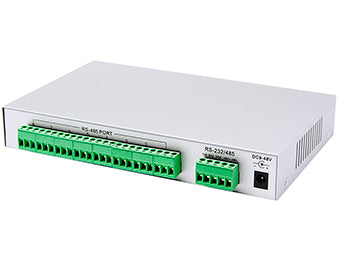

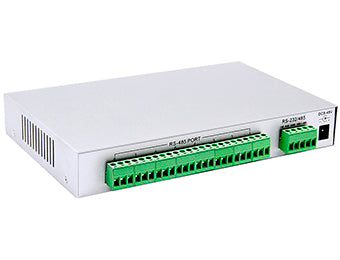

UOTEK UT-1208 Industrial RS-232/RS-485 to 8 Ports RS-485 Hub
Regular price
$112.41
Sale price
$128.00
Tax included.
Shipping calculated at checkout.
● Standards: RS-232/485 EIA/TIA
● Automatic transmit/receive data, no need external flow control signal(RTS), real 3-wire(TXD, RXD, GND) communication
● Input interface: RS-232C & RS-485
● Output interface: 8 ports RS-485
● Baud rate: 300-115.2Kbps
● Each RS-485 port can connect with 128 sets device
● Transmission distance: 5,000m(9,600bps)
● LED for indicating PWR, TXD, RXD, E1-E8 activity
● Operating mode: asynchronous half-duplex
● Optoelectronic isolation(2,500VRMS 500VDC continuous isolated voltage), DC/DC isolated module, RS-485 each wire 600W lightning, surge ±15KV ESD protection
● Connector: Terminal block
● Dimension: 210mm×130mm×32mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Plug & play
● Automatic transmit/receive data, no need external flow control signal(RTS), real 3-wire(TXD, RXD, GND) communication
● Input interface: RS-232C & RS-485
● Output interface: 8 ports RS-485
● Baud rate: 300-115.2Kbps
● Each RS-485 port can connect with 128 sets device
● Transmission distance: 5,000m(9,600bps)
● LED for indicating PWR, TXD, RXD, E1-E8 activity
● Operating mode: asynchronous half-duplex
● Optoelectronic isolation(2,500VRMS 500VDC continuous isolated voltage), DC/DC isolated module, RS-485 each wire 600W lightning, surge ±15KV ESD protection
● Connector: Terminal block
● Dimension: 210mm×130mm×32mm
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Plug & play
