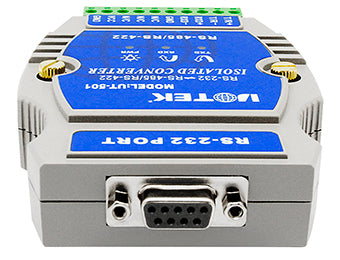

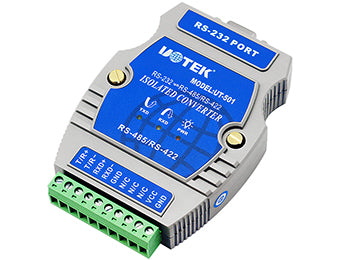

UOTEK UT-501 Industrial RS-232 to RS-485/422 Port-Powered Converter with Isolation

• Standards: RS-232C/ RS-485, /RS-422 EIA/TIA
• Connector: RS-232 DB9 female input;

                RS-422/485 10 bits terminal block output

• Port protect: RS-232 ±15KV ESD protection;

             RS-422/485 600W surge protection

• Isolation: isolated voltage 2,500VRMS 500VDC
• Working mode:  asynchronous half-duplex or full-duplex
• LEDs for indicating PWR TXD, and RXD activity
• Transmission media: twisted-pair or shielded cable
• Baudrate: 300-115.2K bps
• Dimension: 117mm×80mm×25mm
• Operating temperature: -40℃ to 85℃
• Relative humidity: 5% to 95 %( Non-condensing)
• Transmission distance: 0-1,200m（115,200bps-9,600bps）
