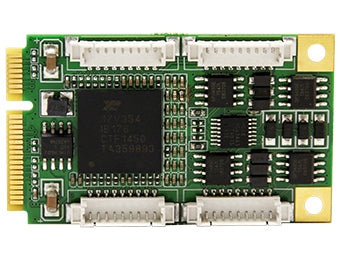

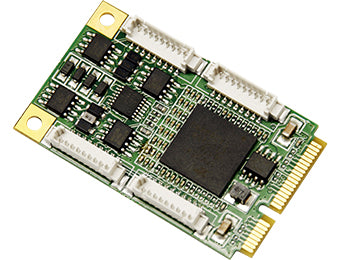

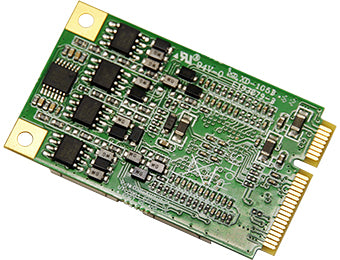

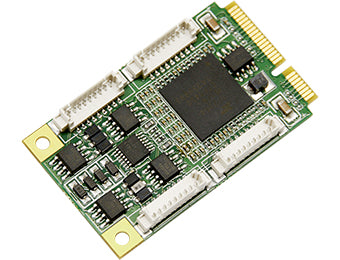

UOTEK UT-7884 Mini PCI-E to 4-port RS-485/422 high-speed serial card
Regular price
$50.72
Sale price
$58.00
Tax included.
Shipping calculated at checkout.
• Hardware Interface

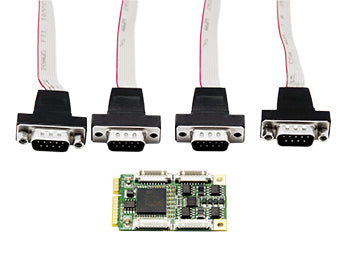

• Connection Type: 4 x 1.25T-9AB sockets
• BUS: X1 2.5Gbps PCI Express
• Signal
RS-422: T/R+, T/R-, RXD+, RXD-, GND
RS-485: Data+(A) Data-(B) GND
• Transmission rate: 300bps-921.6kbps
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity bits: None, Even, odd, Space, Mark
• Stream control: RTS/CTS, XON/XOFF
• Operating temperature: -40～85°C
• Support system: Win2000/XP/Vista/Win7/8/8.1/10/NT4.0/CE 4.2/5.0/6.0/Vxworks/ Linux 2.4.x/2.6.x
