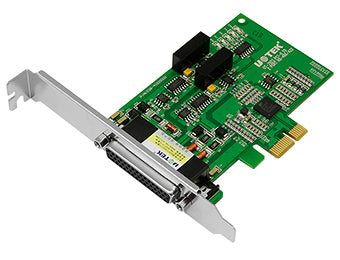

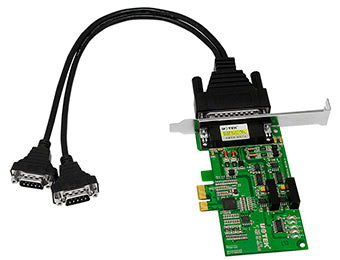

UOTEK UT-792I PCI-E to 2 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-792I PCI-E to 2 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-792I PCI-E to 2 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-792I PCI-E to 2 Ports RS-485/422 High Speed Serial Adapter with Isolation
UTEK Technology

UOTEK UT-792I PCI-E to 2 Ports RS-485/422 High Speed Serial Adapter with Isolation

Regular price $55.99 Sale price $76.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Connector: DR44 female x1
  • Bus: X1 2.5Gbps PCI Express
  • Signal: RS-422:T/R+, T/R-, RXD+, RXD-, GND

        RS-485: Data+(A), Data-(B), GND

  • Transmission rate: 300bps-921.6Kbps
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Check bits: None, Even, odd, Space, Mark
  • Flow control: RTS/CTS  XON/XOFF
  • Operating temperature: -40℃~85℃
  • Isolation: continuous 2,500Vnms 500VDC isolated voltage, specialized DC/DC module
  • Interface protection: RS-422 & RS-485 provides with 2KV lightning surge, ±15KV ESD protection each line
  • Transmission distance: 1.2km for RS-485/422
  • System: Win2000/XP/Vista/Win7/8/8.1/NT4.0/CE 4.2/5.0/6.0/ Vxworks/Linux 2.4.x/2.6.x
