UTEK Technology

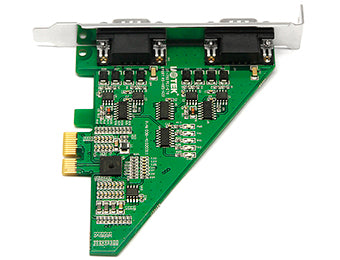

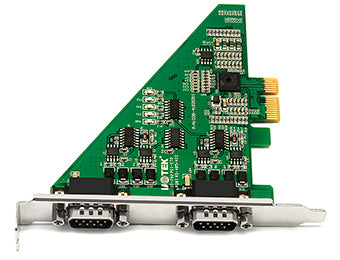

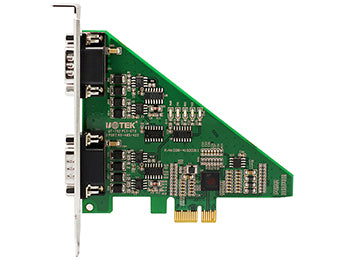

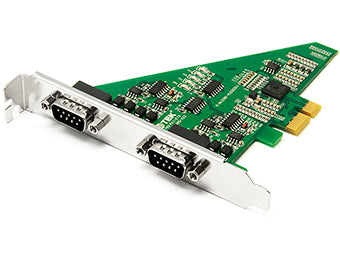

UOTEK UT-792 PCI-E to 2 Ports RS-485/422 Serial Adapter
Regular price
$39.51
Sale price
$45.00
Tax included.
Shipping calculated at checkout.
● Connector: DB9 male x 2
● BUS：X1 2.5Gbps PCI Express
● Signal
RS-422: T/R+, T/R-, RXD+, RXD-, GND
RS-485: Data+(A) Data-(B) GND
● Baudrate: 300Bps-921.6Kbps
● Digit bit: 5, 6, 7, 8
● Stop bit: 1, 1.5, 2
● Check bit: None, Even, odd, Space, Mark
● Flow control: RTS/CTS XON/XOFF
● Operating temperature: -40℃～85℃
● Port protection: RS-422/485 each line 600W surge protection, ±15KV ESD protection
● Transmission distance: RS-485/422 1.2Km
● Supports Win10/Win2000/XP/Vista/Win7/8/8.1/NT4.0/CE 4.2/5.0/6.0/Vxworks/Linux 2.4.x/2.6.x
● BUS：X1 2.5Gbps PCI Express
● Signal
RS-422: T/R+, T/R-, RXD+, RXD-, GND
RS-485: Data+(A) Data-(B) GND
● Baudrate: 300Bps-921.6Kbps
● Digit bit: 5, 6, 7, 8
● Stop bit: 1, 1.5, 2
● Check bit: None, Even, odd, Space, Mark
● Flow control: RTS/CTS XON/XOFF
● Operating temperature: -40℃～85℃
● Port protection: RS-422/485 each line 600W surge protection, ±15KV ESD protection
● Transmission distance: RS-485/422 1.2Km
● Supports Win10/Win2000/XP/Vista/Win7/8/8.1/NT4.0/CE 4.2/5.0/6.0/Vxworks/Linux 2.4.x/2.6.x
