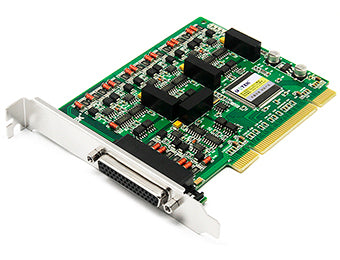

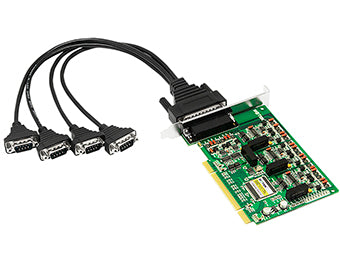

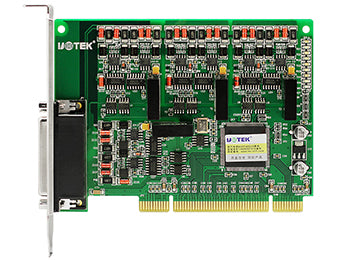

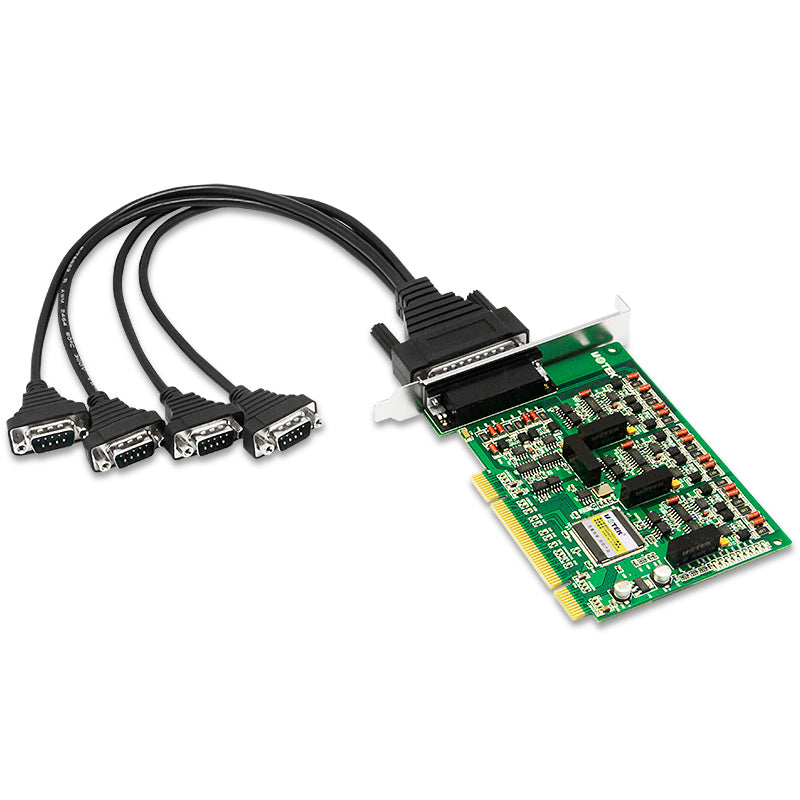

UOTEK UT-724I PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-724I PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-724I PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation
UOTEK UT-724I PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation
UTEK Technology

UOTEK UT-724I PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation

$94.16 $107.00
Tax included. Shipping calculated at checkout.
  • Connector: DR44 female x1
  • BUS: 32 bits universal PCI
  • Signal: RS-422：T/R+, T/R-, RXD+, RXD-, GND

        RS-485：Data+(A)   Data-(B) GND

  • Transmission rate: 300bps-921.6Kbps
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Check bits: None, Even, Odd, Space, Mark
  • Flow control: RTS/CTS XON/XOFF
  • Operating temperature: -40～85℃
  • Optical isolation: 2,500Vrms isolated voltage, 500DC continuous specialized DC/DC module
  • Interface protection: RS-422 & RS-485 provides with 600W surge, ±15KV ESD protection each line
