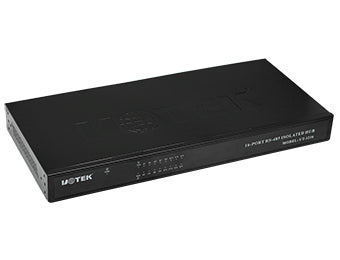

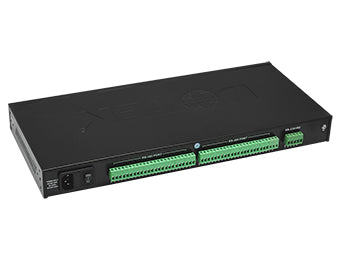

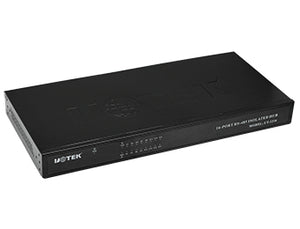

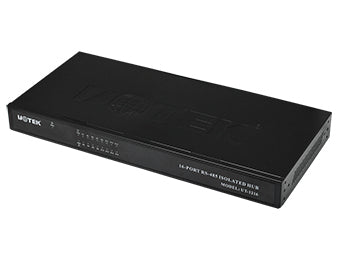

UOTEK UT-1216 RS-232/485 to 16-port RS-485 HUB

• Interface features: interface compatible with EIA/TIA RS-232C, RS-485 standard
• Electrical interface: RS-232C interface is 5PIN terminal 1-3 pins

                    RS-485 interface is 5PIN terminal 4-5 pins

• Transmission medium: twisted wire or shielded wire
• Working mode: Asynchronous half-duplex
• Operating power: AC100 ~ 240V 50/60Hz
• Signal indication: 19 PWR, TXD,RXD, E1-E16
• Isolation: Isolation voltage 2500VRMS 500VDC continuous, DC/DC isolation module
• Transmission rate: 300bps-115.2Kbps
