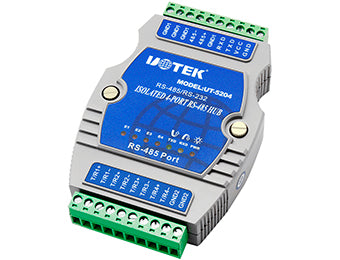

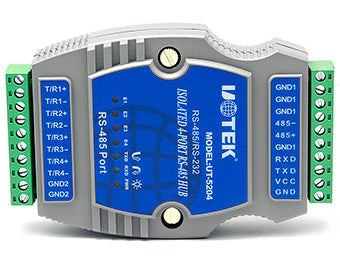

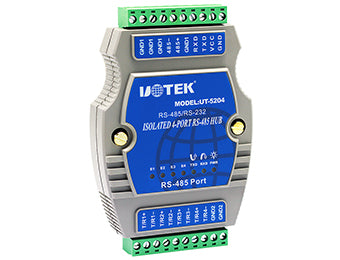

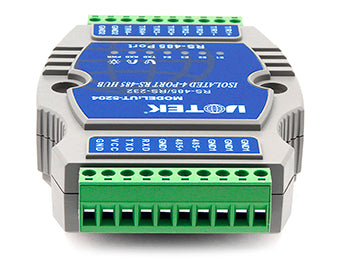

UOTEK UT-5204 RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail)

• Standards: RS-232C、RS-485 EIA/TIA
• Interface: RS-232C: 10-pin terminal block

                RS-485: 10-pin terminal block

• Transmission media: Twisted-pair or shielded cable
• Working mode: Asynchronous half-duplex
• Operating power: 9-30VDC/350mA
• LEDs for indicating PWR TXD, RXD, and E1-E4 activity
• Isolated voltage 2,500VRMS 500 DC, DC/DC module
• Baudrate: 300bps-115.2kbps
• Protection level: RS-232 ±15KV ESD protection
• RS-485 provides each wire with 600W lightning, surge protection
• Transmission distance: 0-5,000m (115,200-300bps)
• Dimension: 120×80×25mm
• Operating temperature: -40℃ to 85℃
• Relative humidity: 5% to 95%
• Work with all communication software, plug & play
