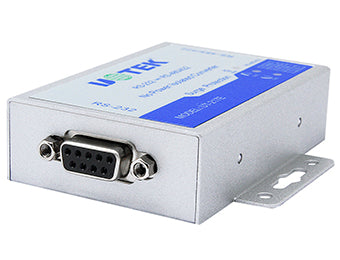

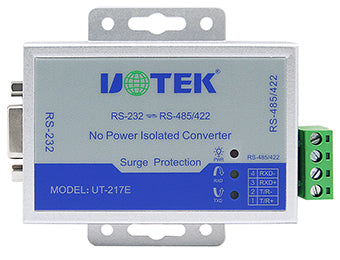

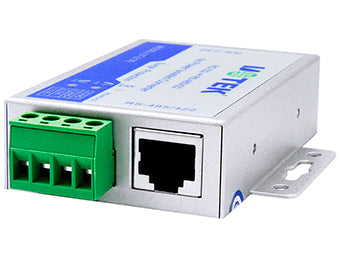

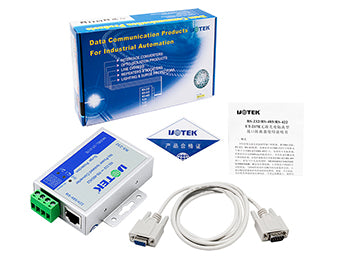

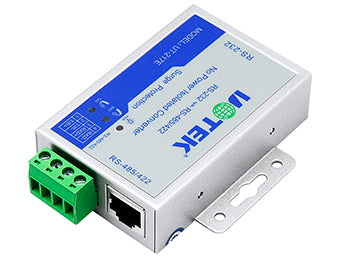

UOTEK UT-217E RS-232 to RS-485/422 Port-Powered Converter with Isolation

• Standards: RS-232, RS-485 TIA/EIA
• Automatic data direction control, no need external flow control signal (RTS)
• Baudrate: 300ps-115.2kbps
• Allows connecting 32 sets RS-485 or RS-422 device
• Transmission Distance: 1,200m (9,600bps)
• Power & data flow indicator, failure detection
• Working mode: asynchronous half-duplex (RS-485) or full-duplex (RS-422)
• Isolate voltage: 2.5KVrms/500VDC insulative isolation;
• RS-485/422 provides with 600W lightning protection each line
• Connector: RS-232 DB9 female;

                   RS-485/422 4 bits terminal block & RJ-45

• Transmission media: twisted-pair or shielded cable
• Dimension: 79mm×74mm×22mm
• Operating temperature: -25 ~ 70℃
• Relative humidity: 5 ~ 95%
• Works with all communication software, plug & play
• Supports all operating system
