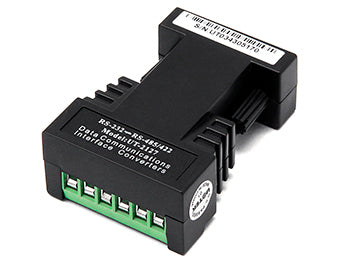

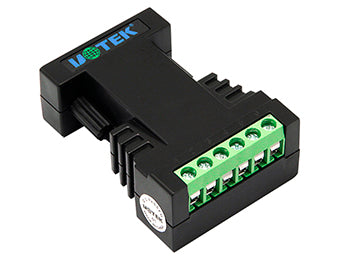

UOTEK UT-2127 RS-232 to RS-485/422 Port-Powered Lightning Converter with Optical Isolation

• Standards: RS-232C/ RS-485/ RS-422 EIA/TIA

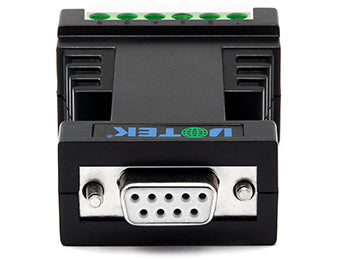

• Connector: RS-232 DB9 female input

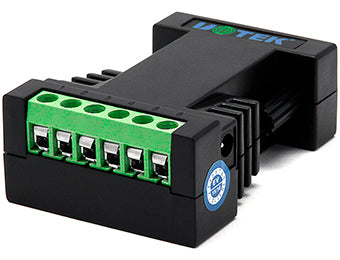

                 RS-422/485 6 bits terminal block output

• Port protection:RS-422/485±15KV ESD protection;

                 600W surge protection

• Isolation: 2,500Vrms isolated voltage, continuous 500VDC
• Working mode: Asynchronous half-duplex or full-duplex
• Transmission media: Twisted-pair or shielded cable
• Baudrate: 115.2K bps to 300M

                 38.4K bps to 600M

                 9,600 bps to 1.2KM

• Dimension: 61mm×41mm×21mm
• Operating temperature: -40 ~ 85℃
• Relative humidity: 5 ~95 %( non-condensing)
