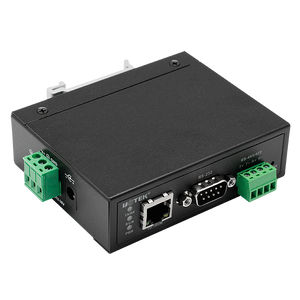

UOTEK UT-6801 10/100M to 1 Ports RS-232/485/422 Serial Device Server
Overview
UT-6801 serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.
Major Functions & Features
- With metal housing and multiple installation design, suitable for industrial control site applications.
- Wide power input (12~57.6VDC), suitable for different field power supply methods
- There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
- Support a wide baud rate range of 300-921600bps, suitable for applications between different devices
- Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
- Support upgrade Web firmware upgrade, convenient for special applications in different occasions
Technical Parameters
|
Processor |
32bit 400MHZ |
|
Storage |
128M |
|
Ethernet interface |
10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface |
|
Serial Standard |
RS-232, RS-485, RS-422 |
|
Serial RS-232 port |
DB9 male |
|
Serial RS-485/422 port |
3.81 unplugged terminal block |
|
Indicator light |
Power indicator light PWR, Running indicator light RUN, Serial port transmit and receive indicator DATA. |
|
Power connector |
DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection |
|
Power range |
DC12~57.6V |
|
Function buttons |
1 factory reset button RESET |
|
Max. power consumption |
1.6W |
|
Housing |
Metal housing, protection level IP30 |
|
Operating environment |
Storage temperature: -40~85°C Operating temperature: -40~85°C Relative humidity: 5% ~95% (Non-condensation) |
|
Mounting method |
Default rail mount, fixed piece mount (wall mount optional) |
|
Dimensions L×W×H |
100mm×80.8mm×30mm（Without mounting parts） |
|
Net. Weight |
270g |
Software Parameters
|
Operating System |
Based on Linux |
|
Protocol support |
ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS |
|
Configuration method |
Web browser, VCOM Utility(Virtual COM Only Windows) |
|
Operating Mode |
VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT, MQTT |
|
Baud rate |
300-921600bps |
|
Data Bits |
5,6,7,8 |
|
Stop Bits |
1,2 |
|
Check Bits |
None,Odd,Even |
|
Flow Control |
RTS/CTS,DTR/DSR,XON/XOFF（Only RS-232） |
