UTEK Technology

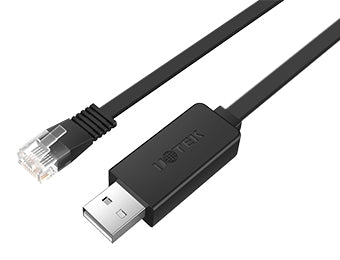

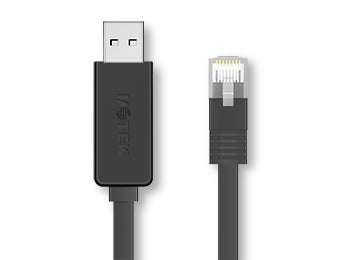

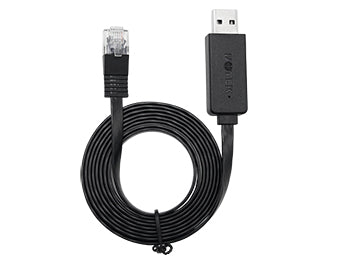

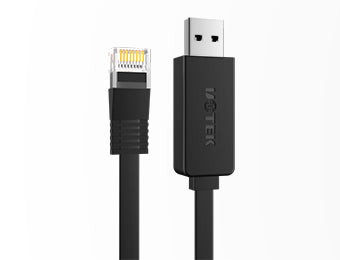

UOTEK UT-883R USB to RJ45 Console debugging cable
Regular price
$6.78
Sale price
$7.00
Tax included.
Shipping calculated at checkout.
- Built-in watchdog technology, fault self-recovery, to ensure stable operation of the equipment
- Standard: Complies with USB V1.1, 1.0, 2.0 standards, EIA RS-232 standard
- USB signal: VCC, DATA-, DATA+, GND, FG
- RS-232 signal: DCD RXD TXD DTR GND DSR RTS CTS
- Working mode: asynchronous working, point-to-point working
- Direction control: adopts data flow automatic control technology, automatically identifies and controls data transmission direction
- Baud rate: 300-460800bps, automatically detects serial port signal rate
- Load capacity: supports point-to-point communication mode
- Transmission distance: RS-232 end 5 meters, USB port not more than 5 meters
- Interface protection: ±15KV electrostatic protection
- Interface form: USB end A-class interface male head, RJ45 connector
- Transmission medium: twisted pair or shielded wire
- Cable length: 1500±20mm
- Operating environment: -40℃ to 85℃, relative humidity 5% to 95%
- Supports Windows 95/98/2000/2008/xp/Vista/win7/8/8.1/10, IMAG
