UOTEK UT-N60N08GP Managed Gigabit 8-port Industrial Ethernet POE Switch

Regular price $48.29 Sale price $55.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
  • Ensure reliable data transmission and long lifecycle
  • Support full-duplex or half-duplex mode with auto-negotiation capability
  • Network port supports fully automatic cross-identification
  • Storage and forwarding mechanism is built-in and supports multiple protocols
  • Compliant with industrial-grade operation standards, with an average trouble-free operation of more than 300,000 hours
  • Working power supply: DC 48-57V with reverse connection protection
  • Lightning surge protection (power supply): 5000A (8/20μs)

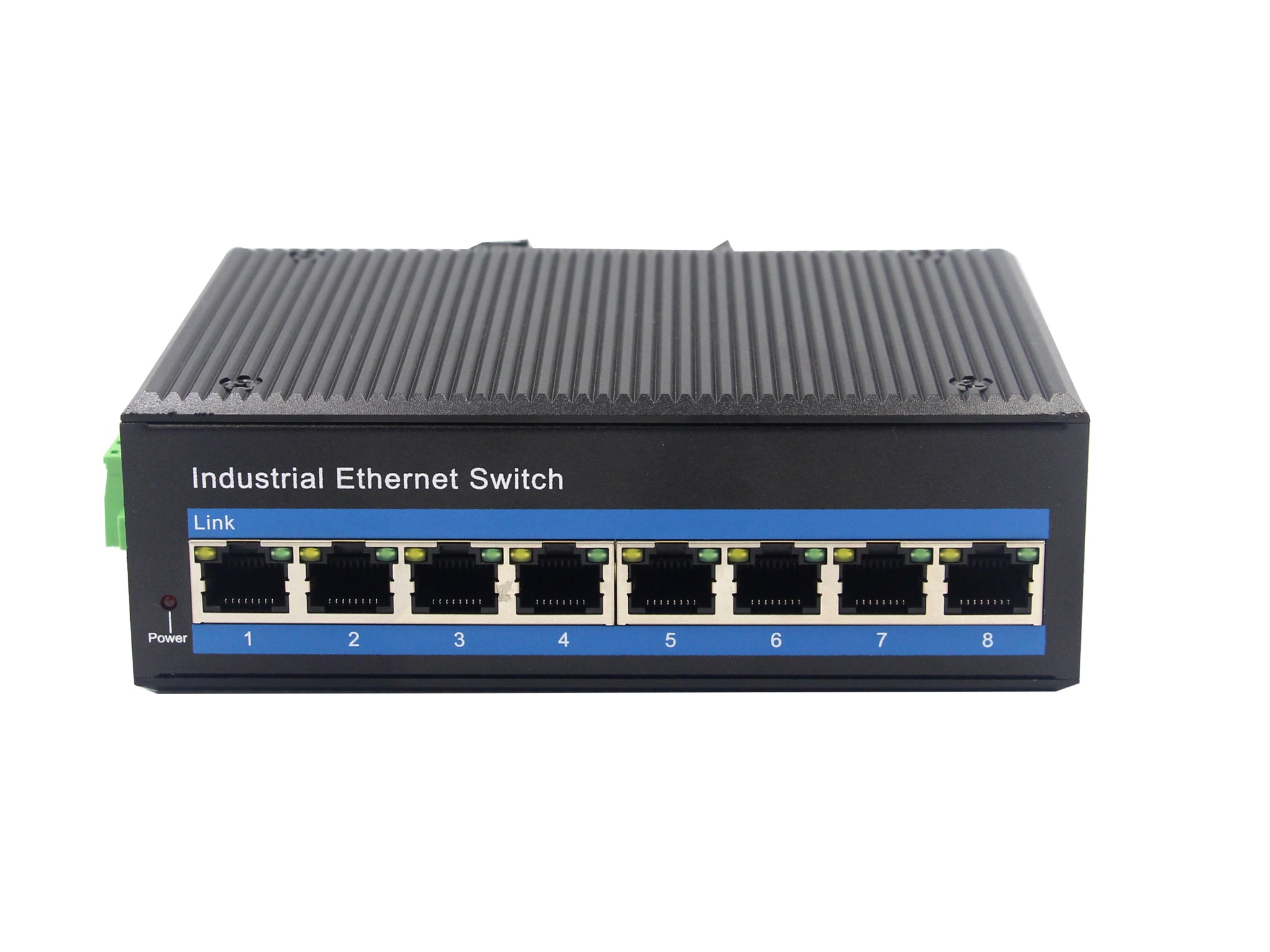

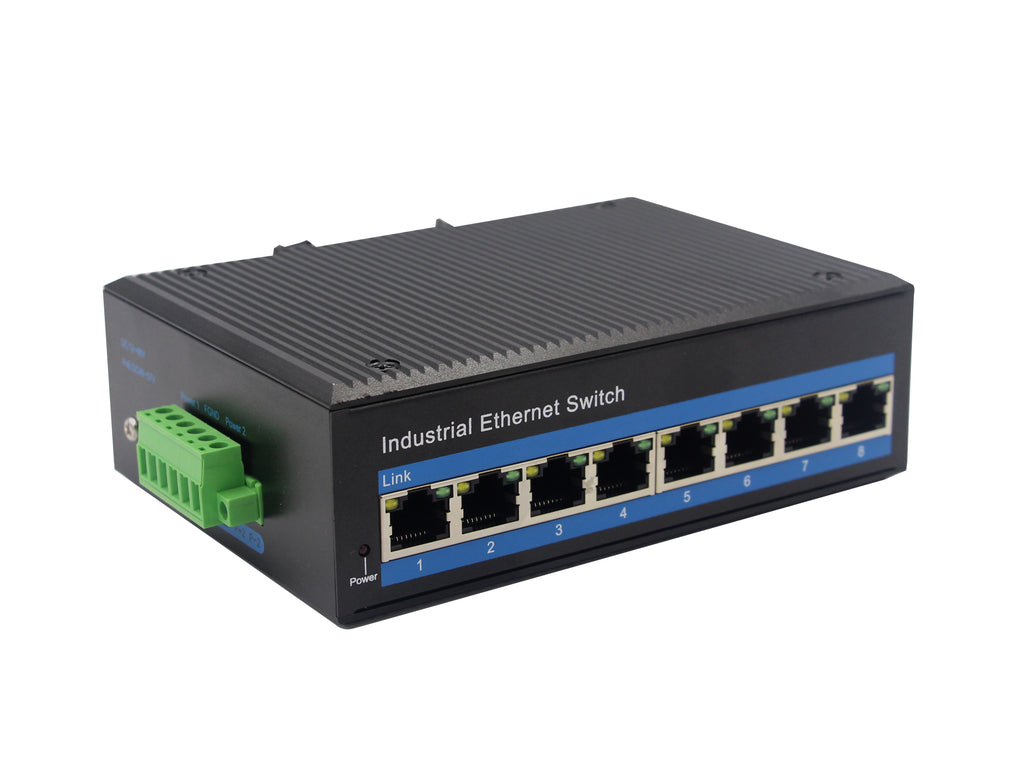

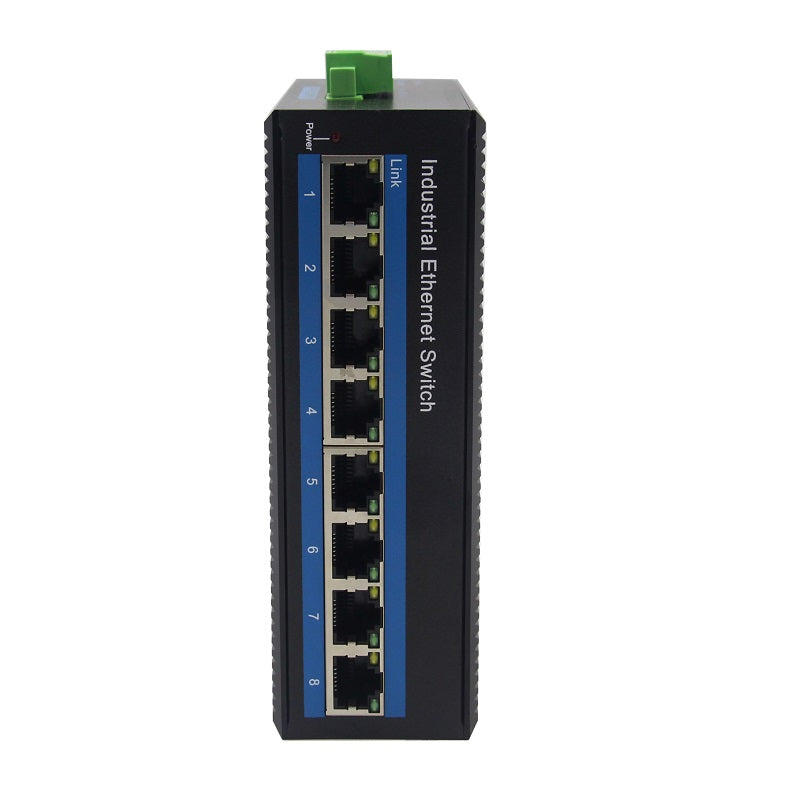

UT-N60N08GP is an industrial Ethernet POE switch with 8 Gigabit ports, supporting 8 100Base-T/1000Base-TX POE ports. The UT-N60N08GP switch has an operating temperature range of -40°C to 80°C. It is rugged enough to adapt to various harsh environments and can be easily placed in compact control boxes. The rail mounting features, wide temperature operation, IP40 rated housing and LED indicators make the UT-N60N08GP a plug-and-play industrial grade device that provides a reliable and convenient solution for networking Ethernet devices.



Item

UT-N60N08GP

Product Name

Gigabit 8-port Industrial Ethernet POE Switch

Hardware Specification

Interface

RJ45 port

8*RJ45, 100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X

PIN

V+ ,V+, V-,V- correspond to pin 1,2,3,6 (default)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface Indicator : Electric Port (Link)

Switching Performance

Forwarding rate

15Mpps

Transmission mode

Store-and-Forward

MAC address

8K

Buffer size

2Mbit

Backplane bandwidth

20G

Switching latency

<10μs

Power Requirement

Input voltage

DC48 ~ 57V Dual power redundancy backup

Access terminal

Phoenix terminal

Power consumption

<5W



Support dual power redundancy



Support built-in overcurrent 4.0A protection



Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 85°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

143.7 x103 x 44.2mm (W x D x H)

Weight

640g

Installation method

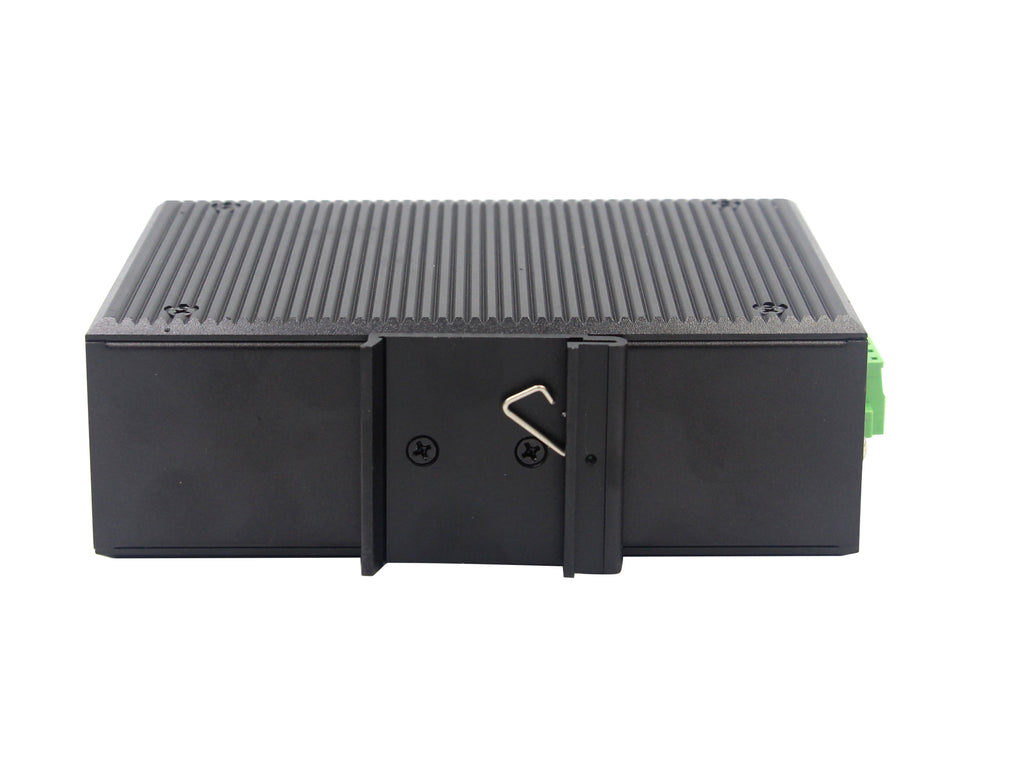

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at;

POE Standard

Standard PoE : IEEE802.3af/ IEEE802.3at

PoE port : 1-8 ports support PoE

Output Power :

Maximum power 15.4W (IEEE 802.3af)

Maximum power 30W (IEEE 802.3at)

POE port auto recognition af/at

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : Power line: ±2kV ; Data line: ±1kV

IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock : IEC 60068-2-27

Freefall : IEC 60068-2-32

Vibration : IEC 60068-2-6
