UOTEK UT-N60N216G-SFP Unmanaged Gigabit 18-port Industrial Ethernet Switch

Regular price $195.00 Sale price $250.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
  • Ensure reliable data transmission and long lifecycle
  • Support full-duplex or half-duplex mode with auto-negotiation capability
  • Network port supports fully automatic cross-identification
  • Storage and forwarding mechanism is built-in and supports multiple protocols
  • Compliant with industrial-grade operation standards, with an average trouble-free operation of more than 300,000 hours
  • Working power supply: DC 12-52V with reverse connection protection
  • Lightning surge protection (power supply): 5000A (8/20μs)

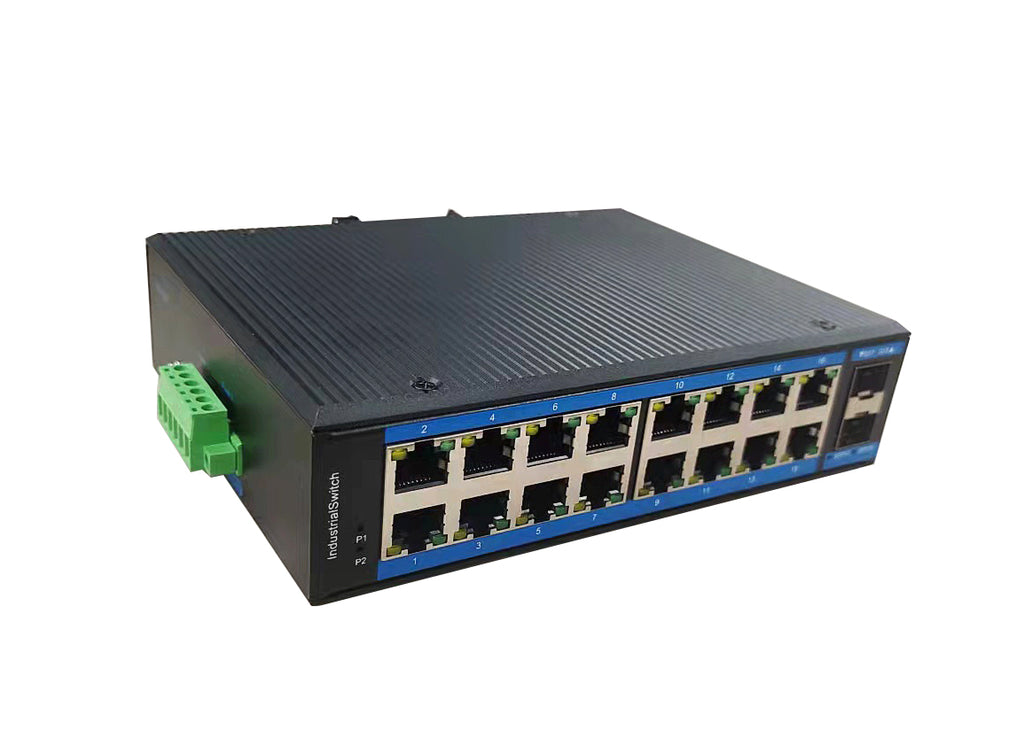

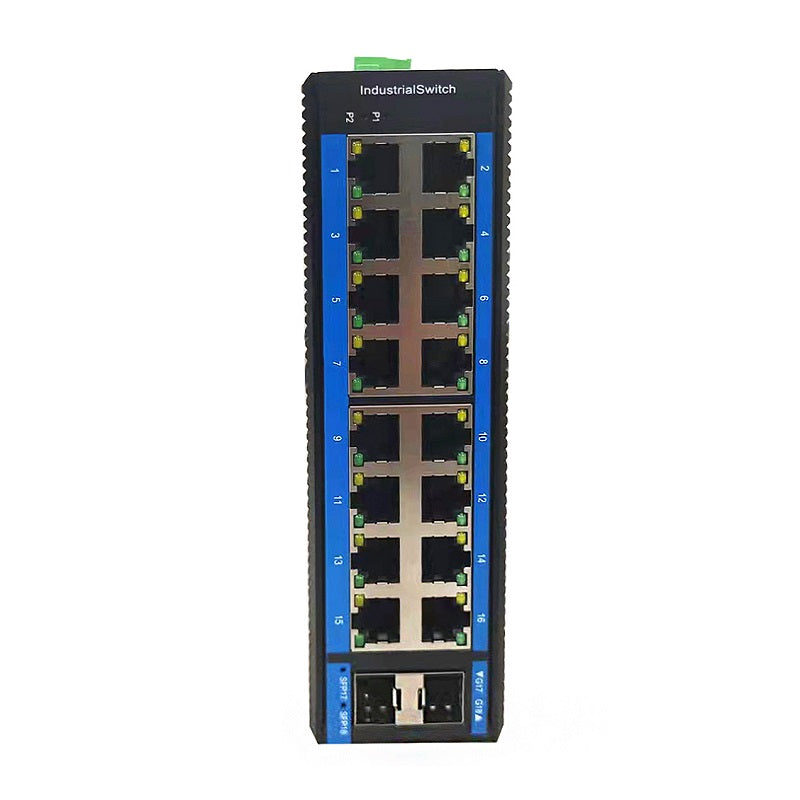

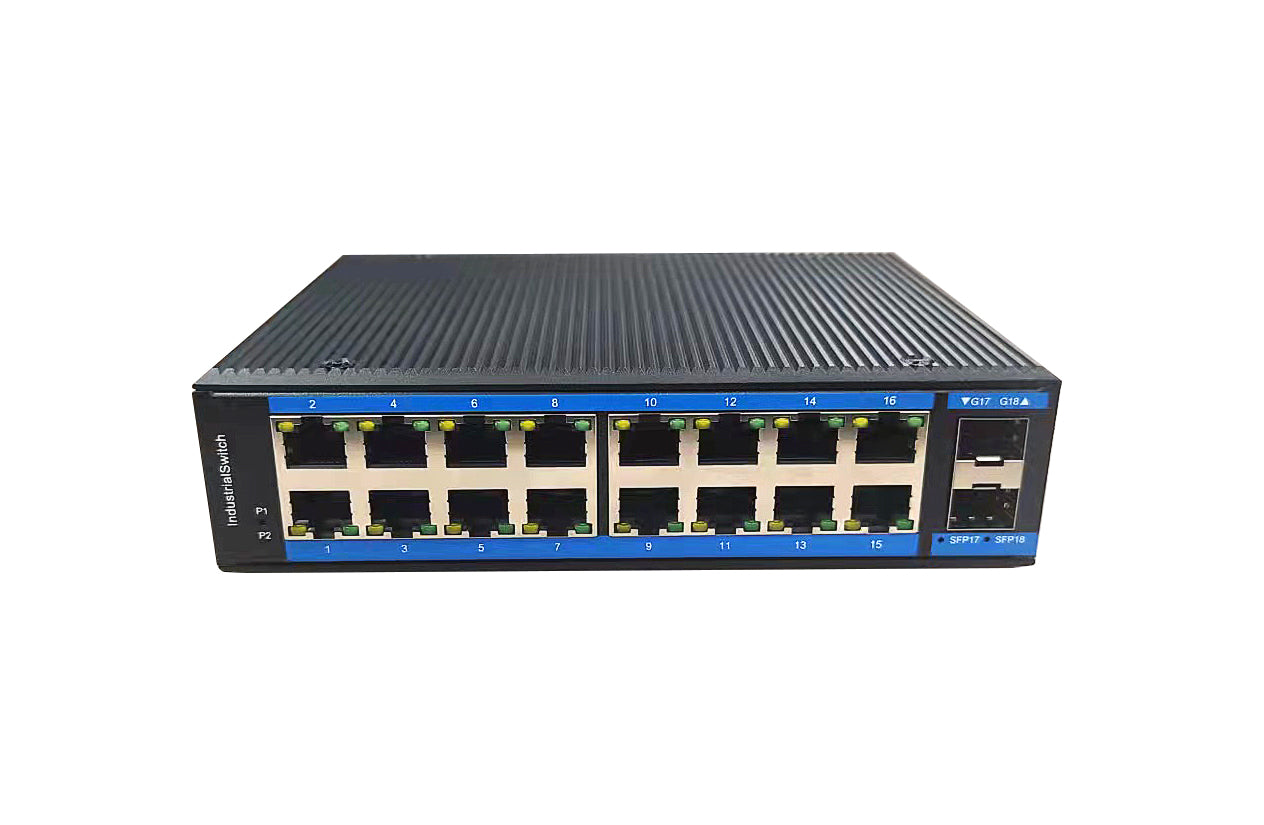

UT-N60N216G-SFP switch is an industrial Ethernet switch with 16 Gigabit electrical ports and 2 Gigabit optical ports, supporting 16 10Base-T/100Base-T/1000Base-TX electrical ports and 2 1000Base-X ports. The UT-N60N216G-SFP switch has a operating temperature range of -40 ~ 80°C, and is extremely rugged for harsh environments and can be easily placed in compact control boxes. The rail mounting features, wide temperature operation, IP40 rated housing and LED indicators make the UT-N60N216G-SFP a plug-and-play industrial grade device that provides a reliable and convenient solution for networking Ethernet devices.



Item

UT-N60N216G-SFP

Product Name

Gigabit 18-port Industrial Ethernet Switch

Hardware Specification

Interface

Interface description

16 gigabit electrical ports + 2 gigabit optical ports

RJ45 port

10/100/1000BaseT(X) auto-detection,full/half duplex MDI/MDI-X adaptive

Fiber optic port

1000BaseFX port (SFP interface)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface indicator: Electric port  (Link)

Switching Performance

Forwarding rate

42Mpps

Transmission mode

Store-and-Forward

MAC address

8K

Buffer size

4.1Mbit

Backplane bandwidth

56G

Switching latency

<10μs

Power Requirement

Input voltage

DC15 ~ 52V Dual power redundancy backup

Access terminal

Phoenix terminal

Power consumption

<10W



Support dual power redundancy



Support built-in overcurrent 4.0A protection



Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 85°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

179 x 134 x 46 mm  (W x D x H)

Weight

650g

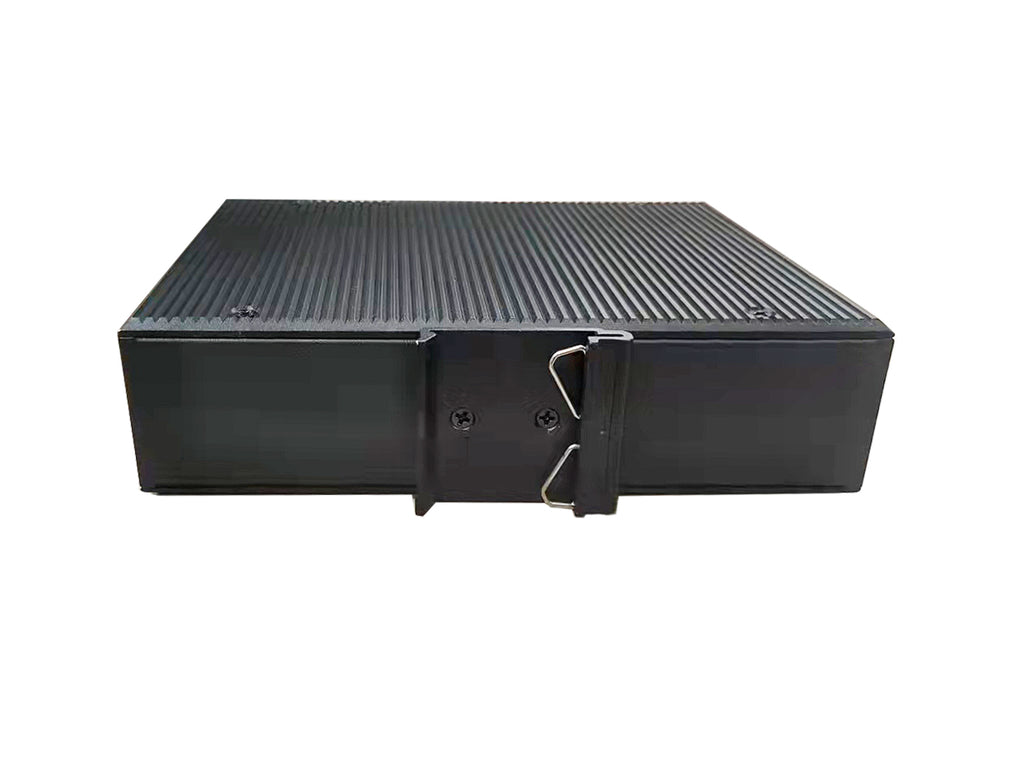

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX;

IEEE802.3ab1000Base-T; IEEE802.3z1000Base-X; IEEE802.3x;

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : Power line : ±2kV ; Data line : ±1kV

IEC(EN)61000-4-5(Surge) : Power line : ±2kV CM/±1kV DM ; Data line : ±2kV

IEC(EN)61000-4-6(RF conductivity) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock : IEC 60068-2-27

Freefall : IEC 60068-2-32

Vibration : IEC 60068-2-6
