UOTEK UT-N60N28G-SFP Unmanaged Gigabit 10-port Industrial Ethernet Switch

Regular price $85.00 Sale price $108.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
  • Ensure reliable data transmission and long lifecycle
  • Support full-duplex or half-duplex mode with auto-negotiation capability
  • Network port supports fully automatic cross-identification
  • Storage and forwarding mechanism is built-in and supports multiple protocols
  • Compliant with industrial-grade operation standards, with an average trouble-free operation of more than 300,000 hours
  • Working power supply: DC 12-52V with reverse connection protection
  • Adopts SFP fiber optic interface
  • Lightning surge protection (power supply): 5000A (8/20μs)

UT-N60N28G-SFP is an industrial Ethernet switch with 8 Gigabit electrical ports + 2 Gigabit FX ports, supporting 8 100Base-T/1000Base-TX electrical ports and 2 1000Base-X ports. The UT-N60N28G-SFP switch has an operating temperature of -40 80 °C and is super rugged to adapt to various harsh environments, and can also be easily placed in a compact control box. The mounting features of the rail, wide temperature operation, IP40 rated housing and LED indicators make the UT-N60N28G-SFP a plug-and-play industrial grade device that provides a reliable and convenient solution for networking Ethernet devices.



Item

UT-N60N28GP-SFP

Product Name

Gigabit 10-port Industrial Ethernet Switch

Hardware Specification

Interface

Interface description

8 Gigabit electrical ports + 2 Gigabit optical ports

RJ45 port

10/100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X adaptive

Fiber port

1000BaseFX port (SC/FC/ST/SFP optional)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface indicator: Electric port, optical port (Link/ACT)

Switching Performance

Forwarding rate

15Mpps

Transmission mode

Store-and-Forward

MAC address

8K

Buffer size

2Mbit

Backplane bandwidth

20G

Switching latency

<10μs

Power Requirement

Input voltage

DC12 ~ 52V Dual power redundancy backup

Access terminal

Phoenix terminal

Power consumption

<8W



Support dual power redundancy



Support built-in overcurrent 4.0A protection



Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 85°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

143.7 x103.8 x 47.7mm (W x D x H)

Weight

640g

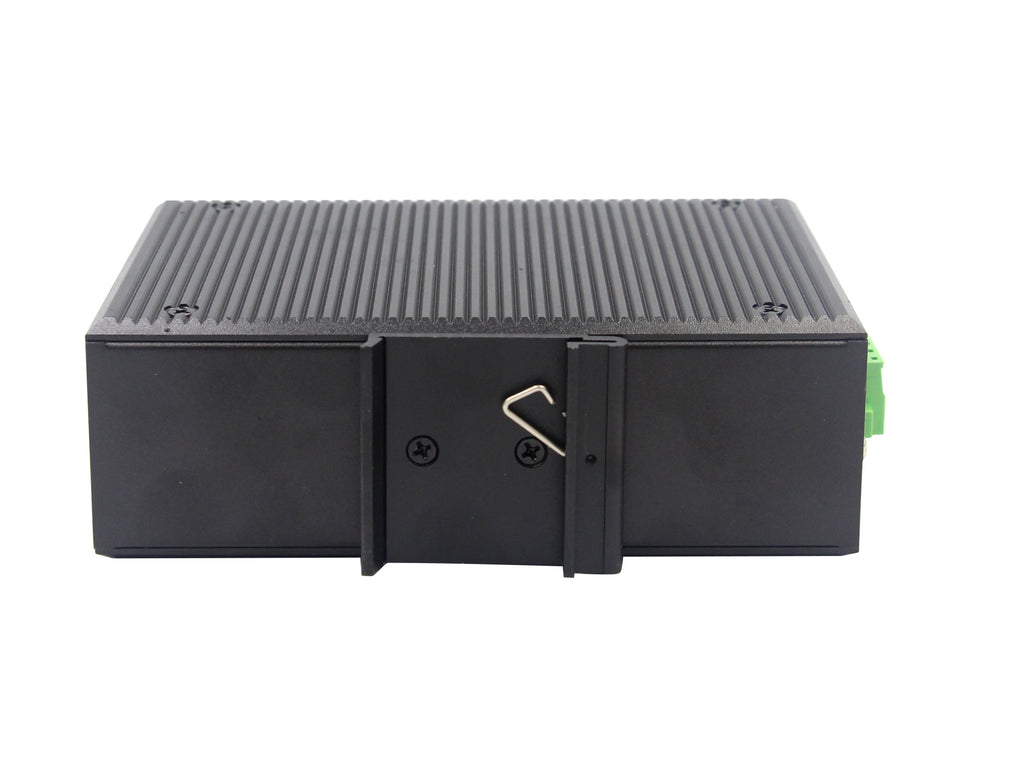

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS) : 1 0V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT):Power line: ±2kV ; Data line: ±1kV

IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock : IEC 60068-2-27

Freefall : IEC 60068-2-32

Vibration : IEC 60068-2-6
