UOTEK UT-N6228GFS-SFP Managed 10-port Industrial Ethernet Switch

Regular price $86.00 Sale price $110.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
  • Ensure reliable data transmission and long lifecycle
  • Support full-duplex or half-duplex mode with auto-negotiation capability
  • Network port supports fully automatic cross-identification
  • Built-in store-and-forward mechanism, supports multiple protocols
  • Support Port-based VLAN for easy network planning
  • Support STP/RSTP to ensure network security
  • Management function: support WEB management mode

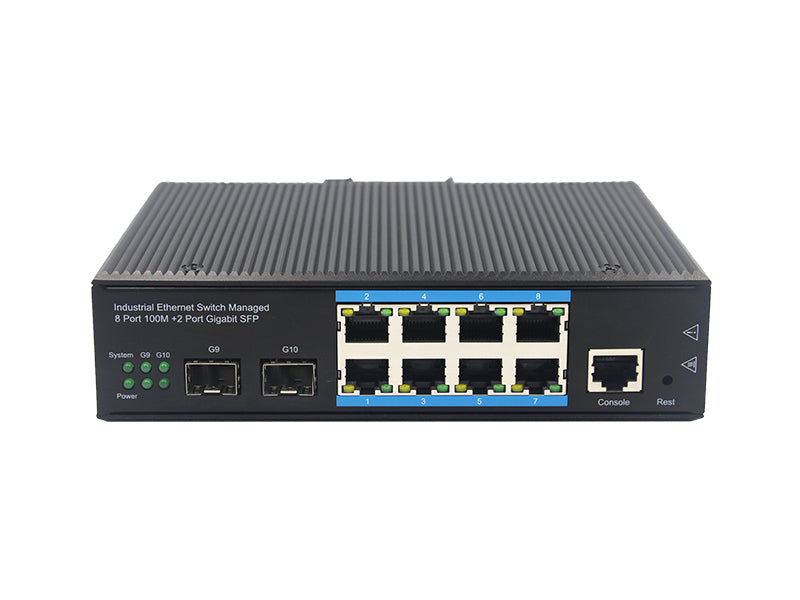

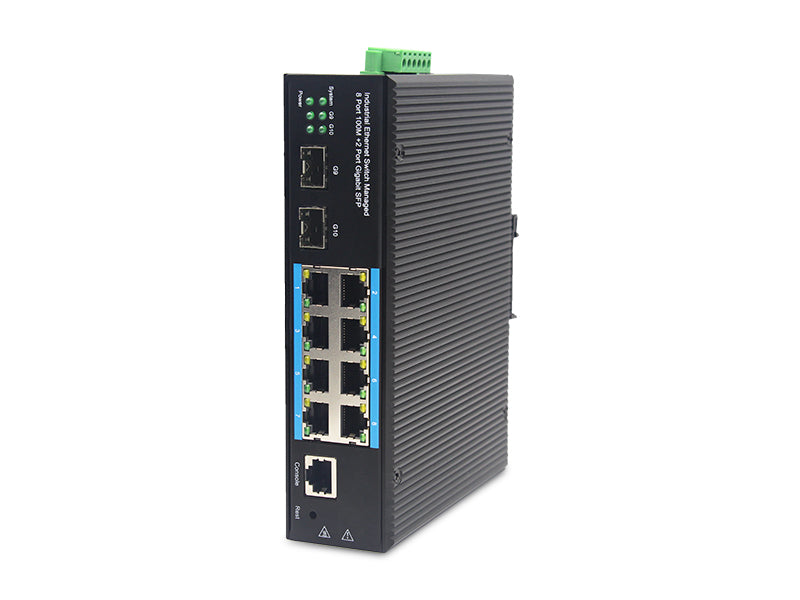

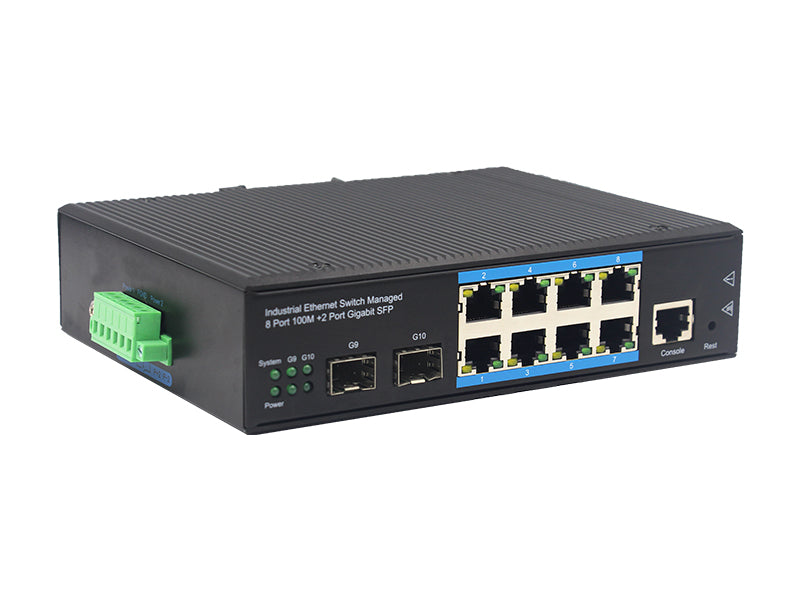

UT-N6228GFS-SFP is a managed industrial Ethernet switch with FCC, CE and ROHS compliance. It supports 2 Gigabit optical ports and 8 100M electrical ports, and supports Ethernet Layer 2 protocols required in industrial sites to ensure the stability of communication networks; this series of switches adopts low power consumption and fanless design to ensure no noise interference, and also supports -40~80°C operating temperature and good EMC performance to ensure stable work in harsh industrial environments, providing a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to build fast and stable network terminal access networks. It provides a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to build a fast and stable network terminal access network.





Item

UT-N6228GFS-SFP

Product Name

Managed 10-port Industrial Ethernet Switch

Hardware Specification

Interface

Interface description

8 RJ45 ports + 2 fiber optic ports

RJ45 port

10/100M auto-detection, full/half duplex MDI/MDI-X adaptive

Fiber port

1000BaseFX port (SFP slot)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface indicator: Electric port, optical port (Link/ACT)

Switching Performance

Forwarding rate

6.6Mpps

Transmission mode

Store-and-Forward

MAC address

4K

Buffer size

2.75Mbit

Backplane bandwidth

8.8G

Switching latency

<10μs

Power Requirement

Input voltage

DC12 ~ 52V Dual power redundancy backup

Access terminal

Phoenix terminal

Power consumption

<8W



Support dual power redundancy



Support built-in overcurrent 4.0A protection



Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 85°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

179 x134 x 46mm (W x D x H)

Weight

820g

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1D- Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, IEEE802.1Q-VLAN, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service, etc.

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : Network port : ±4kV CM//±2kV DM ;

IEC(EN)61000-4-5(Surge) : Network port : ±4kV CM//±2kV DM ;

IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8,Shock: IEC 60068-2-27,

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6
