UOTEK UT-N62416GS-M-SFP Managed 20-port Industrial Ethernet Switch

Regular price $278.00 Sale price $352.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Support IGMP Snooping
  • Support Port-based VLAN port, IEEE 802.1Q VLAN, easy network planning
  • Support QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability
  • Support STP/RSTP/MSTP/ERPS, SNMPv1/v2/v3 to ensure network security
  • Adopt RMON to enhance network monitoring machine prediction capability
  • Support port mirroring function for online debugging
  • Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression
  • Security management: support ACL access control list, support 802.1X
  • Management function: support WEB, CLI, SNMP management mode
  • Monitoring and maintenance: support port mirroring, interface status monitoring, log management
  • Support Bypass function (optional)

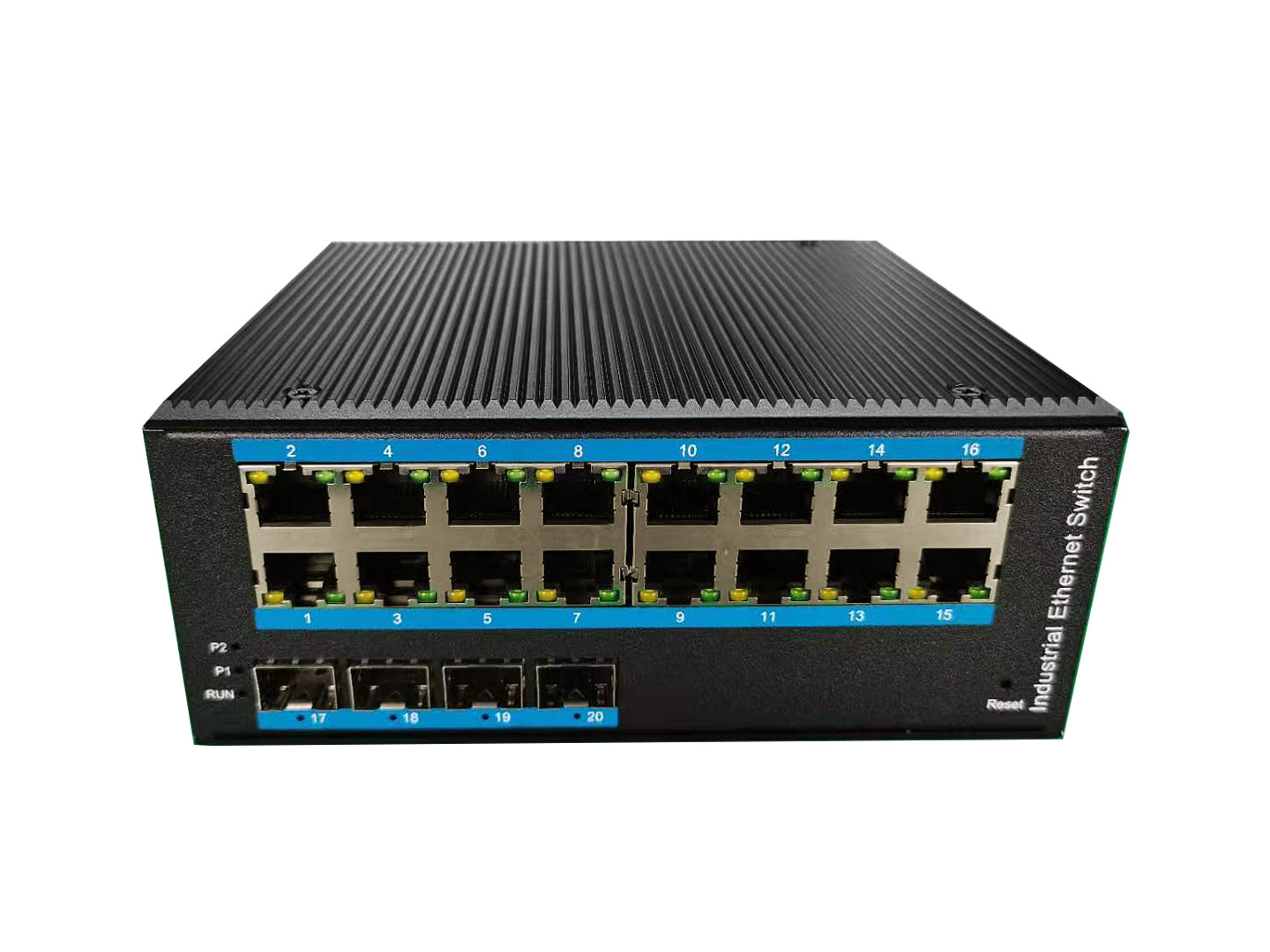

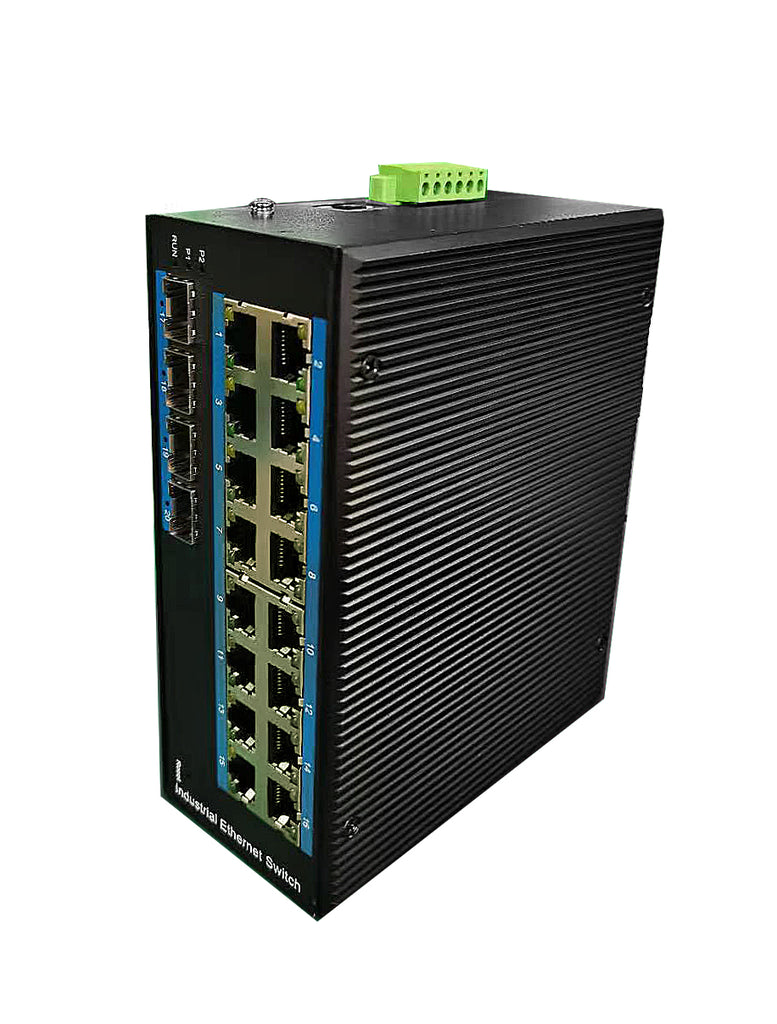

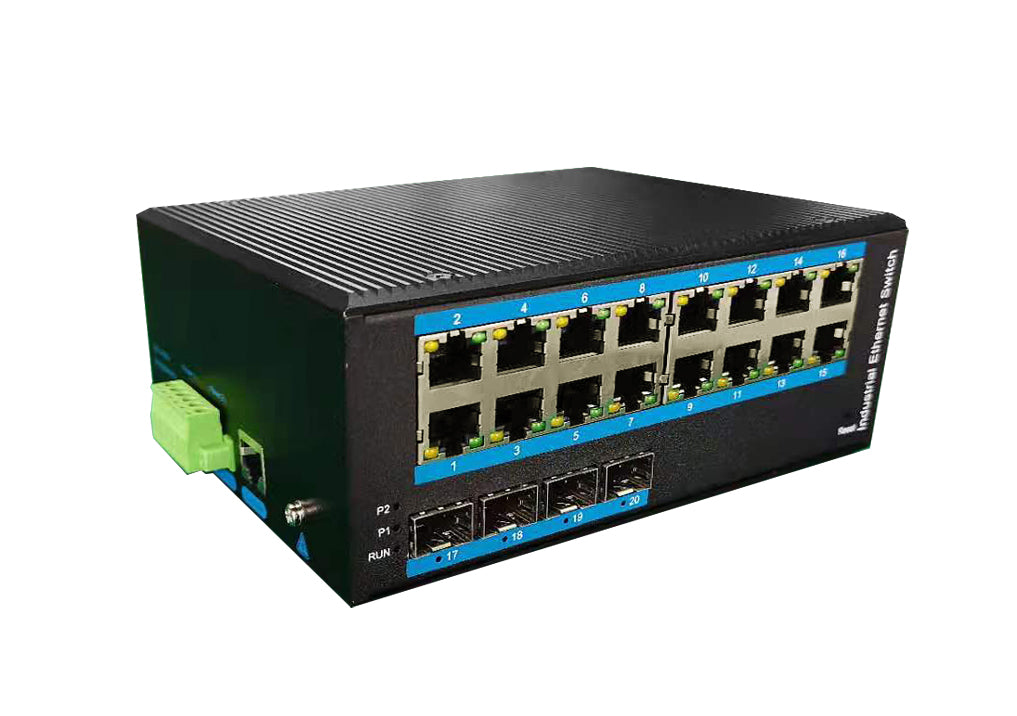

UT-N62416GS-M-SFP is a managed industrial Ethernet switch with FCC, CE, and RoHS compliant products. It supports 4 Gigabit optical ports and 16 Gigabit electrical ports; supports Ethernet Layer 2 protocols required by industrial sites to ensure the stability of communication networks; this series of switches adopts low power consumption and fanless design to ensure no noise interference, and supports -40~80°C operating temperature and good EMC electromagnetic compatibility performance to ensure stable operation in harsh industrial environments, providing safe and reliable solutions for factory automation, intelligent transportation It provides a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to build a fast and stable network terminal access network.





Item

UT-N62416GS-M-SFP

Product Name

Managed 20-port Industrial Ethernet POE Switch

Hardware Specification

Interface

Interface description

16 RJ45 ports + 4 fiber optic ports

RJ45 port

10/100/1000M auto-detection, full/half duplex MDI/MDI-X adaptive

Fiber optic interface

1000BaseFX port (SFP slot)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Switching Performance

Forwarding rate

42Mpps

Transmission mode

Store-and-Forward

MAC address

8K

Buffer size

12Mbit

Backplane bandwidth

56G

Switching latency

<10μs

Power Requirement

Input voltage

DC12 ~ 52V (dual power supply redundancy backup)

Power consumption

<5W

Access terminal

Phoenix terminal



Support dual power redundancy



Support built-in overcurrent 4.0A protection



Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 80°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

143.7*104*47.7mm (W x D x H)

Weight

820g

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab Logical Link Discovery Protocol, IEEE802.1D-Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, APS

IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service, IEEE802.1X-Port Based Network Access Control, etc.

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMC :

IEC(EN)61000-4-2(ESD):±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT):Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-5(Surge):Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6
