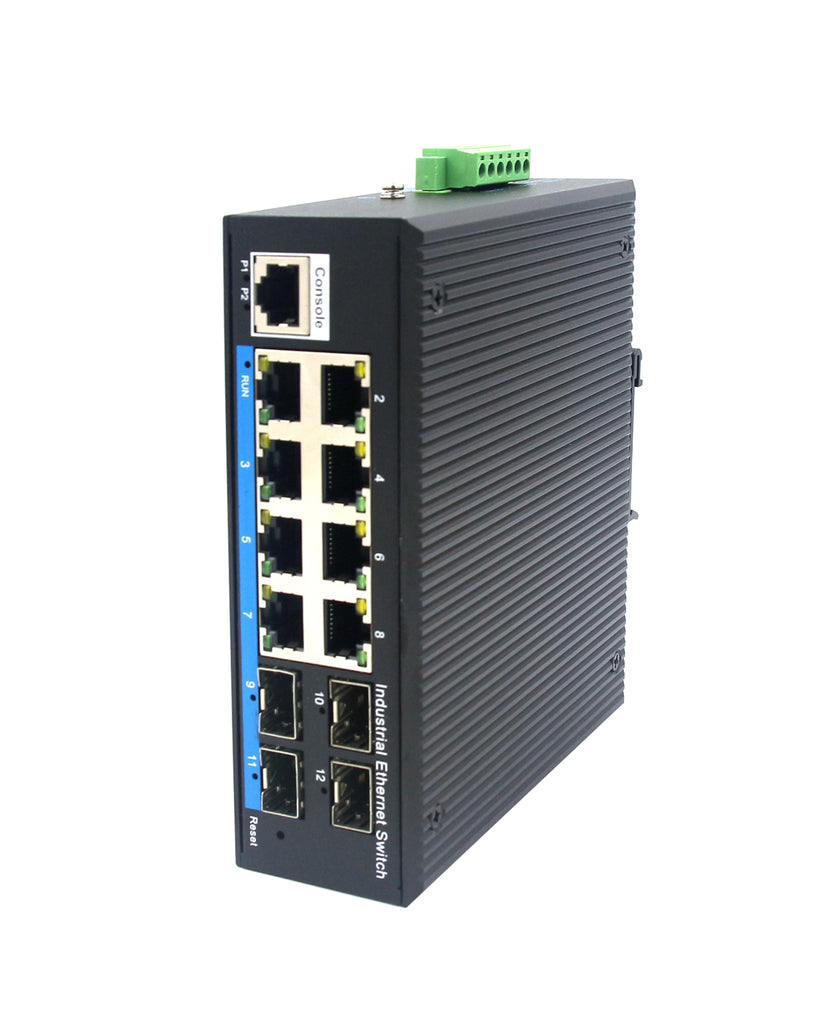

UOTEK UT-N6248GSP-M-SFP Managed 12-port Industrial Ethernet POE Switch
- Support IGMP Snooping
- Support Port-based VLAN port, IEEE 802.1Q VLAN, easy network planning
- Support QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability
- Support STP/RSTP/MSTP/ERPS
- Support SNMPv1/v2c/v3, RMON to enhance the prediction capability of network monitor
- Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression
- Security management：support ACL access control list, support 802.1X
- Management function: Support WEB, CLI, SNMP management mode
- Monitoring and maintenance: interface status monitoring, log management
- Support Bypass function (optional)
- IP40 protection level monitoring, log management
- Support Bypass function (optional)
UT-N6248GSP-M-SFP is a managed industrial POE switch, the product complies with CE, FCC, RoHS standards, supports 4 gigabit optical ports and 8 POE gigabit electrical ports; supports Ethernet Layer 2 protocols required by industrial sites , to ensure the stability of the communication network; this series of switches adopts low power consumption, fanless design to ensure no noise interference, and supports -40~80°C operating temperature and good EMC electromagnetic compatibility performance to ensure that it can be maintained in harsh industrial environments. Stable work, providing safe and reliable solutions for the establishment of fast and stable network terminal access networks in industrial application fields such as factory automation, intelligent transportation, and video surveillance.
|
Item |
UT-N6248GSP-M-SFP |
|
Product Name |
Managed 6-port Industrial Ethernet POE Switch |
|
Hardware Specification |
|
|
Interface |
|
|
Interface description |
8 RJ45 POE ports + 4 fiber optic ports (1-8 ports support POE output) |
|
RJ45 port |
10/100/1000M auto-detection, full/half duplex MDI/MDI-X adaptive Support IEEE802.3af/at (maximum POE power 30W for ports) |
|
Fiber optic interface |
1000BaseFX port (SFP slot), Auto-100/1000M |
|
LED Indicator Light |
|
|
LED indicator light |
Power indicator: PWR Interface indicator: electrical port, optical port (Link/ACT) |
|
Switching Performance |
|
|
Forwarding rate |
41.6Mpps |
|
Transmission mode |
Store-and-Forward |
|
MAC address |
8K |
|
Buffer size |
12Mbit |
|
Backplane bandwidth |
56G |
|
Switching latency |
<10μs |
|
Power Requirement |
|
|
Input voltage |
DC48-57V (dual power supply redundancy backup) |
|
Power consumption |
<20W |
|
Access terminal |
Phoenix terminal |
|
|
Support dual power redundancy |
|
|
Support built-in overcurrent 4.0A protection |
|
|
Support reverse connection protection |
|
Operating Environment |
|
|
Operating temperature |
-40 ~ 80°C |
|
Operating humidity |
5 ~ 95% |
|
Storage temperature |
-40 ~ 80°C |
|
Storage humidity |
5 ~ 95% (no condensing) |
|
Mechanical Characteristic |
|
|
Housing |
IP40 protection level, metal housing |
|
Dimension |
143*125*48mm (W x D x H) |
|
Weight |
1250g |
|
Installation method |
DIN rail/ wall-mounted |
|
Ethernet Standard |
|
|
Standard |
IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab Logical Link Discovery Protocol, IEEE802.1D-Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control, etc. |
|
Industry Standard |
EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMC : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
