UTEK Technology

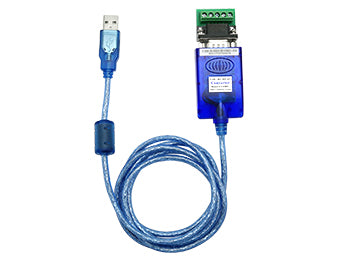

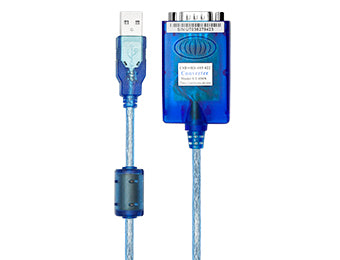

UT-850N USB to RS-485/422 Converter

$12.30 ~~$16.00~~

Tax included. Shipping calculated at checkout.

Standards: USBV1.1, RS-485/422 EIA
USB Signal: VCC, DATA+, DATA-, GND, FG
RS-485 Signal: T+, T-, GND
RS-422 Signal: T+, T-, R+, R-, GND
Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
Direction control: Adopts data flow direction auto control technology to distinguish and control the direction
Baud rate: 300-921.6Kbps auto-detect serial signal
Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
Transmission distance: 5,000m(9,600bps) for RS-485/422, no more than 5m for USB
Port protection: Surge, ±15KV ESD protection
Connector: USB-A male, DB9 male
Transmission media: twisted-pair or shielded cable
Length: 1.5m
Operating temperature: -20 ~ 75℃
Relative humidity: 5 ~ 95%
Transmission distance: 0-1,200m（921,600bps-9,600bps）
Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
