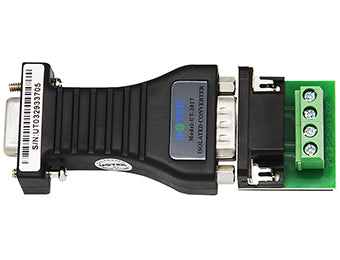

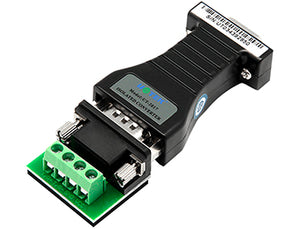

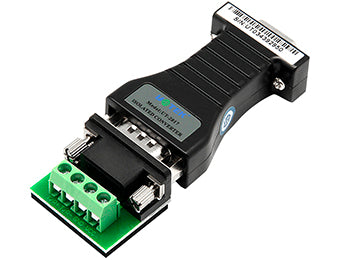

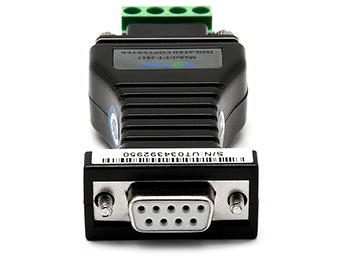

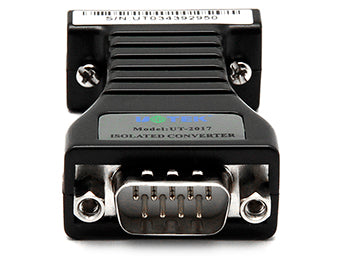

UOTEK UT-2017 RS-232 to RS-485 Converter with Isolation

$11.74 ~~$14.00~~

Tax included. Shipping calculated at checkout.

Standards: RS-232C, RS-485 EIA/TIA
Connector: RS-232 DB9 female, RS-485 DB9 male
Protection: RS-232 ±15KV ESD protection, RS-485 each line 600W lightning, surge protection
Isolation: Isolated voltage 2,500Vrms 500VDC non-stop
Working mode: Asynchronous half-duplex
Transmission media: Twisted-pair or shielded cable
Transmission rate: 38,400bps to 300m; 9,600bps to 1.2Km
Dimension: 63×33×17mm
Operating temperature: -25 ~ 70℃
Relative humidity: 5 ~ 95%
