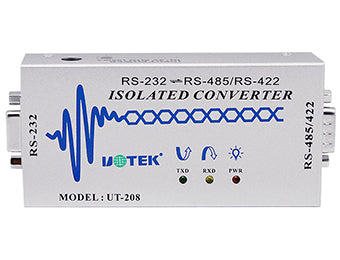

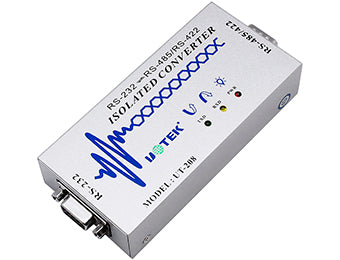

UOTEK UT-208 Industrial RS-232 to RS-485/422 Converter with Isolation
UOTEK UT-208 Industrial RS-232 to RS-485/422 Converter with Isolation
UOTEK UT-208 Industrial RS-232 to RS-485/422 Converter with Isolation
UOTEK UT-208 Industrial RS-232 to RS-485/422 Converter with Isolation
UTEK Technology

UOTEK UT-208 Industrial RS-232 to RS-485/422 Converter with Isolation

Regular price $25.99 Sale price $34.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Standards: RS-232, RS-485, RS-422 TIA/EIA
  • Automatic data direction control, no need external flow control signal (RTS), real TXD/RXD/GND communication
  • Baud rate: 300bps-115.2Kbps
  • Allows connecting 128 sets RS-485 or RS-422 device
  • Transmission distance: 5,000m(9,600BPS)
  • Power & data flow indicator, failure detection
  • Working mode:  asynchronous half-duplex (RS-485) or full-duplex (RS-422), without jumper configuration
  • 2.5KVrms/500VDC enhanced isolation, special DC/DC module, RS-485/422 provides with 600W lighting & surge protection each line

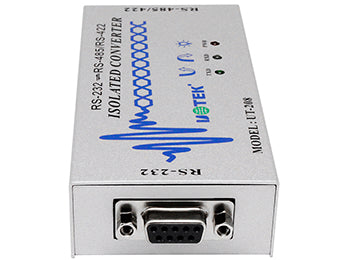

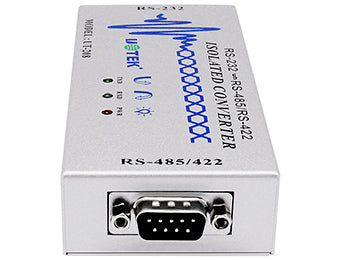

  • Connector: DB9 female to DB9 male connector
  • Transmission Media: Twisted-pair or shielded cable
  • Dimension: 113×55×25mm
  • Operating temperature: -40 ~ 85℃
  • Relative humidity: 5 ~ 95%
  • Works with all communication software, plug & play
  • Supports all operating system
