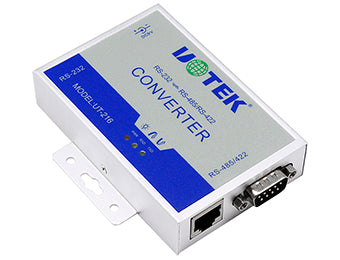

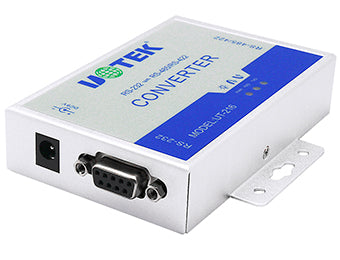

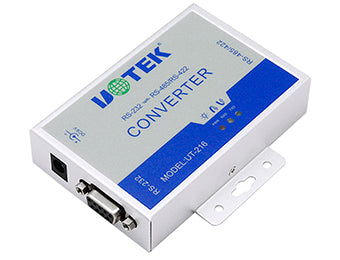

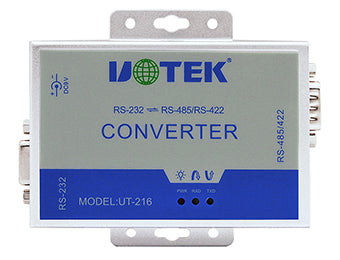

UOTEK UT-218 Industrial RS-232 to RS-485/422 Converter with Isolation

• Standards: RS-232, RS-485, RS-422 TIA/EIA
• Automatic data direction control, no need external flow control

 signal (RTS), real TXD/RXD/GND communication

• Baud rate: 300bps-115.2Kbps
• Allows connecting 128 sets RS-485 or RS-422 device
• Transmission distance: 5,000m（9,600bps）
• Power & data flow indicator, failure detection
• Working mode: asynchronous half-duplex (RS-485) or full-duplex (RS-422), without jumer configuration
• 2.5KVrms/500VDC enhanced isolation, special DC/DC module, RS-485/422 provides with 1,500W lighting, surge & ±15KV ESD protection each line
• Connector: DB9 female to DB9 male RJ-45 connector
• Transmission media: twisted-pair or shielded cable
• Dimension: 97×65×22mm
• Operating temperature: -40 ~ 85℃
• Relative humidity: 5 ~ 95%
• Works with all communication software, plug & play
• Supports all operating system
