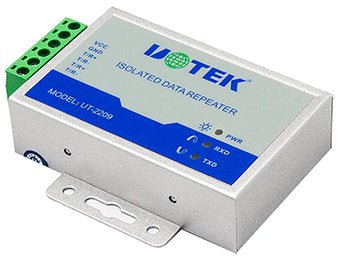

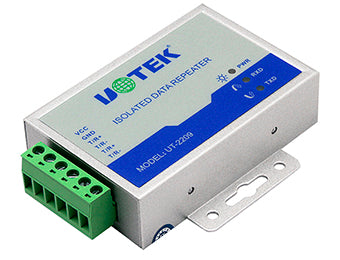

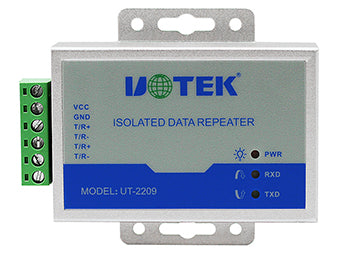

UOTEK UT-2209 Industrial RS-485 Repeater with Isolation

• Standards: RS-485 TIA/EIA

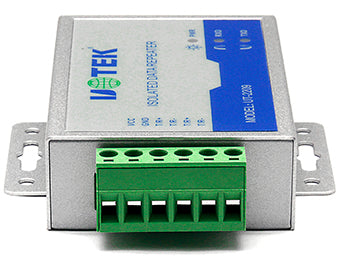

• Connector: RS-485 2-pin terminal block input

                RS-485 2-pin terminal block output

• Protection: RS-485 each line with 600W lightning, surge, ±15KV ESD protection
• Working mode: asynchronous half-duplex
• LEDs for indicating PWR TXD, and RXD activity
• Transmission media: twisted-pair or shielded cable
• Baud rate: 300BPS-115.2K BPS
• Dimension: 89x74x22mm
• Operating temperature: -40 ~ 85℃
• Relative humidity: 5 ~ 95 %( Non-condensing)
• Works with all communication software, plug & play
• Transmission distance: 0-1,200m (115,200bps-9,600bps)
