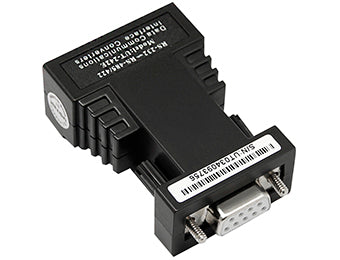

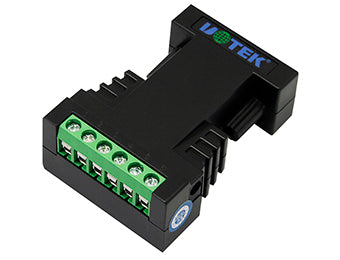

UOTEK UT-242E RS-232 to RS-485/422 Converter with Lightning Surge Protection

$13.42 ~~$16.00~~

Tax included. Shipping calculated at checkout.

Standards: RS-232C, RS-485/422 EIA/TIA

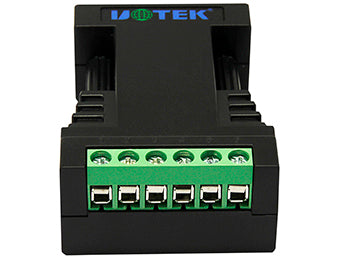

RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block
Operating mode: asynchronous half-duplex, differential transmission, no need jumper setting
Transmission media: twisted-pair or shielded cable
Baud rate: 300bps-115.2kbps
Dimension: 62mm×40.5mm×21mm
Operating temperature: -40℃to 85℃
Relative humidity: 5% to 95%
Transmission distance: 1,200m (RS-485/422); 5m (RS-232)
Protection: 2KA lightning surge protection
