UOTEK UT-2571 10/100M 1 Fiber 1 Ethernet Port Industrial Switch

Regular price $85.57 Sale price $98.00 Unit price per
Tax included. Shipping calculated at checkout.

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX & 100Base-FX



>>Interfaces

Fiber interfaces: 1*100Base-FX(SC/FC/ST)

RJ45 interface: 1*10/100Base-TX, auto detection, full/half-duplex, auto MDI/MDI-X



>>Switching Performance

Forwarding Rate: 148,810pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 448Kb

Backplane bandwidth: 1.6G



>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption:100mA@24Vmax

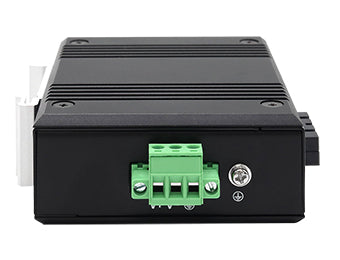

Terminal block: One pluggable 3-pin terminal block

Overload protection: Support

Reversal protection: Support



>>Mechanical Characteristics

IP protection level: IP40

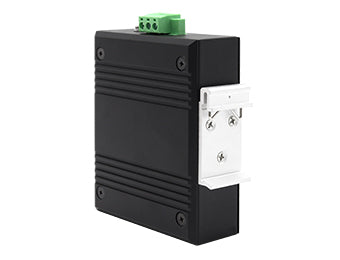

Installation: DIN-Rail Mounted



>>LED indicator light

PWR, FDX,



>>Mechanical Dimension

Dimension (W x H x D): 100mm x 80mm x 35mm

Weight: 0.45Kg

Packaging dimension: 180mm x 140mm x 45mm



>>Operating Environment

Operating temperature: -20 ~ 75℃

Storage temperature: -40 ~ 85℃

Relative humidity: 0 ~ 95%



>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
