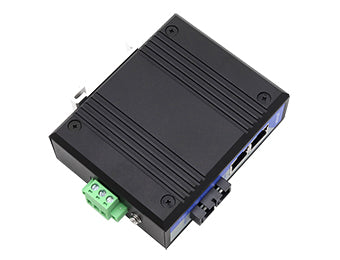

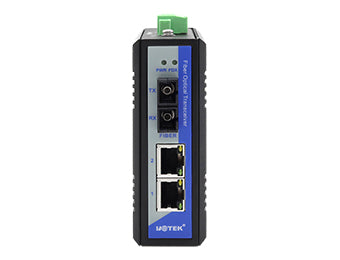

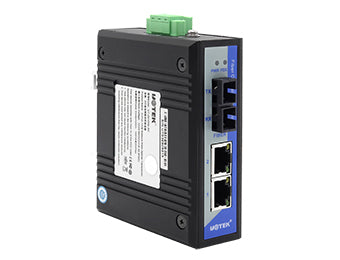

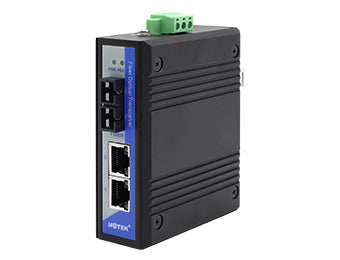

UOTEK UT-2572 10/100M 1 Fiber 2 Ethernet Ports Industrial Switch

$94.10 ~~$108.00~~

Tax included. Shipping calculated at checkout.

>>Standards
IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X) & 100Base-FX

>>Ports
Optic fiber port: 1x100Base-FX port(with optional SC, ST, FC)
RJ45 port: 2x10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X

LED indication: PWR, FDX, ACT, LINK

>>Fiber-optic Feature

Mode:
Multi-mode: 50/125, 62.5/125
Single-mode: 8.3/125, 8.7/125, 9/125, 10/125μm
Transmission distance:
Multi-mode: 2km
Single-mode: 20km, with optional 40Km, 60Km, 80km, 120km

Cat.5e: 100m

>>Power Requirement
Input voltage: DC9-48V/500mA

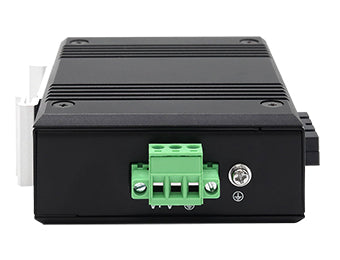

Terminal block: 3-pin, pluggable

Overload protection: Yes

Reverse polarity protection: Yes

>>Mechanical Characteristics
IP rating: IP30

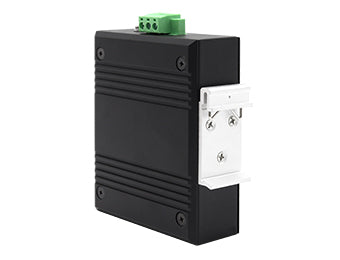

Installation: DIN-Rail/wall-mounted
Dimension(W x H x D): 150×37×100mm

>>Environment
Operating temperature: -10℃～60℃
Storage temperature: -40℃～85℃
Relative humidity:5～95% (non-condensing)

>>Industrial Standards
EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD), grade 3
IEC(EN)61000-4-3(RS), grade 3
IEC(EN)61000-4-4(EFT), grade 3
IEC(EN)61000-4-5(Surge), grade 3
IEC(EN)61000-4-6(CS), grade 3
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
