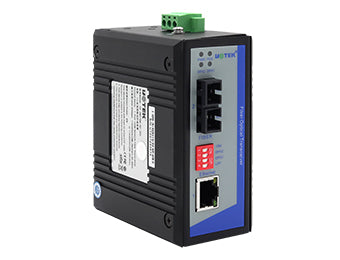

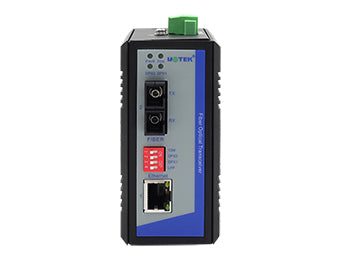

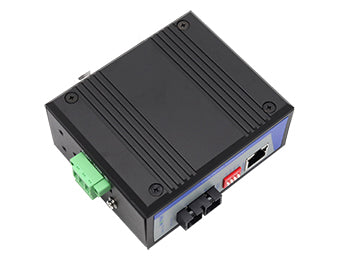

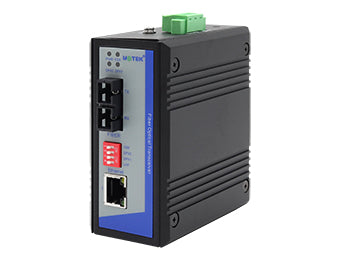

UOTEK UT-2601-220 1-Port 100M Network Fiber Optic Transceiver

$95.08 ~~$100.00~~

Tax included. Shipping calculated at checkout.

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX & 100Base-FX

>>Interfaces

Fiber interfaces: 1*100Base-FX（SC/FC/ST）

RJ45 interface: 1*10/100Base-TX, auto detection, full/half-duplex,

auto MDI/MDI-X

Draw switch: 10M/100M rate, DPX2 optical port operating status, DPX1 electrical port operating status, LFP optical port and electrical port connection status detection switch

>>Transmission distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

1550nm 20/40/60/80/100/120Km

Multimode: 1310nm 2Km

>>LED indicator light

PWR, FDX, DPX2 optical port full/half duplex, DPX1 electrical port full/half duplex, RJ network

>>Switching Performance

Forwarding Rate: 148810pps

Transmission mode: Direct Forward

MAC address size: 1K

Cache size: 288Kb

Max. frame length: 9K

>>Power Requirement

Voltage input: 110/220VAC(88-264VAC)50-60Hz or110/220VDC (88-264VDC)

>>Power consumption

No load: 3.2 W@220VAC

Full load: 4.3 W@220VAC

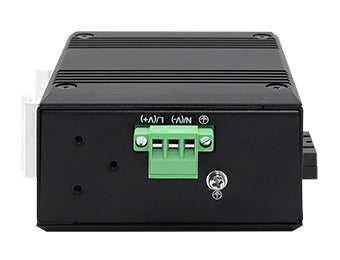

Terminal block: One pluggable 3-pin terminal block

>>Mechanical Characteristics

IP protection level: IP40

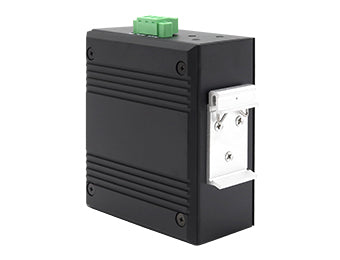

Installation: DIN-Rail Mounted

>>Mechanical Dimension

Dimension (W x H x D): 100mm x 80mm x 35mm

Weight: 400g

Packaging dimension: 180mm x 140mm x 45mm

>>Operating Environment

Operating temperature: -40 ~ 85℃

Storage temperature: -40 ~ 85℃

Relative humidity: 0 ~ 95%

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
