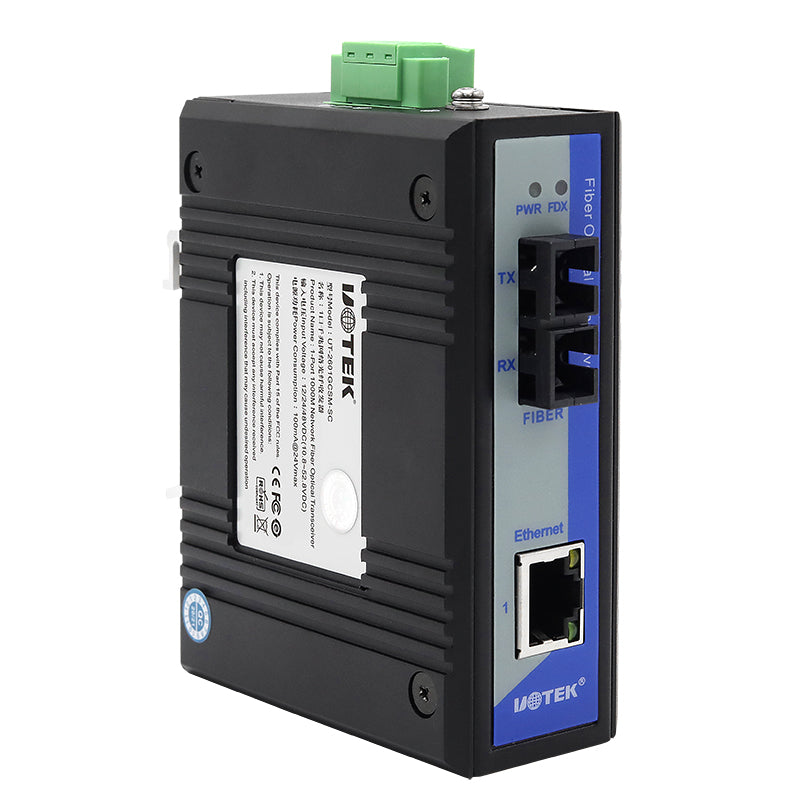

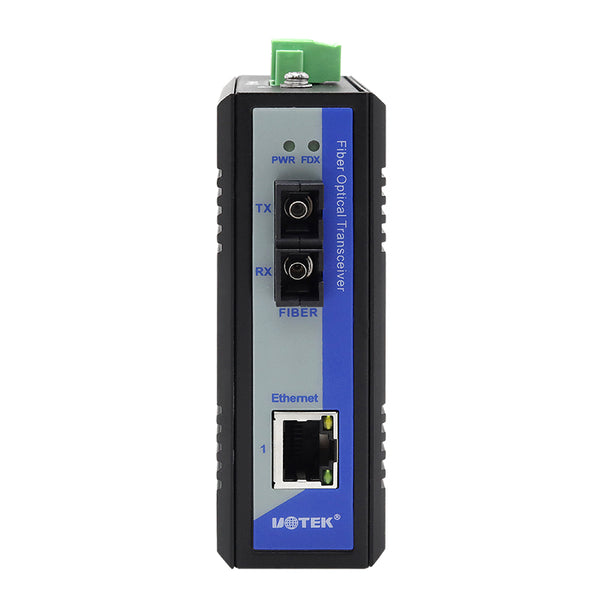

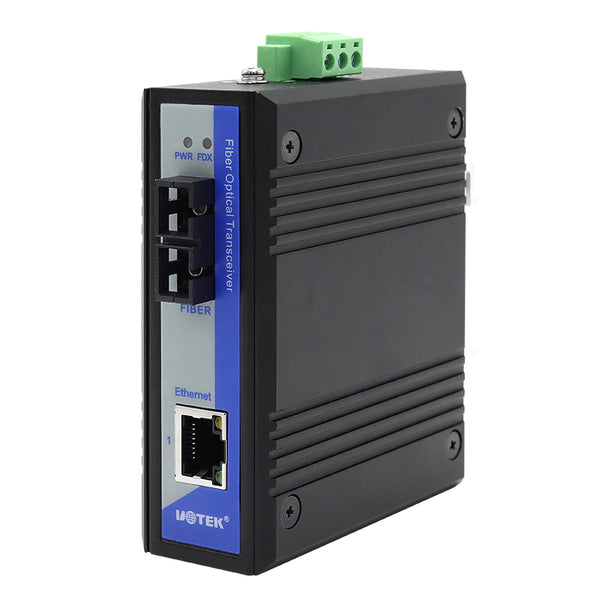

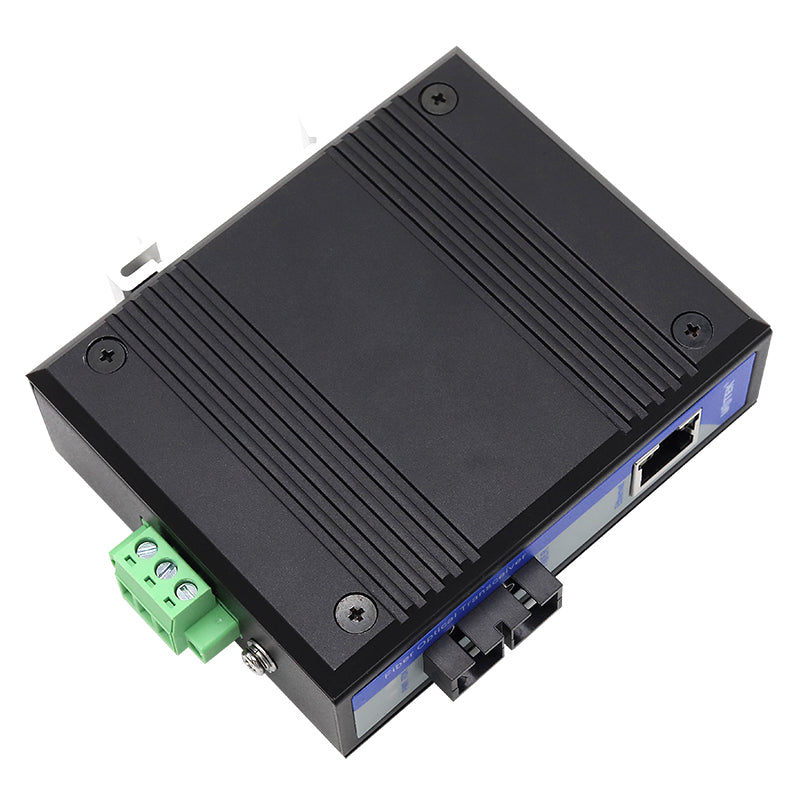

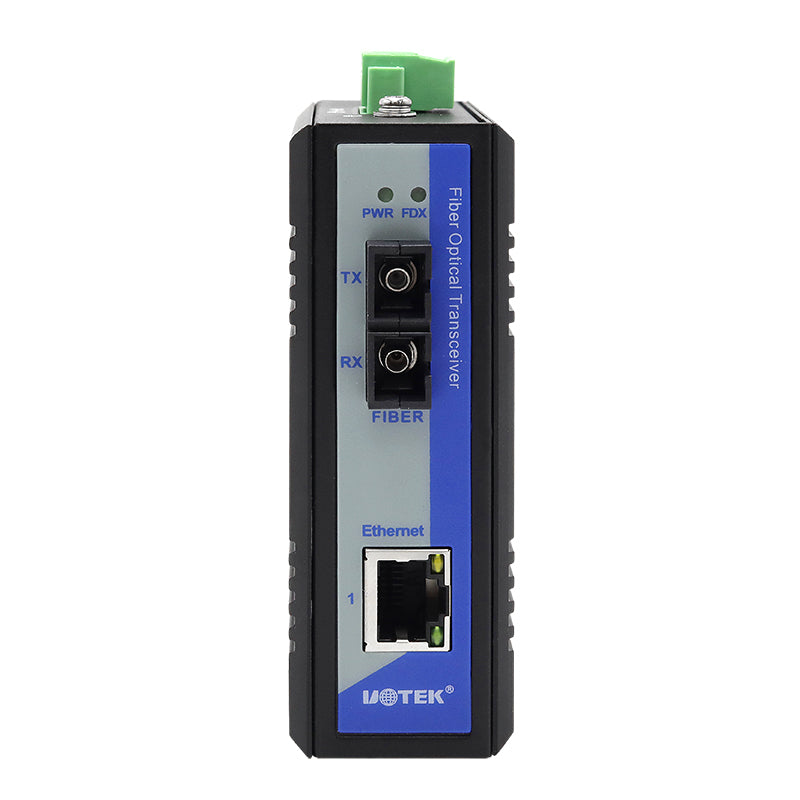

UOTEK UT-2601GC 1-Port Gigabit Network Fiber Optic Transceiver

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Interfaces

Fiber interfaces: 1*1000Base-X（SC/FC/ST）

RJ45 interface: 1*10/100/1000Base-T, auto detection, full/half-duplex,

 auto MDI/MDI-X

>>Switching Performance

Forwarding Rate: 1488095pps

Transmission mode: Store and Forward

MAC address size: 2K

Cache size: 1M

Backplane bandwidth: 6G

Max. frame length: 16KB

>>Mechanical Characteristics

IP protection level: IP40

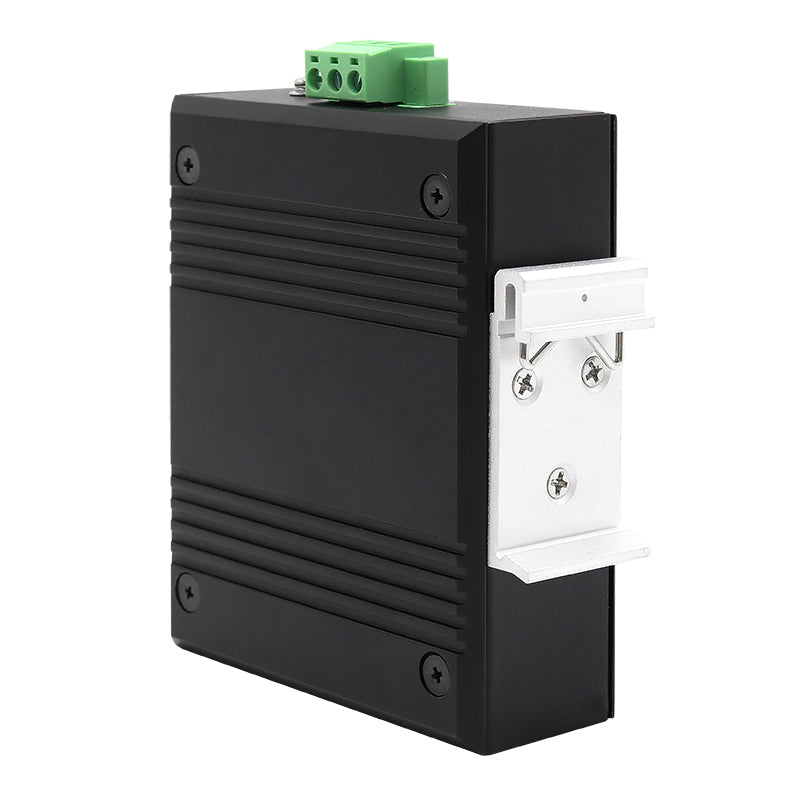

Installation: DIN-Rail Mounted

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption：100mA@24Vmax

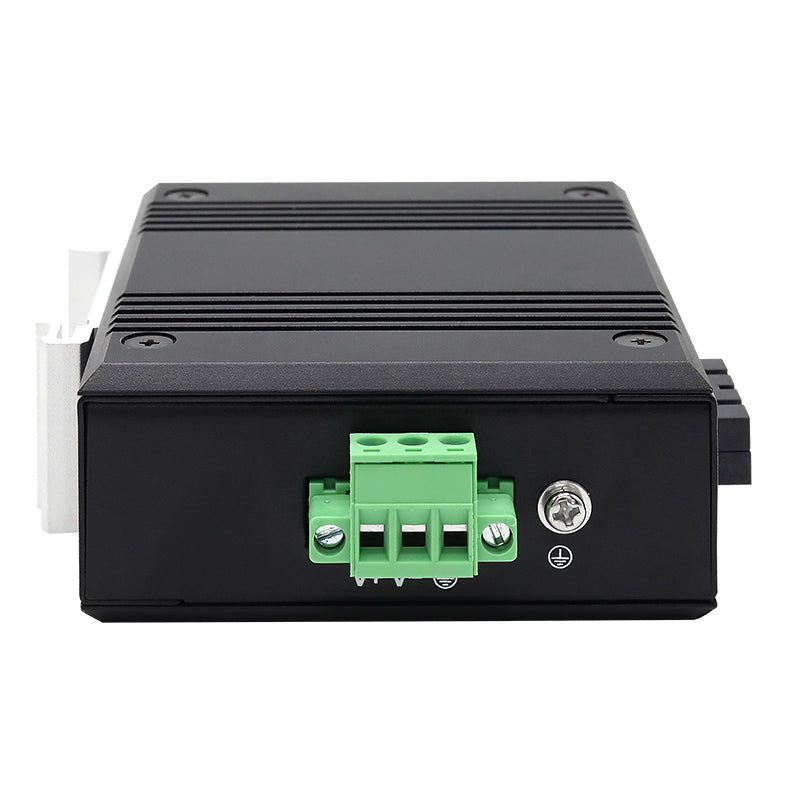

Terminal block: One pluggable 3-pin terminal block

Overload protection: Support

Reversal protection: Support

>>LED indicator light

PWR, FDX

>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Mechanical Dimension

Dimension (W x H x D): 100mm x 80mm x 35mm

Weight: 0.45kg

Packaging dimension: 180mm x 140mm x 45mm

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
