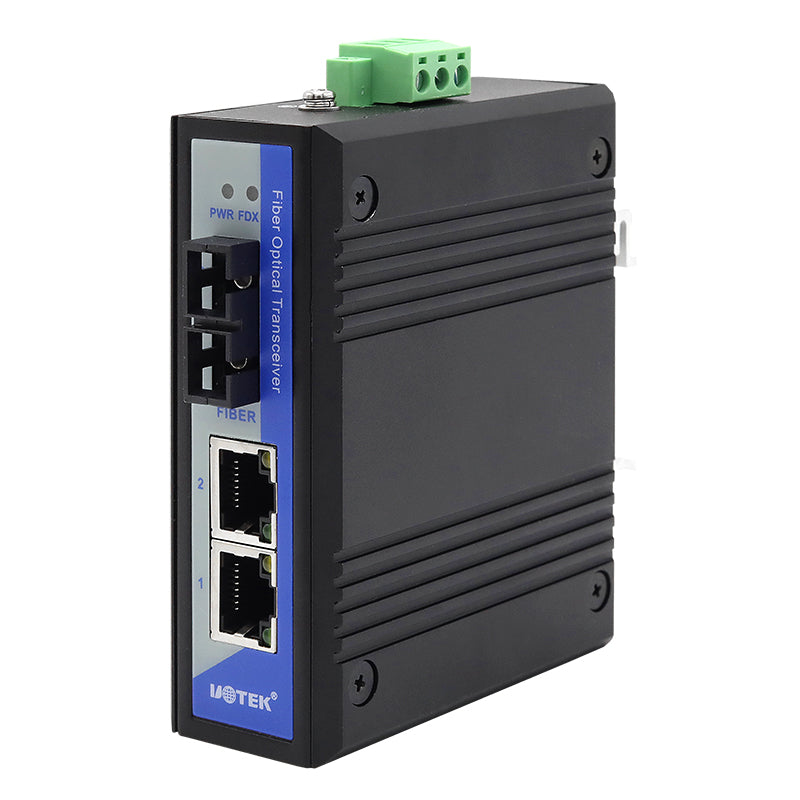

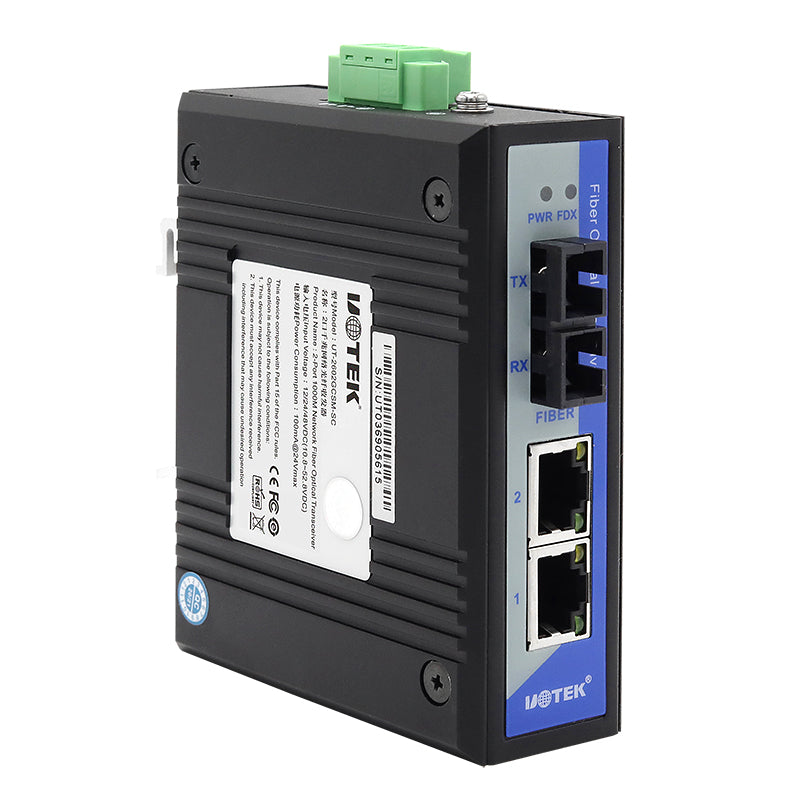

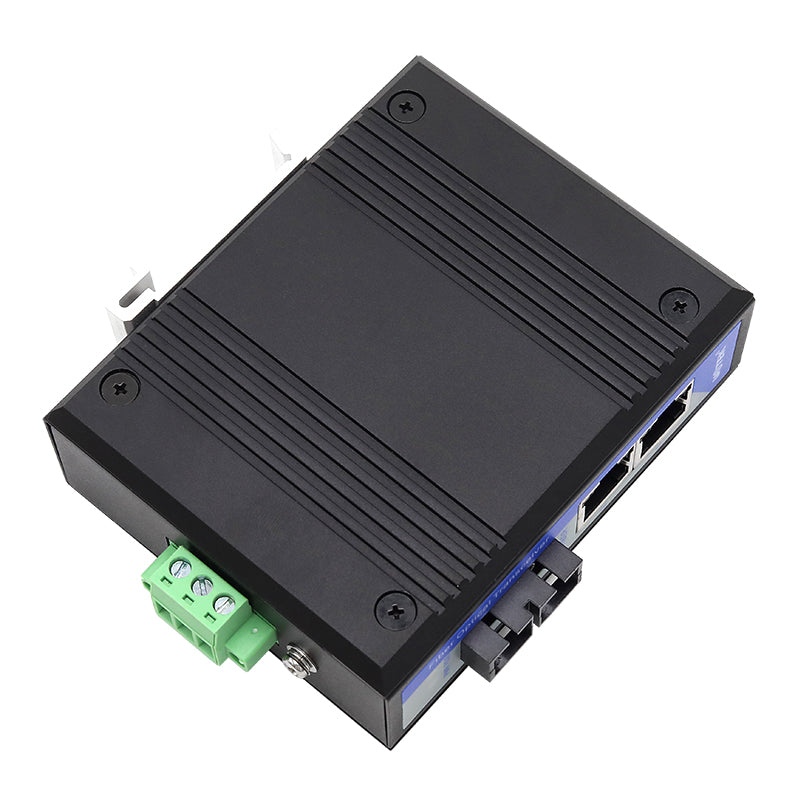

UOTEK UT-2602GC 2-Port Gigabit Network Fiber Optic Transceiver
>>Protocol Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

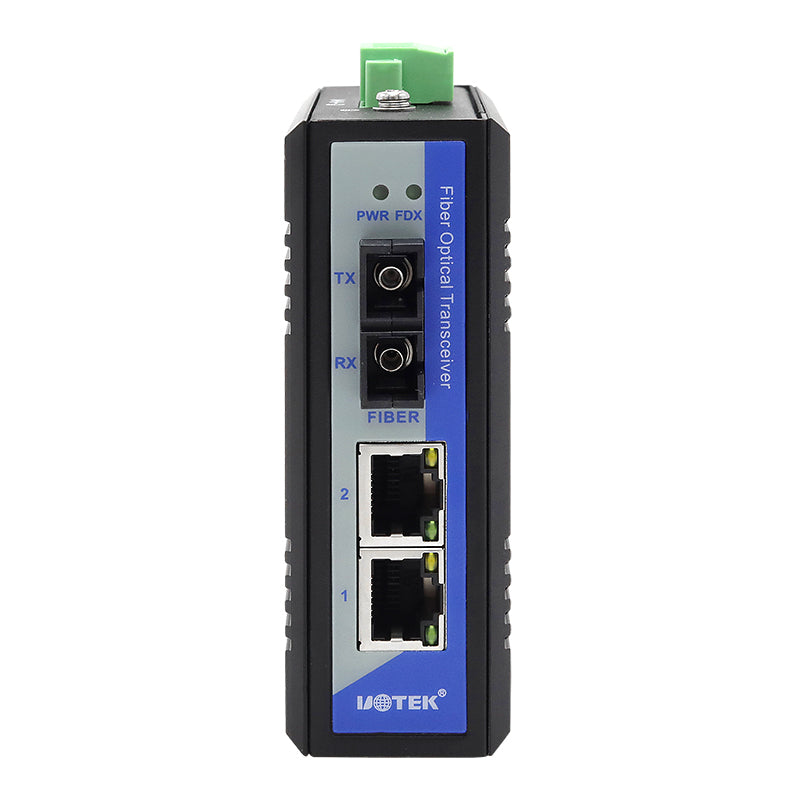

>>Interfaces
Fiber interfaces: 1*1000Base-X(SC/FC/ST)
RJ45 interface: 2*10/100/1000Base-T, auto-detection full/half-duplex, auto MDI/MDI-X
>>Switching Performance
Forwarding Rate: 1488095pps
Transmission mode: Store and Forward
MAC address size: 2K
Cache size: 1Mb
Backplane bandwidth: 6G
Max. frame length: 16KB
>>Mechanical Characteristics
IP protection level: IP40

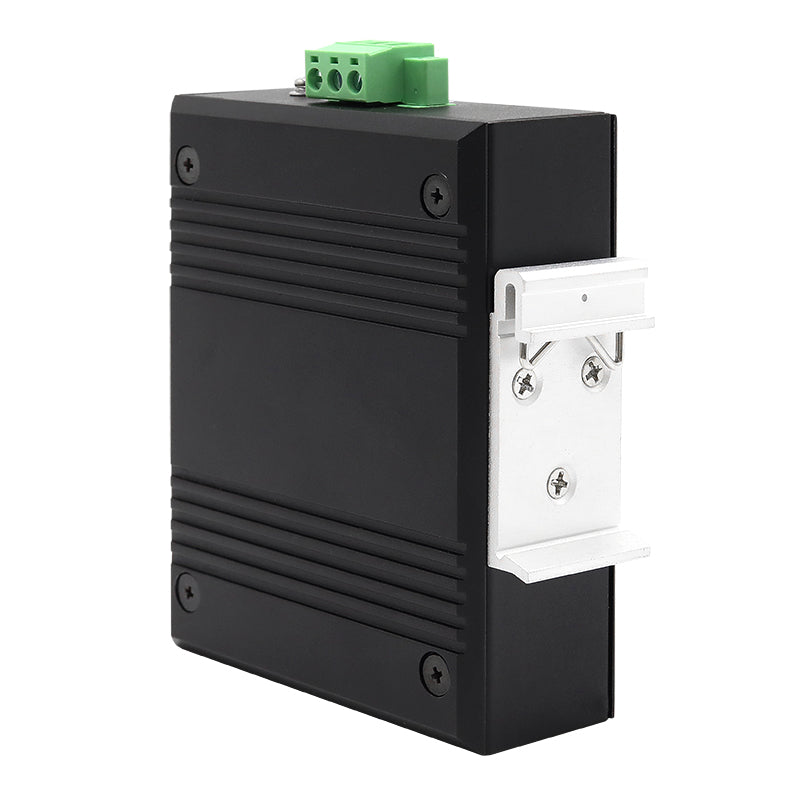

Installation: DIN-Rail Mounted
>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Power consumption:100mA@24Vmax

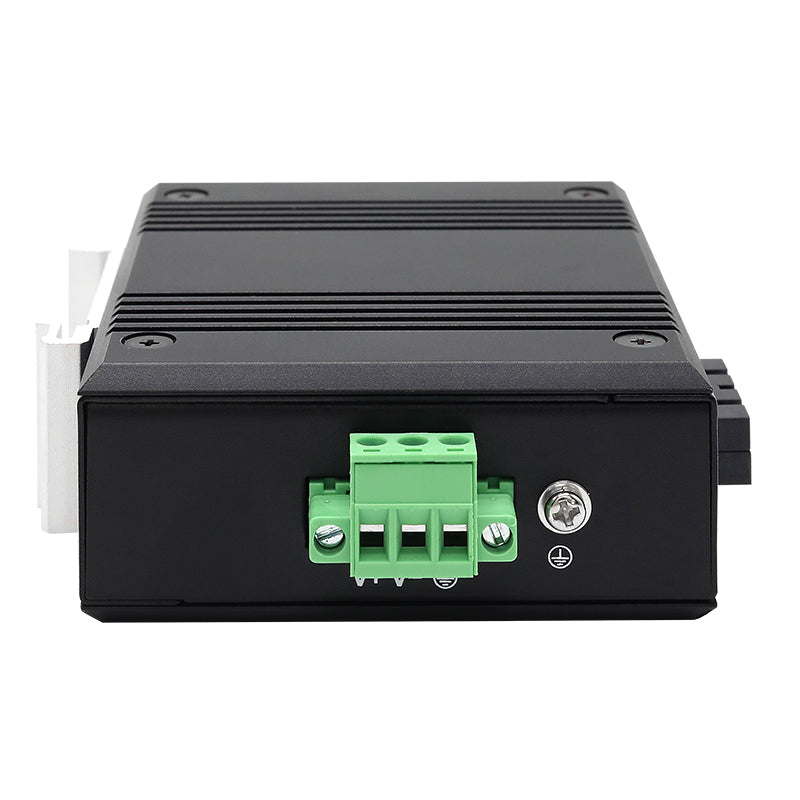

Terminal block: One pluggable 3-pin terminal block
Overload protection: Support
Reversal protection: Support
>>LED indicator light
PWR, FDX
>>Operating Environment
Operating temperature: -20 ~ 70°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0 ~ 95%
>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 35mm
Weight: 0.47kg
Packaging dimension: 280mm x 140mm x 45mm
>>Industrial Standards
EMI:
FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
