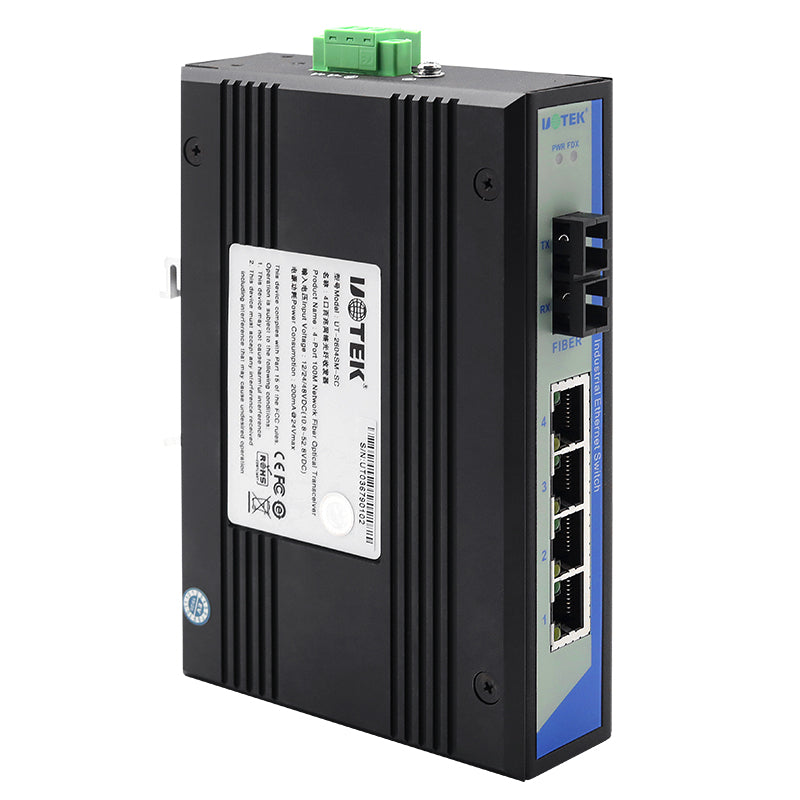

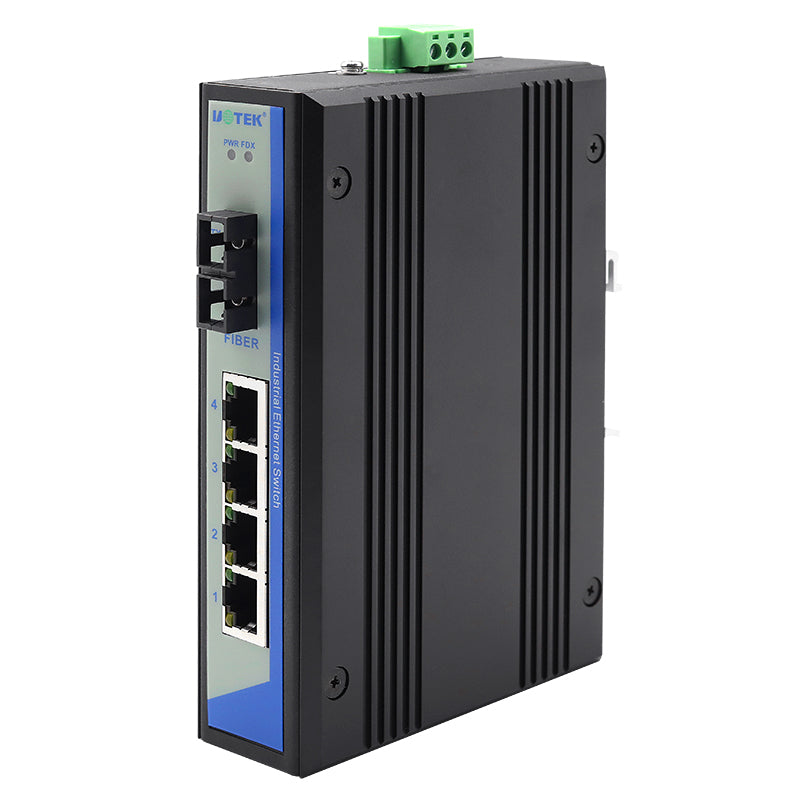

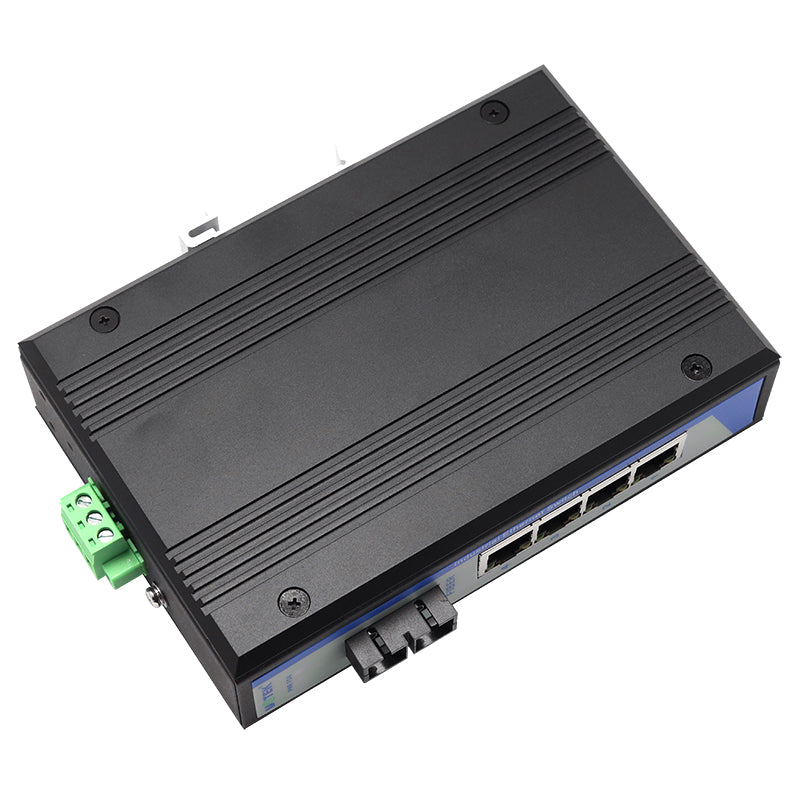

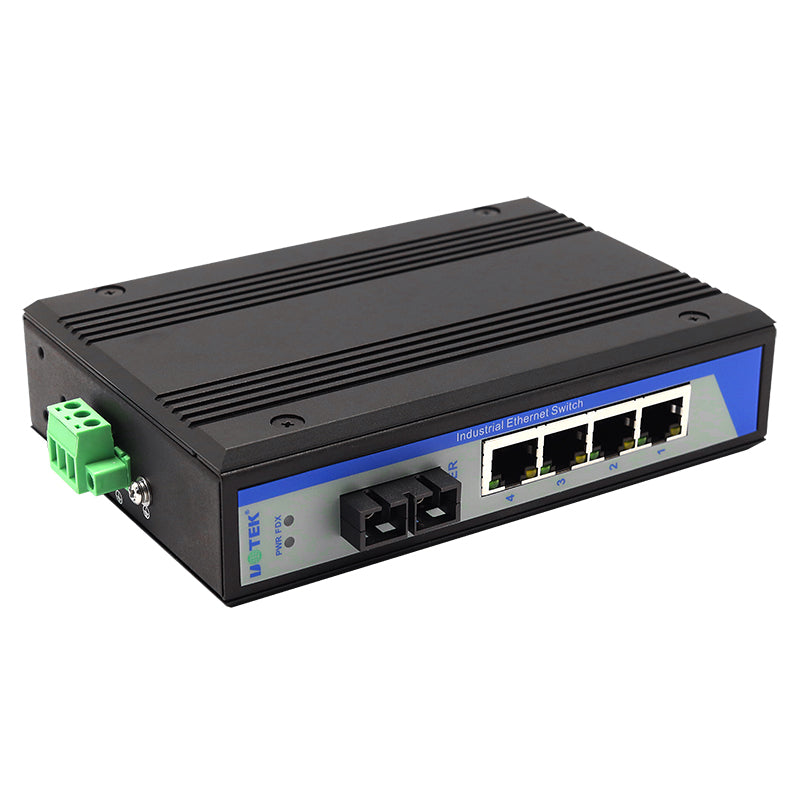

UOTEK UT-2604 4-Port 100M Network Fiber Optic Transceiver

• Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
• Supports full-duplex and half-duplex, auto negotiation
• Auto-10/100Mbps
• Fully automatic recognition of network interface
• Plug and play for easy access
• Operating temperature: -40~85°C
• Input voltage:12/24/48VDC(10.8~52.8VDC), supports reverse polarity protection
• Support various fiber optic interfaces(SC/ST/FC/SFP)

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX & 100Base-FX, IEEE 802.3x

>>Interfaces

Fiber interfaces: 1*100Base-FX（SC/FC/ST）

RJ45 interface: 4*10/100Base-TX, auto detection, full/half-duplex, auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

Patch cord

Single-mode: 1310nm 20/40/60Km

           1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail/Wall Mounted

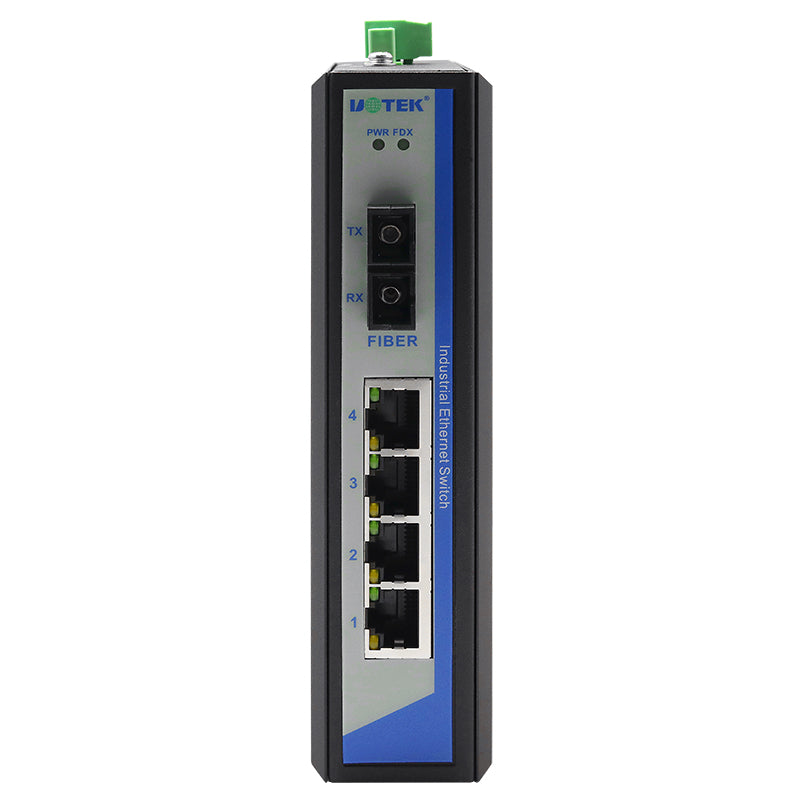

>>LED indicator light

PWR power light, FDX fiber indicator, RJ-45 indicator for ports 1~4

>>Switching Performance

Forwarding Rate: 148,810pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 0.5Mb

Backplane bandwidth: 1.2G

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption：200mA@24Vmax

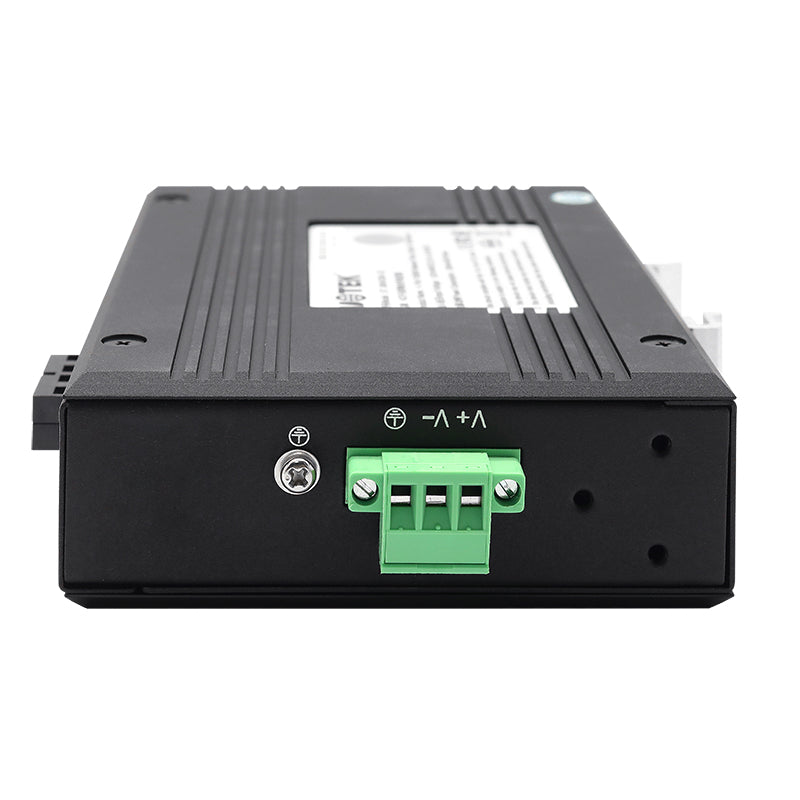

Terminal block: One pluggable 3-pin terminal block

Overload protection: Support

Reversal protection: Support

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 100mm x 37mm

Packaging dimension: 250mm x 205mm x 55mm

>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
