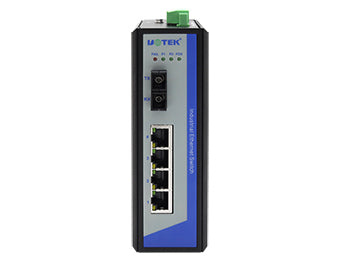

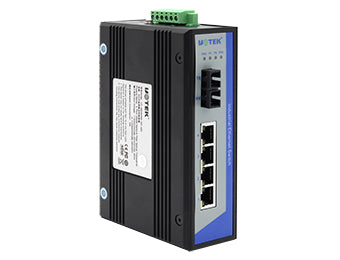

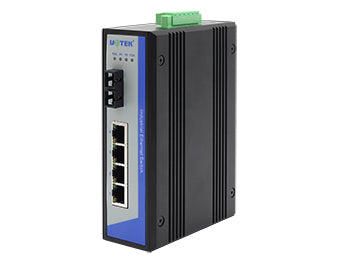

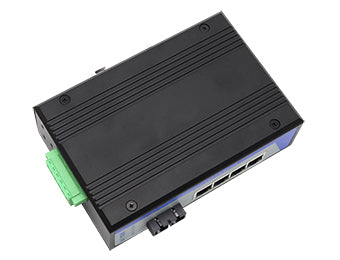

UOTEK UT-2604G-220 4-Port Gigabit Network Fiber Optic Transceiver

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Interfaces

Fiber interfaces: 1*1000Base-X（SC/FC/ST）

RJ45 interface: 4*10/100/1000Base-T, auto MDI/MDI-X

>>Transmission distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

          1550nm 80/100/120Km

Multimode: 1310nm 2Km

>>Switching Performance

Forwarding Rate: 1488095pps

Transmission mode: Store and Forward

MAC address size: 1K

Cache size: 1Mb

Backplane bandwidth: 12G

Max. frame length: 10KB

>>Power Requirement

Voltage input: 110/220VAC(88-264VAC)50-60Hz or 110/220VDC (88-264VDC) This device supports dual power redundant input

Power consumption: 10W

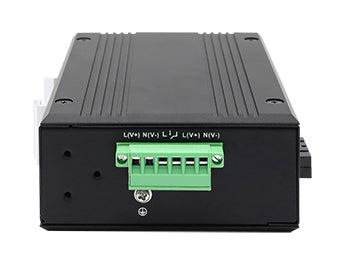

Terminal block: One pluggable 6-pin terminal block

>>Mechanical Characteristics

IP protection level: IP40

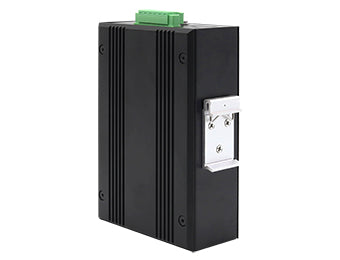

Installation: DIN-Rail/Wall Mounted

>>LED indicator light

PWR, FDX, RJ network

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 100mm x 47.6mm

Weight: 650g

Packaging dimension: 250mm x 205mm x 55mm

>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
