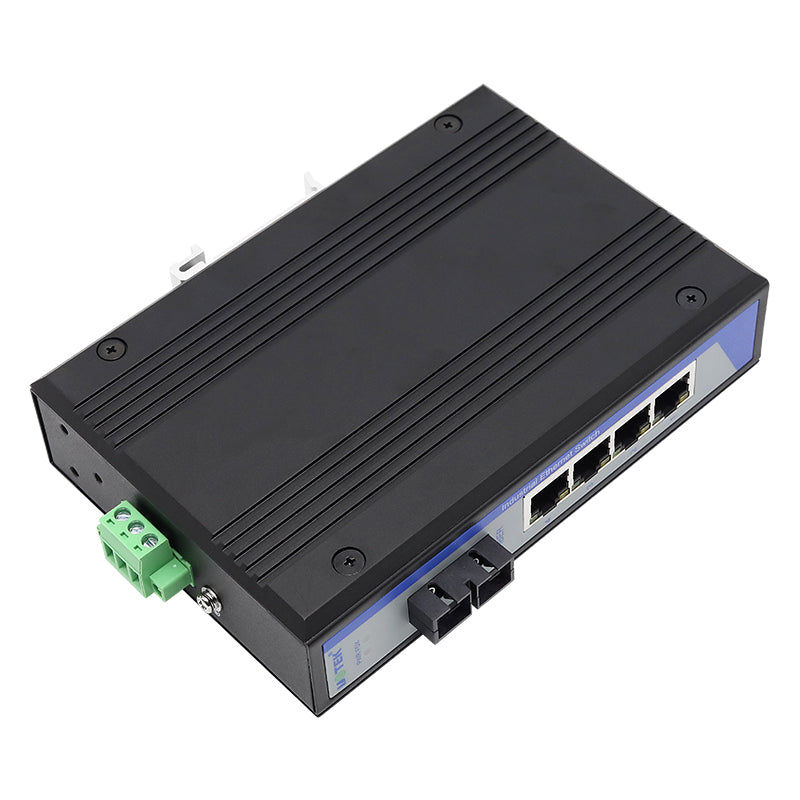

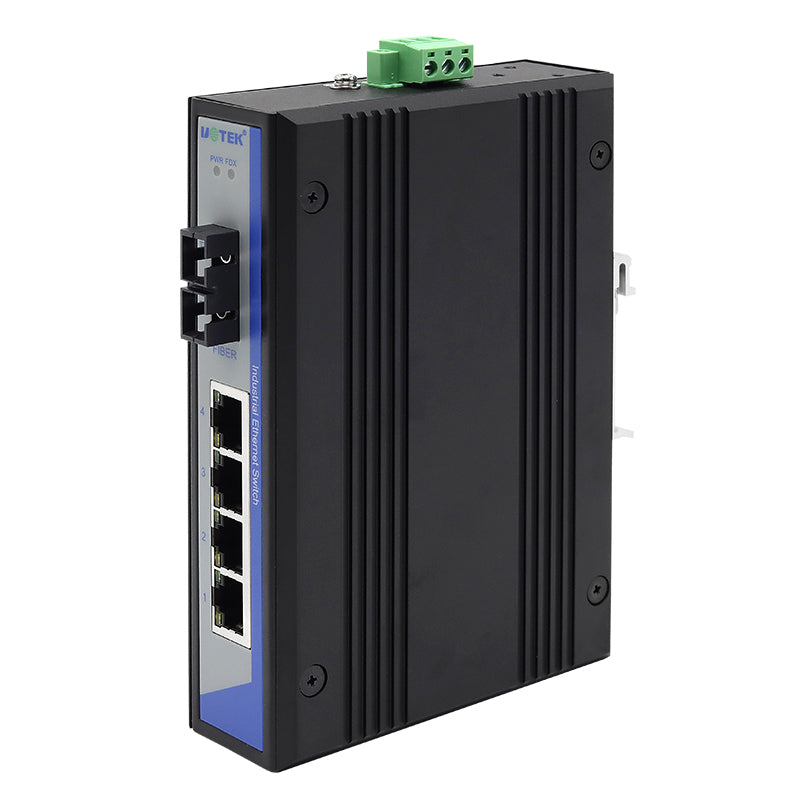

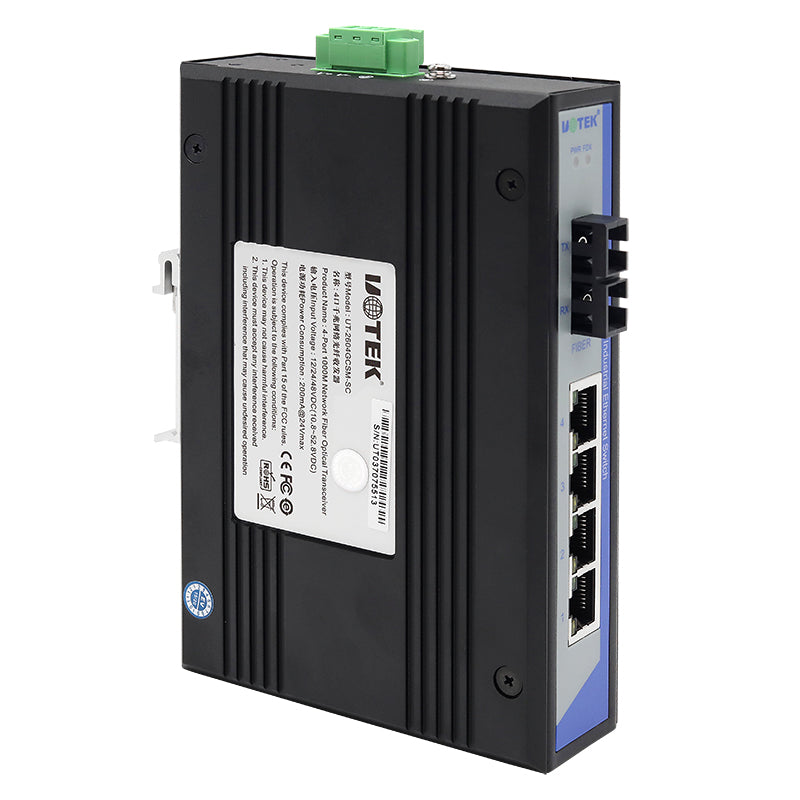

UOTEK UT-2604GC 4-Port Gigabit Network Fiber Optic Transceiver

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Interfaces

Fiber interfaces: 1*1000Base-X（SC/FC/ST）

RJ45 interface: 4*10/100/1000Base-T,auto MDI/MDI-X

>>Switching Performance

Forwarding Rate: 1488095pps

Transmission mode: Store and Forward

MAC address size: 2K

Cache size: 1Mb

Backplane bandwidth: 10G

Max. frame length: 16KB

>>Mechanical Characteristics

IP protection level: IP40

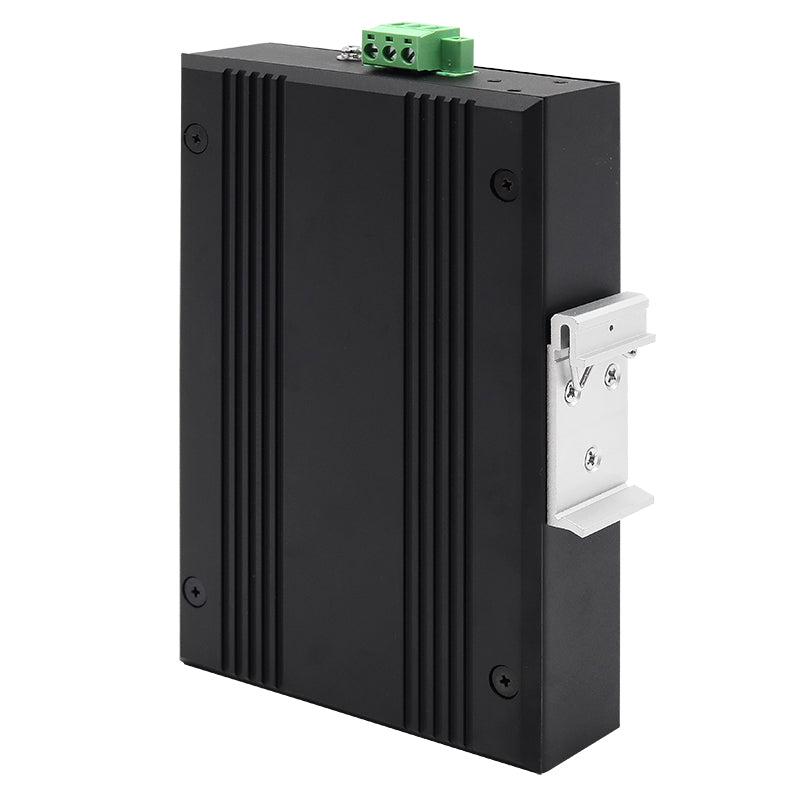

Installation: DIN-Rail /Wall Mounted

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption：200mA@24Vmax

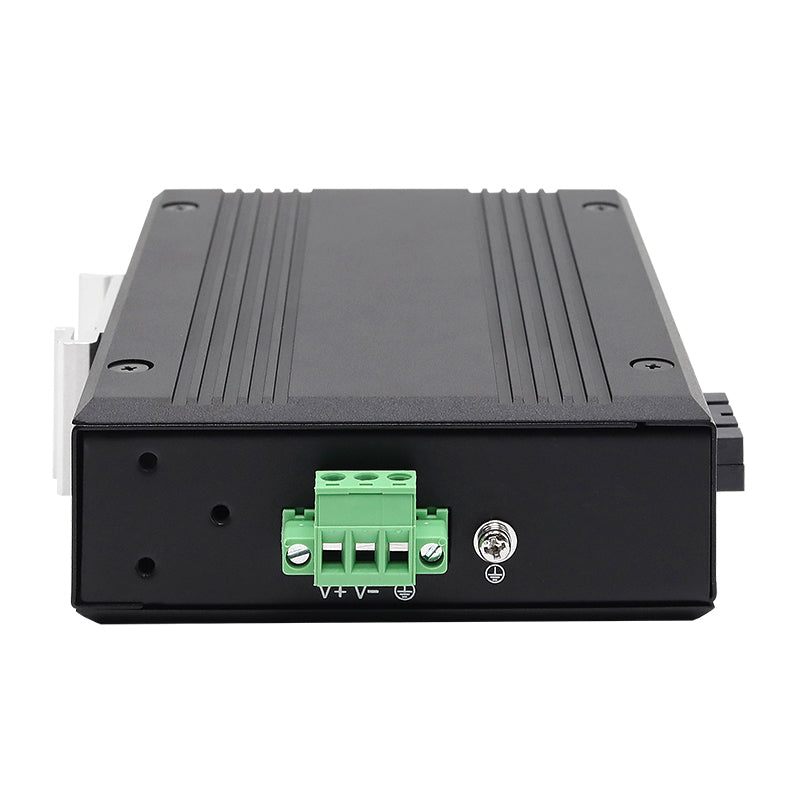

Terminal block: One pluggable 3-pin terminal block

Overload protection: Support

Reversal protection: Support

>>LED indicator light

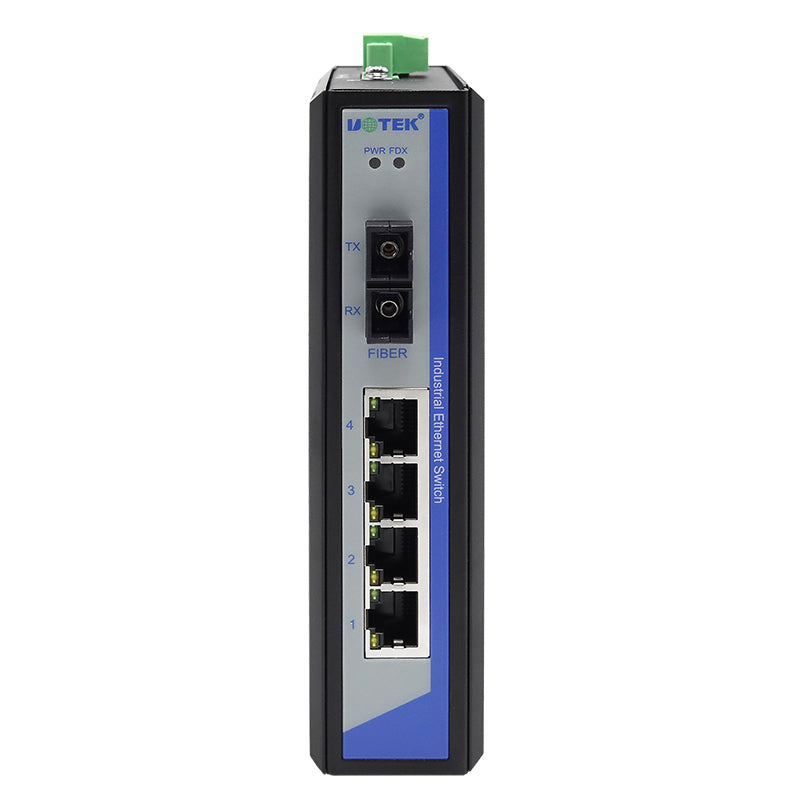

PWR, FDX

>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 100mm x 37mm

Weight: 0.85kg

Packaging dimension: 250mm x 205mm x 55mm

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
