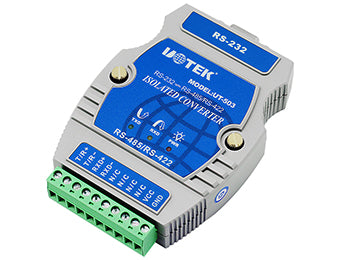

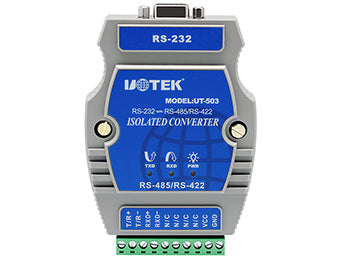

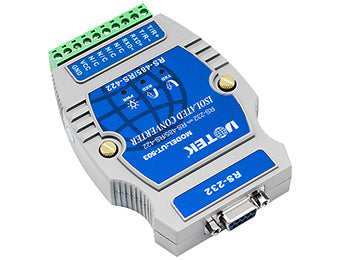

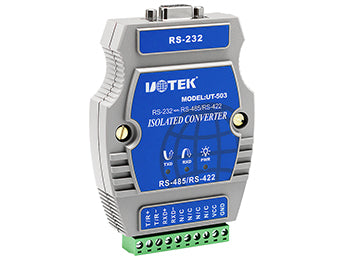

UOTEK UT-503 Industrial RS-232 to RS-485/422 Converter with Isolation

$42.22 ~~$47.00~~

Tax included. Shipping calculated at checkout.

Standards: RS-232C/ RS-485, /RS-422 EIA/TIA
RS-232 DB9 female connector input; RS-422/485 10 bits terminal block output
Port protection: RS-232 ±15KV ESD protection;RS-422/485 each line 600W surge, lightning protection
Isolation: isolated voltage 2,500VRMS 500VDC
Working mode: asynchronous half-duplex or full-duplex
LEDs for indicating PWR TXD, and RXD activity
Transmission media: twisted-pair or shielded cable
Baud rate: 115.2Kbps to 300m

38.4Kbps to 2.4Km

9,600bps to 5Km
