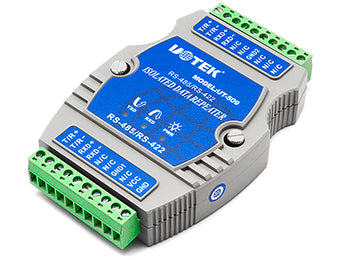

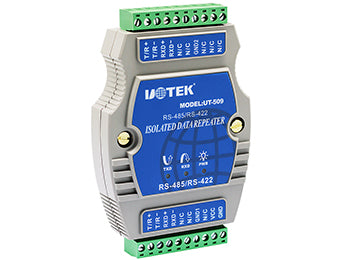

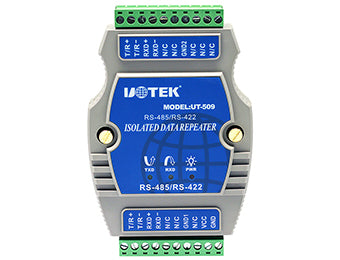

UOTEK UT-509 Industrial RS-485/422 Repeater with Isolation
Regular price
$46.98
Sale price
$52.00
Tax included.
Shipping calculated at checkout.
- Standards: RS-485, RS-422 TIA/EIA
- Automatic data direction control, no need external flow control signal (RTS)
- Extends transmission distance; enhance the reliability of the RS-485/422 networking
- Baud rate: 300bps-115.2Kbps
- Allows connecting 128 sets RS-485 or RS-422 device
- Transmission distance: 5,000m (9,600bps)
- Operating power: 9-30VDC/350mA
- Power & data flow indicator, failure detection
- Working mode: asynchronious half-duplex (RS-485) or full-duplex (RS-422), without jumper setting
- Enhanced optical isolation (isolated voltage: 2.5KVrms/500VDC insulative), DC/DC module, provides with 600W lightning, surge, ±15KV ESD protection each line.
- Connector: dual 10-pin terminal block
- Transmission media: twisted-pair or shielded cable
- Dimension: 120×80×25mm
- Operating temperature: -40 ~ 85℃
- Relative humidity: 5 ~ 95%
- Works with all communication software, plug & play
- Supports all operating system
