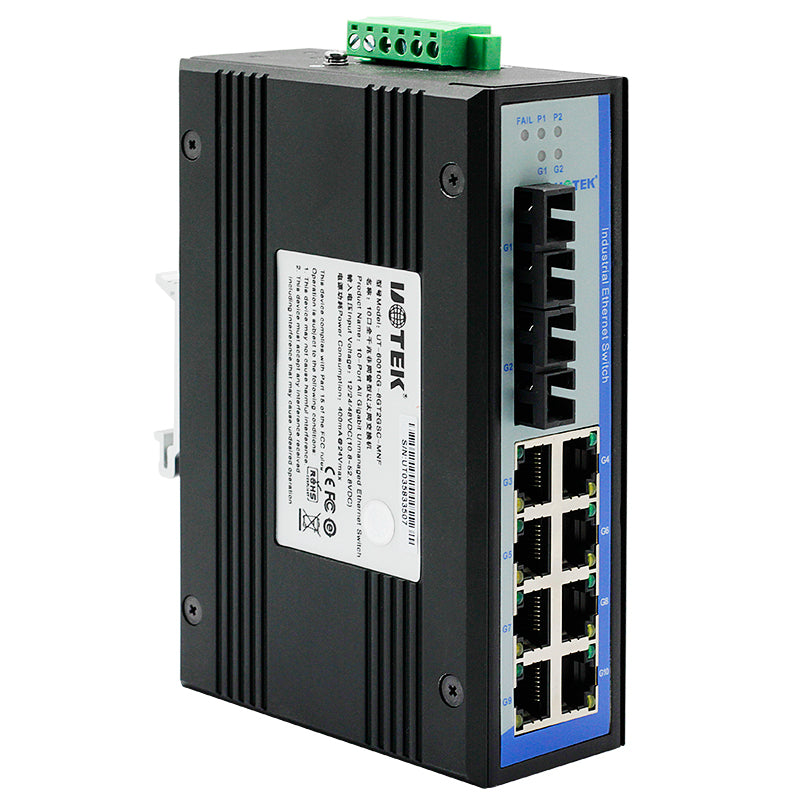

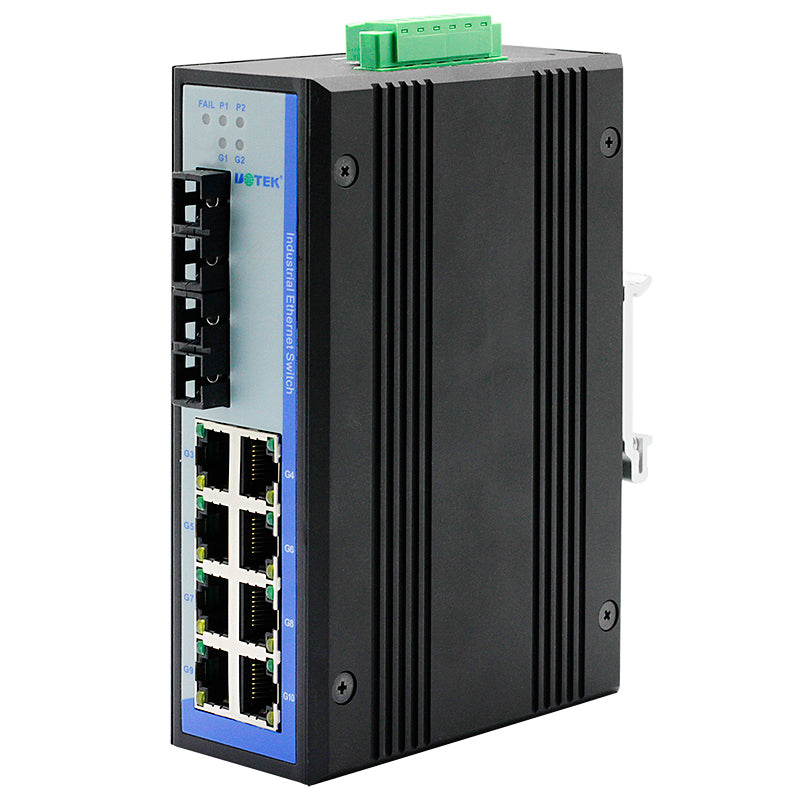

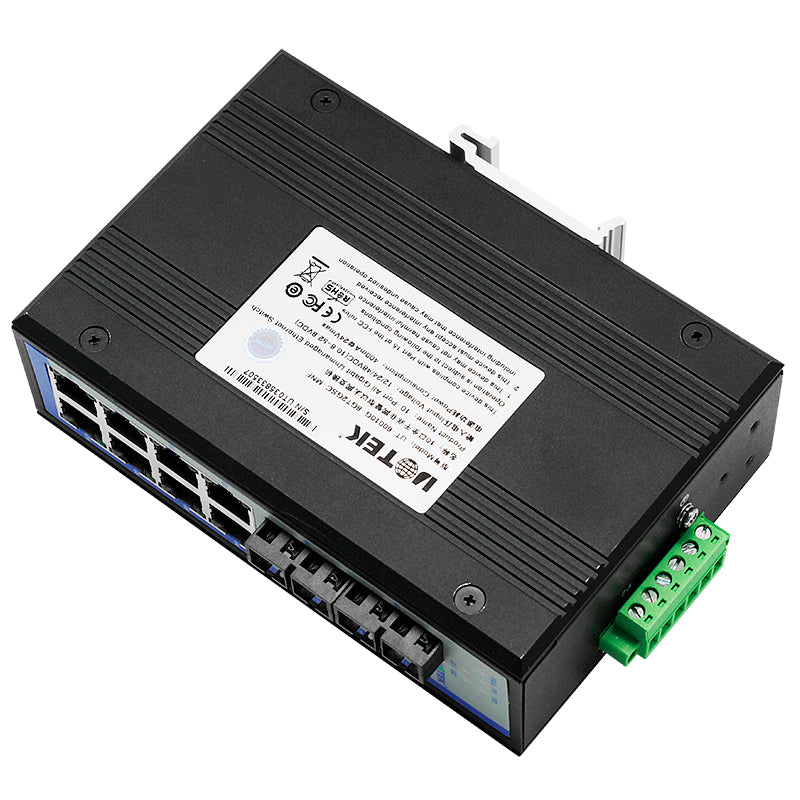

UOTEK UT-60010G Gigabit 10-Port unmanaged Ethernet Switch

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Interfaces

Fiber port: 1000Base-X(SC/FC/ST/SFP)

RJ-45 port: 10/100/1000Base-T, auto MDI/MDI-X

LED indicators: P1, P2 power indicator, FAIL power failure light, G1, G2 fiber indicator, RJ-45 indicator

Alarm contacts: one relay output, normally open and normally closed capacity 1A @ 24VDC

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1,310nm  20/40/60Km

            1,550nm  80/100/120Km

Multi-mode: 1,310nm 2Km

>>Power consumption

Max. input power consumption 400mA@24Vmax

>>Switching Performance

Forward rate: 1488095pps

Transmission mode: store and forward

MAC address size: 16K

Cache size: 2Mb

Backplane bandwidth: 22G

Max. frame length: 10KB

>>Power Requirement

Voltage input: with optional 12/24/48VDC(10.8~52.8VDC) and 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

Supports redundant dual power input

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail /Wall Mounted

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 1600g

Packaging dimension: 250mm x 205mm x 108mm

>>Operating Environment

Operating temperature: -40 ~ 85 °C

Storage temperature: -40 ~ 85 °C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI:

FCC Part 15, CISPR(EN55022)class A

EMS:

IEC(EN)61000-4-2(ESD）

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8

IEC60068-2-27( Shock)
IEC 60068-2-32(Freefall)
