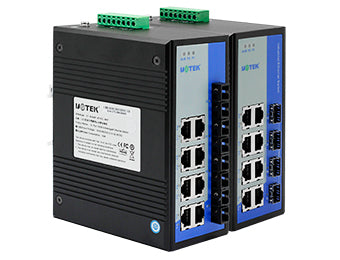

UOTEK UT-60408F 8+4G Gigabit Unmanaged Ethernet Switch

>>Standards

IEEE 802.3, IEEE 802.3u

>>Interface

Fiber port:  100Base-FX(SC/FC/ST)

                  1000Base-X(SC/FC/ST)

RJ-45 port: 10/100Base-T(X), auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

>>Fiber Patch Cord

Single-mode: 1,310nm   20/40/60Km

                     1,550nm   20/40/60/80/100/120Km

Multi-mode:   1,310nm   2Km

>>Switching Performance

Forwarding rate:

100M ports: 148,810pps

1000M ports: 1,488,095pps

Transmission mode: store-and-forward

MAC address buffer: 8K

Switching bandwidth: 9.6G

>>Power Requirement

Voltage input: with optional 12/24/48VDC(10.8~52.8VDC) and 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

>>Power Consumption

Fullload: <20W

>>Mechanical Characteristics

IP rating: IP40

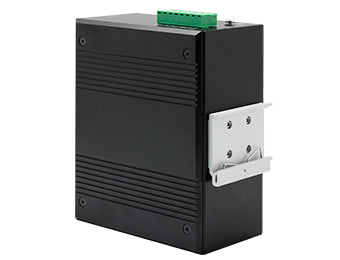

Installation: DIN-Rail

>>Dimension

Dimension(W×H×D): 150 mm×70mm×120mm

>>Environment

Operating temperature: -40℃~85℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95%(non-condensing)

>>Industrial Standards

EMI: FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
