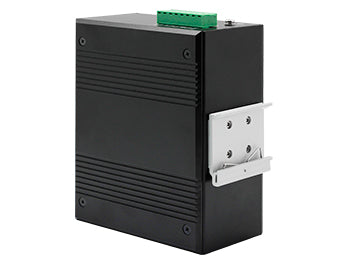

UOTEK UT-60416F 16+4G Gigabit Unmanaged Ethernet Switch

>>Standards
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab

>>Ports
Fiber ports: 100Base-FX(SC/FC/ST)
                    1000Base-X(SFP slot)
RJ-45 ports: 10/100Base-T(X), auto MDI/MDI-X

>>Transmission Distance
Cat. 5e: 100m

>>Fiber Patch Cord
Single-mode: 1,310nm   20/40/60Km
                     1,550nm   20/40/60/80/100/120Km
Multi-mode:  1,310nm   2Km

>>Switching Performance

Forwarding rate:

100M ports: 148,810pps

1000M ports: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 8K
Switching bandwidth: 11.2G

>>Power Requirement
Voltage input: 110/220VAC(88~264VAC)/50-60Hz or
                       110/220VDC(88~264VDC)
supports redundant dual power input

>>Power Consumption
Rated power: 20W

>>Mechanical Characteristics
IP rating: IP40
Weight: <2000g
Installation: DIN-Rail

>>Dimension
Dimension(W×H×D): 150 mm×70mm×120mm

>>Environment
Operating temperature: -40℃~75℃
Storage temperature: -40℃~75℃
Relative humidity: 0~95%(non-condensing)

>>Industrial Standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
