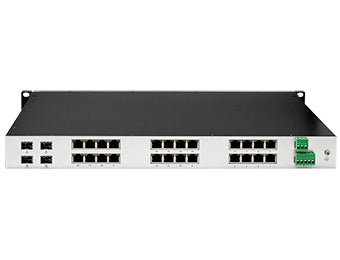

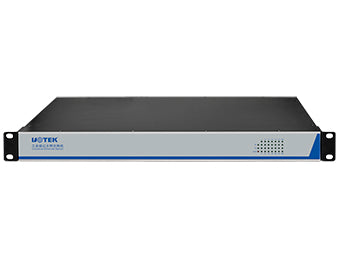

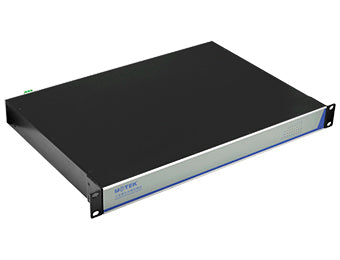

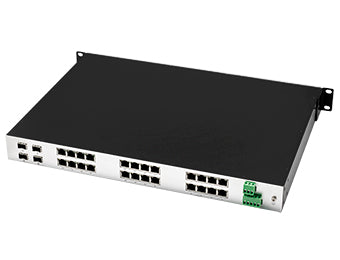

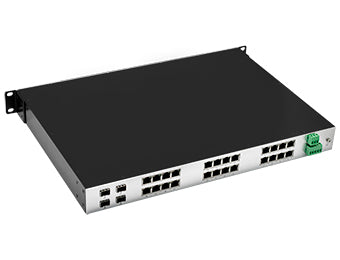

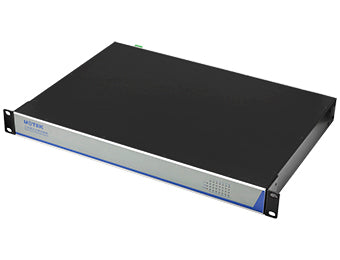

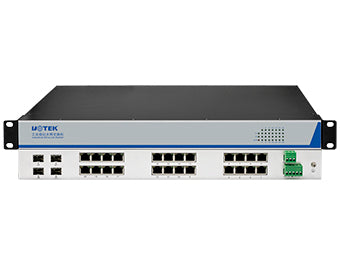

UOTEK UT-60424G 24+4G Rackmount Gigabit Unmanaged Industrial Ethernet Switch

$542.99 ~~$1,350.00~~

Tax included. Shipping calculated at checkout.

Quantity

>>Standards & protocol
Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab

>>Ports
Fiber ports: 1000Base-X(SC/FC/ST/SFP slot)
RJ45 ports: 10/100/1000Base-T(X), auto MDI/MDI-X

>>Transmission distance
Cat 5e: 100m
Fiber module:
Single-mode: 1310nm   20/40/60Km
               1550nm   80/100/120Km
Multi-mode: 1310nm   2Km

>>Switching performance
Forwarding rate: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 16K
Backplane bandwidth: 56G

>>Power requirement
Voltage input:
Option 1: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC), single power
Option 1: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC), dual power

>>Power consumption
Rated power: 30W

>>Mechanical characteristics
IP rating: IP40
Weight: <4,440g
Installation: rackmount

>>Dimension
Size (W×H×D): 440mm×44mm×315mm

>>Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity: 0~95%(non-condensing)

>>Industrial standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
