UTEK Technology

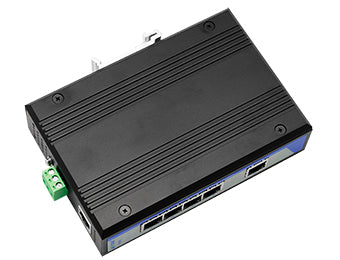

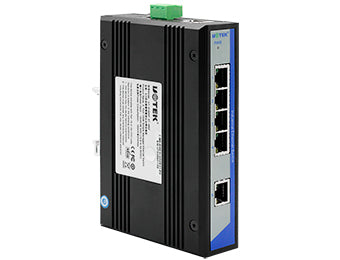

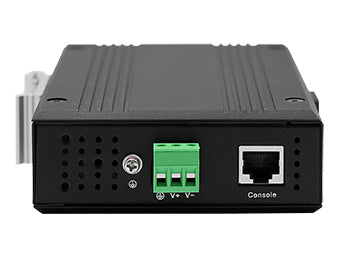

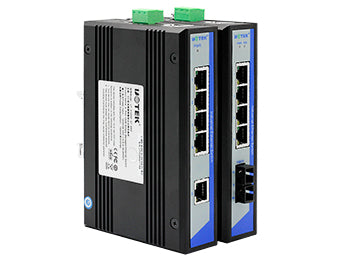

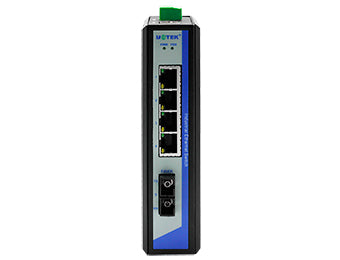

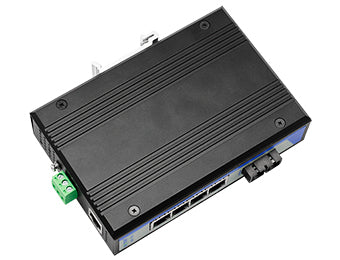

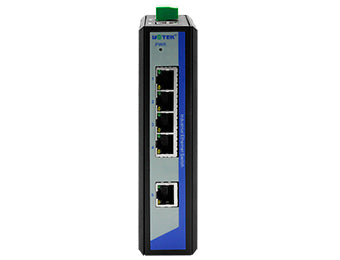

UOTEK UT-61005F 100M 5-Port Managed Ethernet Switch

$103.99 ~~$190.50~~

Tax included. Shipping calculated at checkout.

>>Standards & Management
Standards: IEEE 802.3, IEEE 802.3u
Management: SNMP v1/v2c/v3, CLI(console, telnet), WEB management, supports RSTP, port management, LLDP, SNTP, DHCP client, visitor management, system management

>>Ports
RJ-45 port: 4 x 10/100Base-TX ports, auto detection, full/half duplex, auto MDI/MDI-X

With optional 1 10/100Base-TX port or 100Base-FX port(SC/ST/FC)

>>Fiber module
Single-mode: 1,310nm 20/40/60Km
1,550nm 20/40/60/80/100/120Km
Multi-mode: 1,310nm 2Km

>>Transmission Distance
RJ-45: 100m

>>Switching Performance
Forwarding rate: 148,810pps
Transmission mode: store-and-forward
MAC address buffer: 1K
Switching bandwidth: 1.2G
LED indicators: PWR, FDX(only for model with fiber port)

>>Power Requirement
Voltage input: 12/24/48 VDC (10.8 to 52.8VDC)
Power consumption: 150mA@24Vmax

>>Mechanical Characteristics
IP rating: IP30
Weight: 680g
Installation: DIN-Rail or wall-mounted

>>Industrial Standards
EMI : FCC Part 15, CISPR (EN55022) class A
EMS: IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
