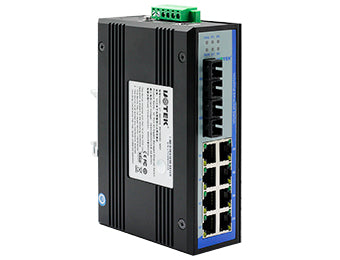

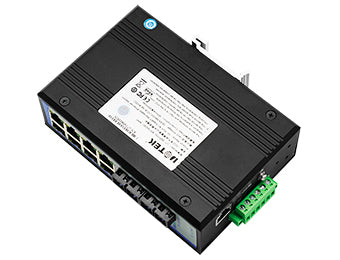

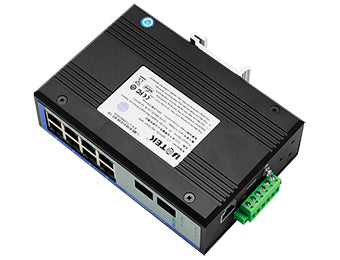

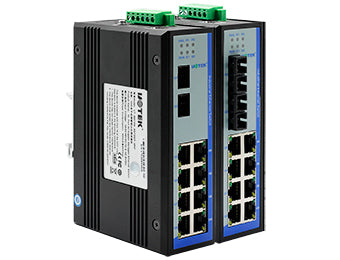

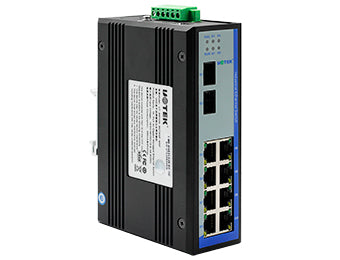

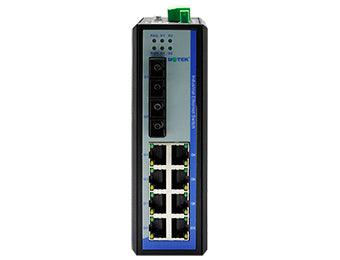

UOTEK UT-62010G 10-Port Full Gigabit Managed Ethernet Switch

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,

IEEE 802.1D , IEEE 802.1W, IEEE 802.1s , IEEE 802.3x , IEEE 802.1Q , IEEE 802.1p , IEEE 802.1x IEEE 802.1Q , IEEE 802.1p, IEEE 802.1x

>>Interfaces

Fiber optic interface: 1000Base-X port (SC/FC/ST/SFP slot)

RJ45 interface: 10/100/1000Base-T(X) port, auto-MDI/MDI-X

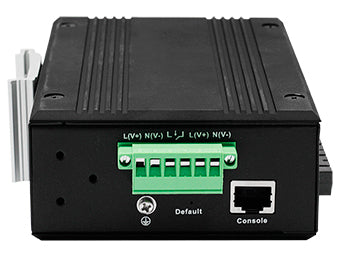

Console interface: RS-232 (RJ45)

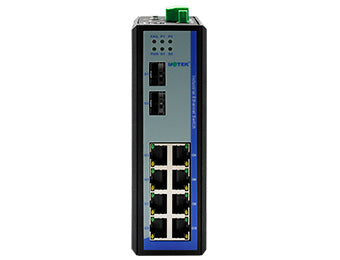

LED indicators: P1, P2 power indicator, FAIL power failure light, the RUN indicator, G1, G2 fiber indicator, RJ-45 indicator

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1,310nm  20/40/60Km

            1,550nm  80/100/120Km

Multi-mode: 1,310nm 2Km

>>Switching Performance

Forwarding rate: 1,488,095pps

Transmission mode: store and forward

MAC address size: 16K

Cache size: 2Mb

Backplane bandwidth: 22G

Max. frame length: 10KB

>>Power Requirement

Voltage input:

with optional 12/24/48VDC(10.8~52.8VDC) Redundant inputs support reverse connection protection

>>Power consumption

Max. input power consumption 400mA@24Vmax

>>Mechanical Characteristics

IP protection level: IP40

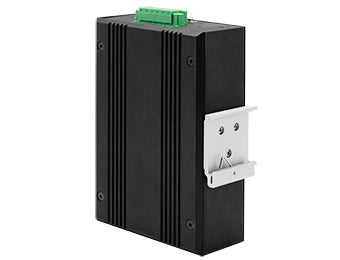

Installation: DIN-Rail / Wall Mounted

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 850g

Packaging dimension: 250mm x 205mm x 55mm

>>Operating Environment

Operating temperature: -40 ~ 85 °C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI：

FCC Part 15，CISPR (EN55022) class A

EMS：

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
