UOTEK UT-62204 100M 6-Port Unmanaged Ethernet Switch

Regular price $95.55 Sale price $140.00 Unit price per
Tax included. Shipping calculated at checkout.

>>Protocol Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX and 100Base-FX

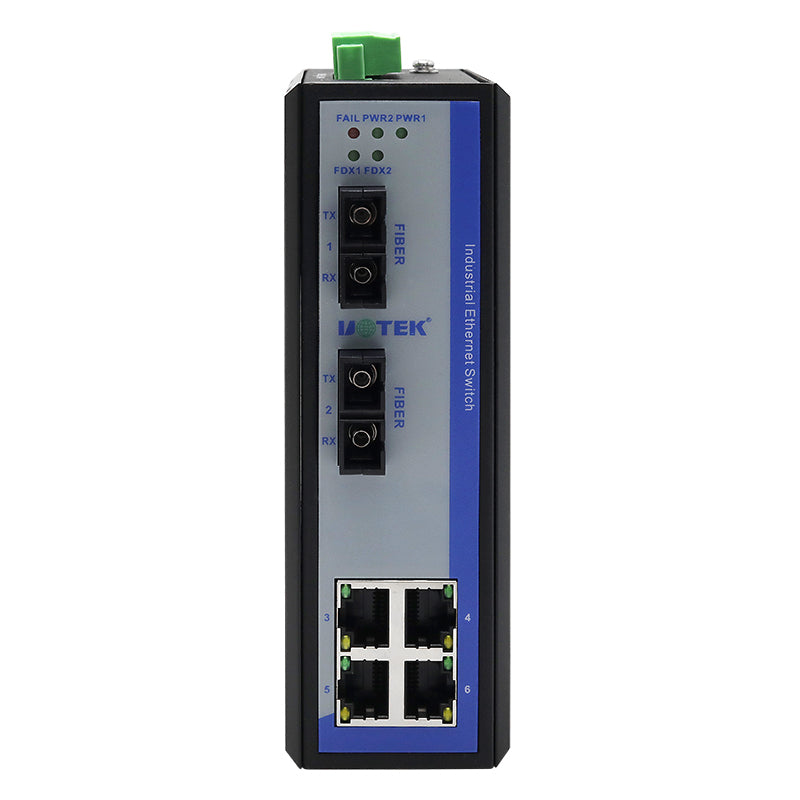

>>Interfaces

Fiber optic interface: 2 100Base-FX port (optional SC, ST, FC)

RJ45 port: 4 10/100Base-TX ports, auto-detection, full/half duplex, auto-MDI/MDI-X



>>Switching Performance

Forwarding rate: 148810pps

Transmission mode: store and forward

MAC address size: 2K

Cache size: 1Mb

Backplane bandwidth: 2G



>>LED indicator light

Power indicator, power failure light, fiber optic indicator, RJ-45 indicator

Alarm contacts: 1 relay output, normally open and normally closed capacity 1A @ 24VDC



>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC), Dual power redundant input

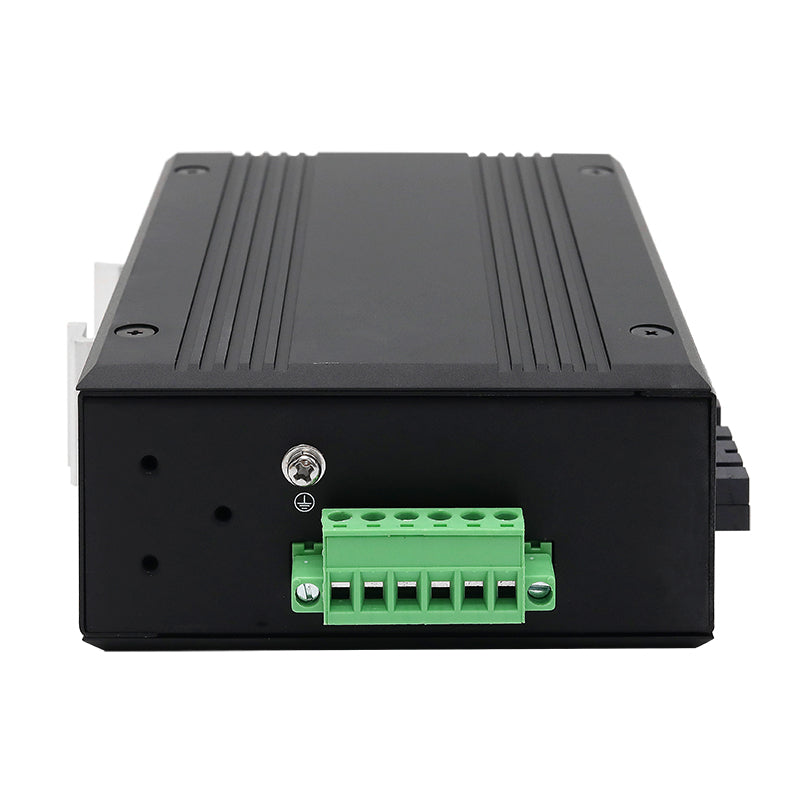

Interface terminal: 1 pluggable 6-pin terminal block

Overload protection: Support

Reverse connection protection: Support



>>Power consumption

300mA@24Vmax



>>Mechanical Characteristics

IP protection level: IP40

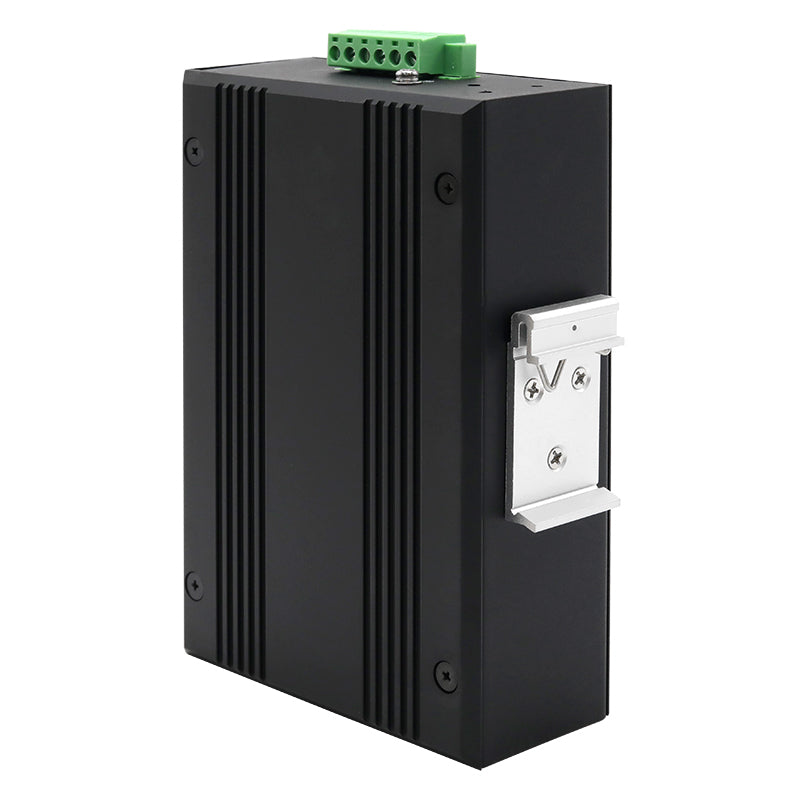

Installation: DIN-Rail /WALL Mounted



>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 745g

Packaging dimension: 250mm x 205mm x 55mm


>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)



>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA,EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
