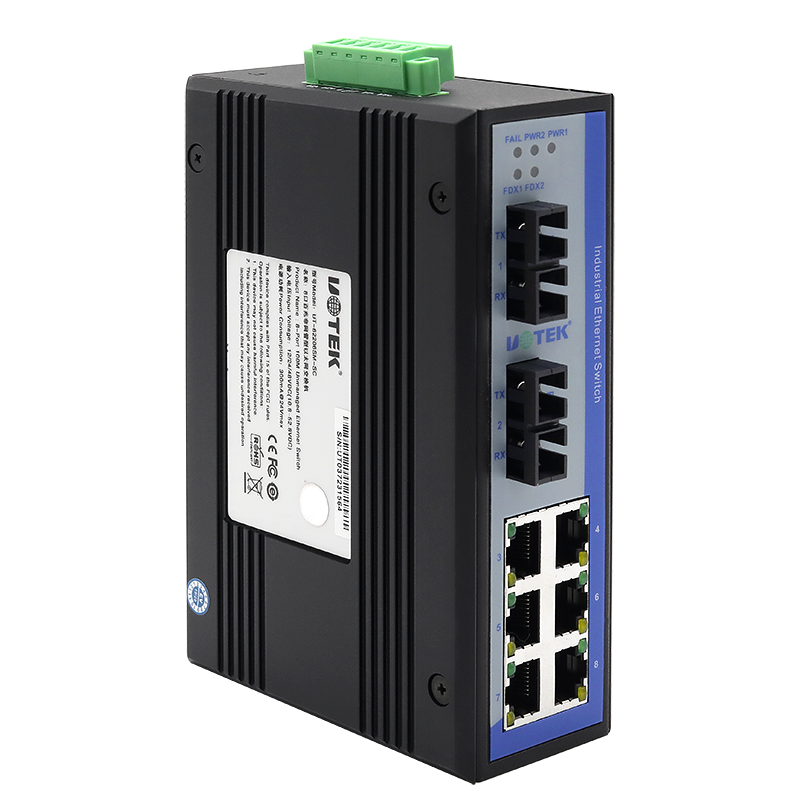

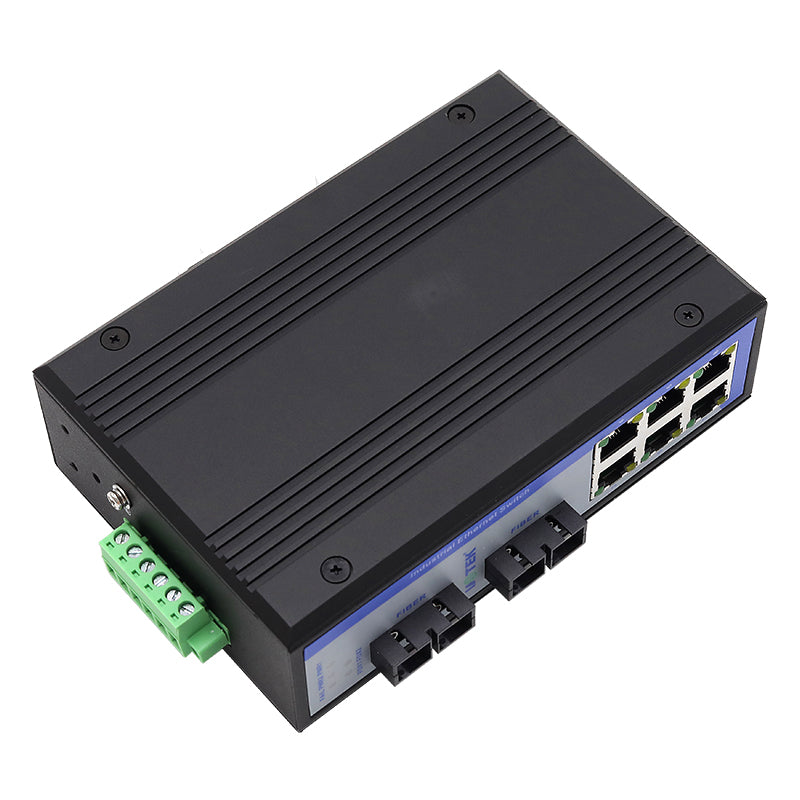

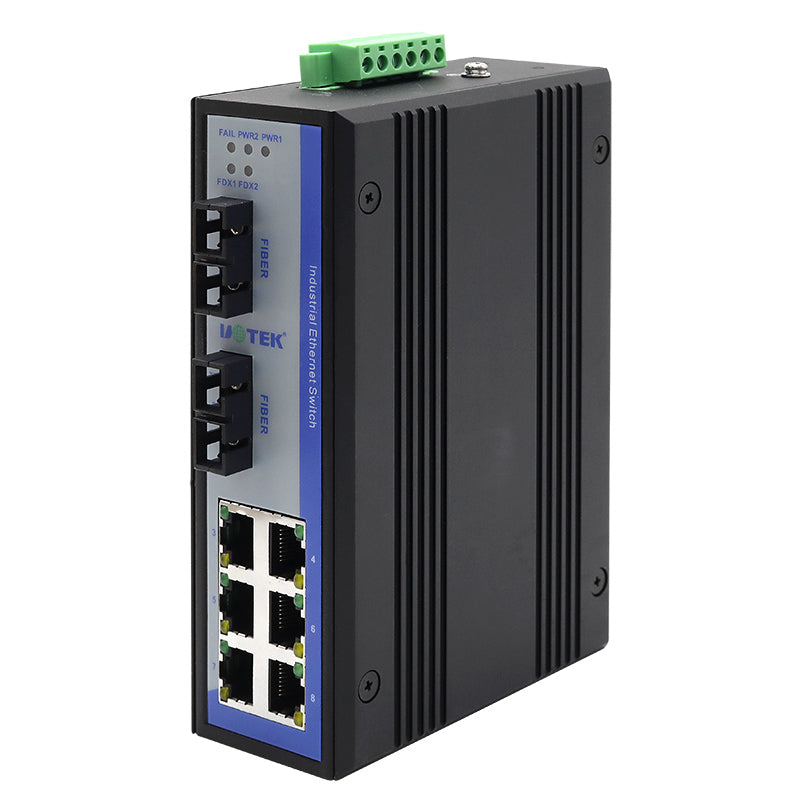

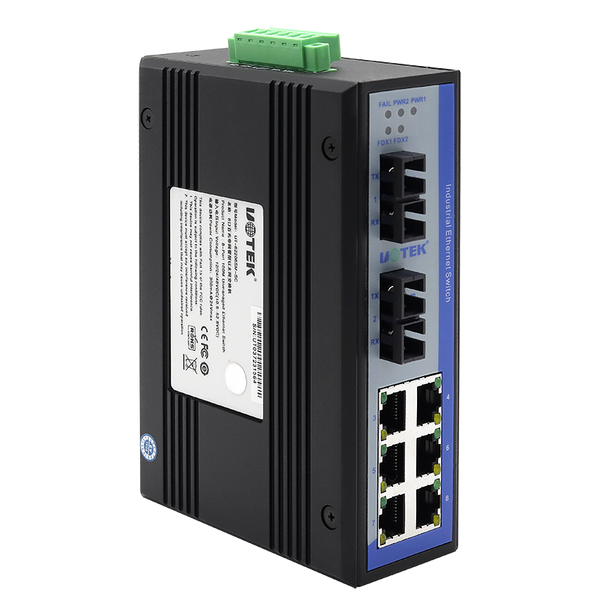

UOTEK UT-62206 100M 8-Port unmanaged Ethernet Switch
>>Protocol Standards
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
>>Interfaces
Fiber optic interface: 2 100Base-FX port (optional SC, ST, FC)
RJ45 port: 6 10/100Base-TX ports, auto-detection, full/half duplex, auto-MDI/MDI-X
>>Switching Performance
Forwarding rate: 148810pps
Transmission mode: store and forward
MAC address size: 2K
Cache size: 1Mb
Backplane bandwidth: 2G
>>Power consumption
300mA@24Vmax
>>LED indicator light

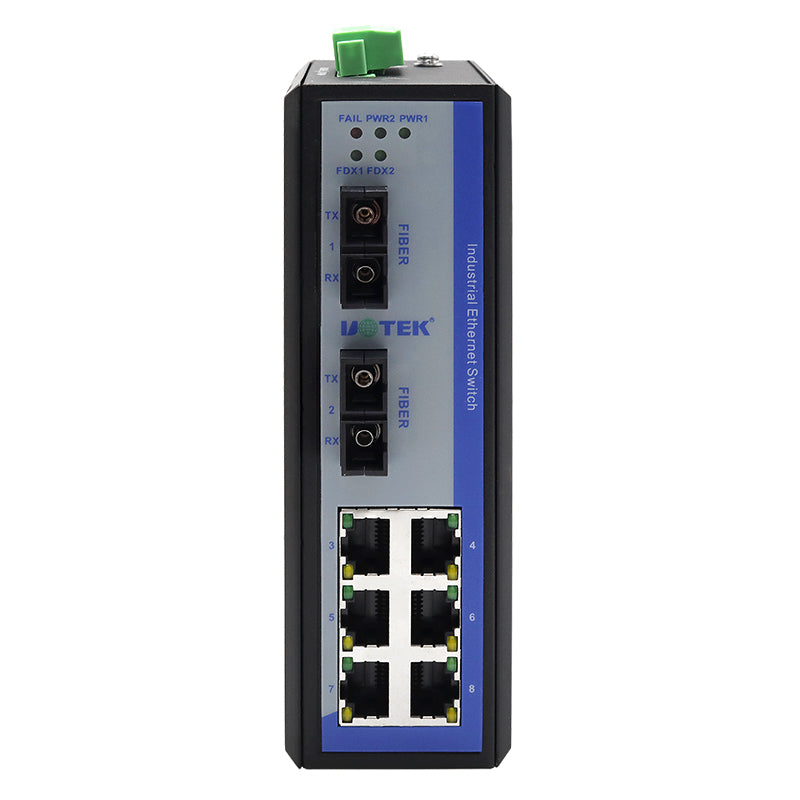

Power indicator, power failure light, fiber optic indicator, RJ-45 indicator
Alarm contacts: 1 relay output, normally open and normally closed capacity 1A @ 24VDC
>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC), Dual power redundant input

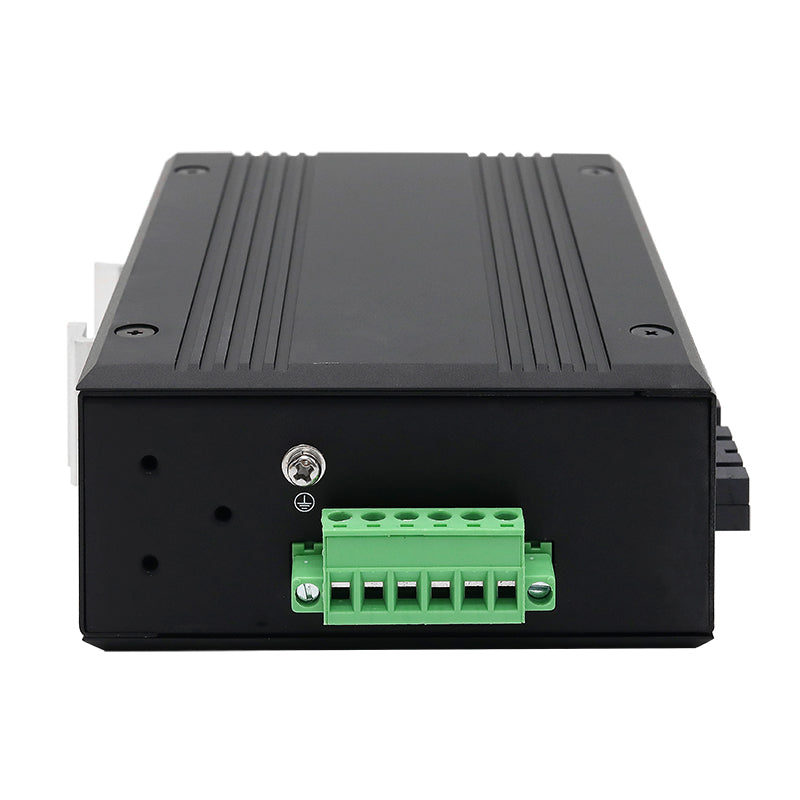

Interface terminal: 1 pluggable 6-pin terminal block
Overload protection: Support
Reverse connection protection: Support
>>Mechanical Characteristics
IP protection level: IP40

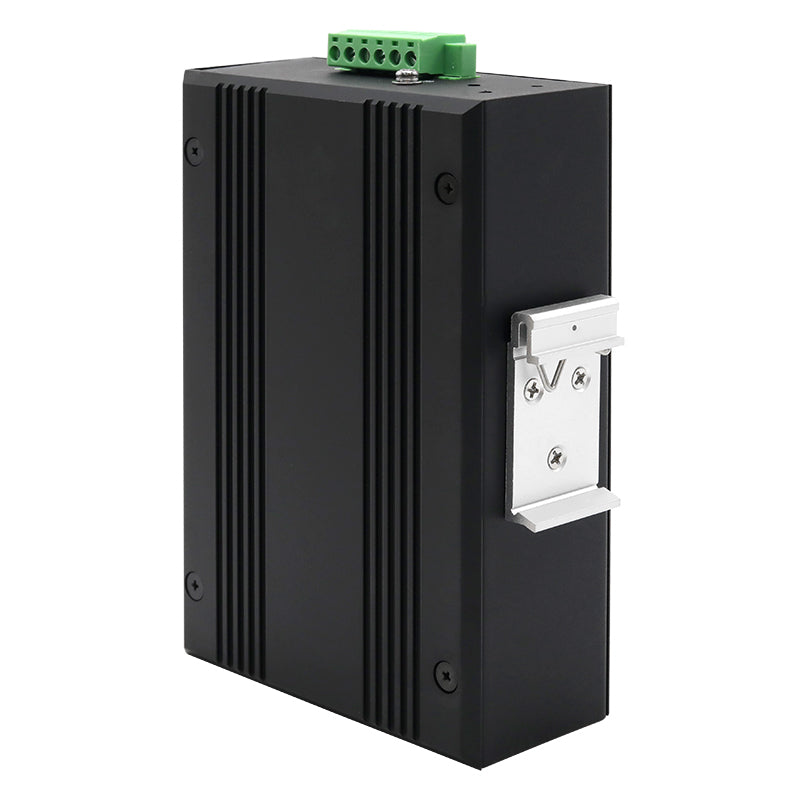

Installation: DIN-Rail /WALL Mounted
>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Weight: 762g
Packaging dimension: 250mm x 205mm x 55mm
>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)
>>Industrial Standards
EMI:
FCC Part 15 Subpart B classA,EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
